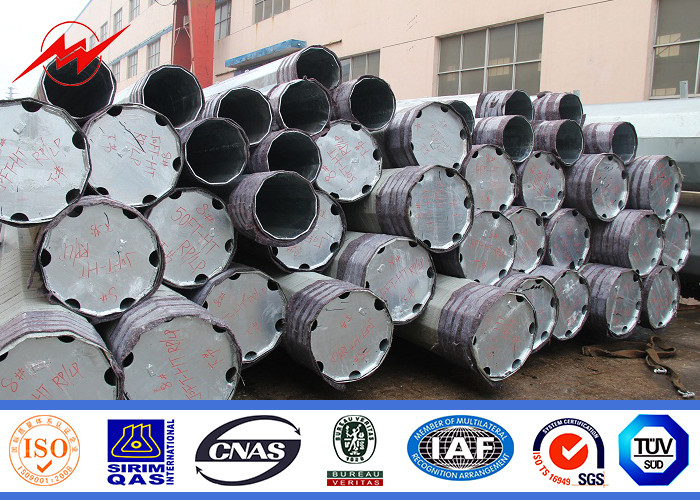

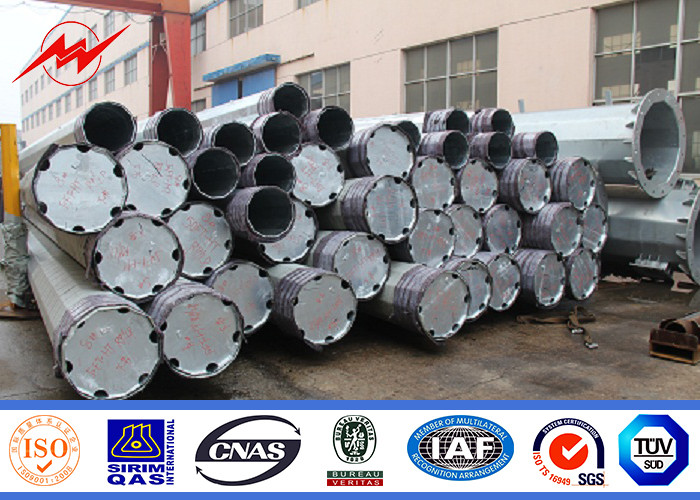

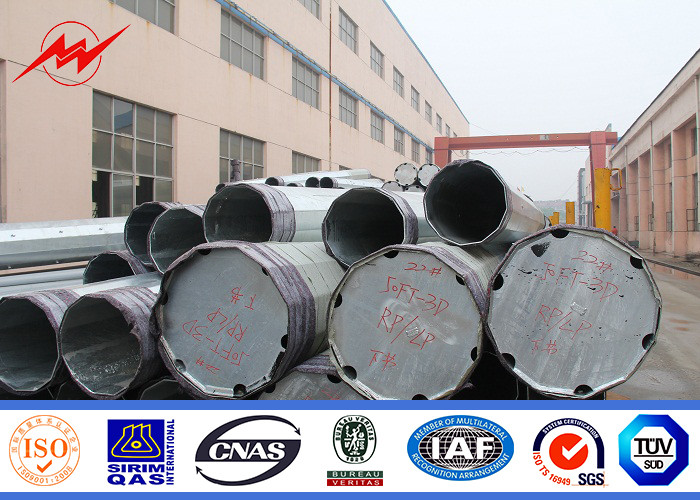

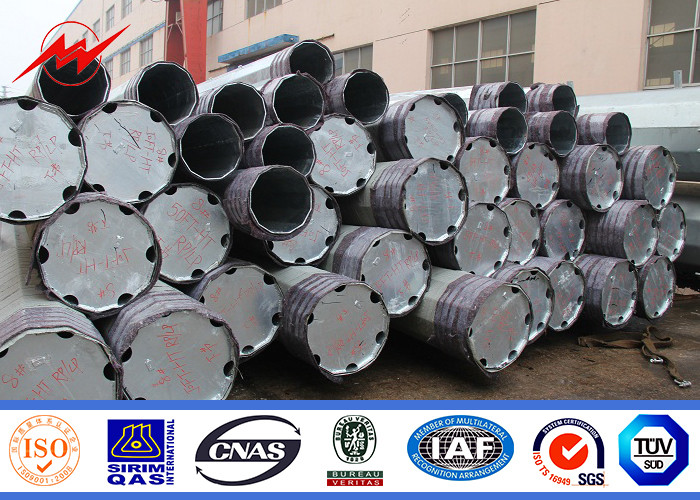

3MM 12M 20KN Steel Utility Pole for Electrical Power Transmission
Description:
Our Transmission Pole is designed for the high voltage power transmission and low voltage power transmission.
Designed and manufacutred for durability, corrosion resistance and visual appeal.
Specifications:
| Torlance of the dimenstion | +- 2% |
| Power | 10 KV ~550 KV |
| Safety Factor |
Safety factor for conducting wine : 8 |
| Design Load in Kg | 300~ 1000 Kg appliced to 50cm from the to pole |
| Marks | Nane palte through rivert or glue ,engrave ,emboss as per customer requirement |
| Surface treatment |
Hot dip galvanized Following ASTM A 123, |
| Joint of Poles | Insert mode,innerflange mode,face to face joint mode |
| Design of pole | Against earthquake of 8 grade |
| Wind Speed | 160 Km/Hour . 30 m /s |
| Minimum yield strength | 355 mpa |
| Minimum ultimate tensile strength | 490 mpa |
| Length of per section | Within 14m once forming without slip joint |
| Welding |
We has past flaw testing.Internal and external double welding makes |
| Thickness | 1 mm to 30 mm |
| Production Process |
Rew material test → Cuttingj →Molding or bending → |
| Packages |
Our poles as normal cover by Mat or straw bale at the top and bottom , |
Installation
-Remove all the equipment on the pole during Assembly.
-Circle a sling around th epole shaft of each section.
-Fix the sling on top section to one pulley block.
-The sling on the bottom section is tightly fixed and fixed at the center of gravity.
-Make the steel pole vertical by tighten the sling of the top section.
-Fix the steel pole.
-Remove the sling.
