Hot Dip Galvanized Steel Power Pole with 15 Years Warranty and 160 Km/Hour Wind Speed for Electricity Distribution

1pcs
MOQ
Có thể đàm phán
giá bán
Hot Dip Galvanized Steel Power Pole with 15 Years Warranty and 160 Km/Hour Wind Speed for Electricity Distribution
Đặc trưng Bộ sưu tập Mô tả sản phẩm Yêu cầu báo giá
Đặc trưng
Thông số kỹ thuật
Vật liệu: Thép, GR65, Với cường độ năng suất tối thiểu 460mpa
Màu sắc: Tùy chỉnh
Xử lý bề mặt: Nóng hông mạ kẽm
tiêu chuẩn mạ điện: ASTMA123
Bảo hành: 15 năm
Điện áp định mức: 10-550V
Làm nổi bật:

15 Years Warranty Steel Power Pole

,

160 Km/Hour Wind Speed Electricity Distribution Pole

,

Hot Dip Galvanized Galvanized Steel Pole

Thông tin cơ bản
Nguồn gốc: Jiangsu, Trung Quốc
Hàng hiệu: Milky Way
Chứng nhận: ISO9001/BV/
Số mô hình: Cột điện thép
Thanh toán
chi tiết đóng gói: như yêu cầu của khách hàng
Thời gian giao hàng: 20 ngày làm việc sau khi nhận được khoản thanh toán của bạn
Khả năng cung cấp: 300 chiếc mỗi ngày
Mô tả sản phẩm
Steel Power Pole for Electricity Distribution with Hot Dip Galvanization and Customizable Color Option
Hot Dip Galvanised Steel Power Pole 70FT 94FT With Minimum Yield Strength 460mpa
Specifications
Application Electricity distribution
Shape Conoid, Multi-pyramidal, Columniform, polygonal or conical
Material Usually Q345B/A572, minimum yield strength>=345n/mm2
Q235B/A36, minimum yield strength>=235n/mm2
As well as Hot rolled coil from Q460, ASTM573 GR65, GR50, SS400, SS490
Tolerance of dimension +- 2%
Power 10 KV ~550 KV
Safety Factor Safety factor for conducting wire: 8
Safety factor for grounding wire: 8
Design Load in Kg 300~1000 Kg applied to 50cm from the top pole
Surface treatment Hot dip galvanized Following ASTM A 123, color polyester powder or any other standard by client required
Joint of Poles Insert mode, inner flange mode, face to face joint mode
Wind Speed 160 Km/Hour (30 m/s)
Standard ISO 9001
Welding We have passed flaw testing. Internal and external double welding makes the welding beautiful in shape.
Welding Standard: AWS (American Welding Society) D 1.1
Galvanization Hot dip galvanization with thickness of 80-100µm average in accordance with Chinese standard GB/T 13912-2002 or American standard ASTM A123, ISO: 2626-1985
Thickness 1 mm to 30 mm
Production Process Raw material test → Cutting → Molding or bending → Welding (longitudinal) → Dimension verify → Flange welding → Hole drilling → Calibration → Deburr → Galvanization or powder coating, painting → Recalibration → Thread → Packages

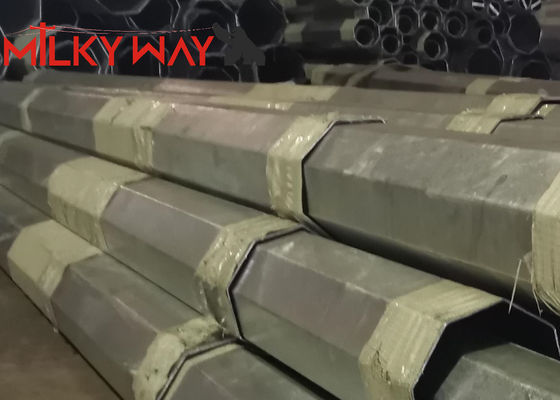

Packages Our poles are normally covered by Mat or straw bale at the top and bottom, but can also follow client requirements. Each 40HC or OT loading capacity will be calculated based on the client's actual specifications and data.
Hot Dip Galvanized Steel Power Pole with 15 Years Warranty and 160 Km/Hour Wind Speed for Electricity Distribution 0
Certification
Hot Dip Galvanized Steel Power Pole with 15 Years Warranty and 160 Km/Hour Wind Speed for Electricity Distribution 1
Our Company

Established in 1991, Jiangsu Milky Way Steel Poles is located in Wuxi, East of China, near one of the largest sea ports of China, Shanghai Port. Our products have been widely used in power transmission, signal transmission and lighting for street, road, square, palaestra, and more.

We have extensive export experience. Since our first overseas order from Pakistan in 1991 of 132 KV transmission poles, our products have been delivered to more than 70 countries and areas, including America, Australia, Russia, Germany, Spain, Philippines, Malaysia, Dominica, Congo, Togo and Guinea.
