4-8 meters street light pole with Customizable Length and Shape for Different Applications

Một chiếc 40HQ
MOQ
Có thể đàm phán
giá bán
4-8 meters street light pole with Customizable Length and Shape for Different Applications
Đặc trưng Bộ sưu tập Mô tả sản phẩm Yêu cầu báo giá
Đặc trưng
Thông số kỹ thuật
Dung sai kích thước: +-2%
Sức đề kháng gió: 3-500km/h
Vật liệu: GR50 GR65 S500 S355
Chiều cao: Cực ánh sáng đường phố 4-8 mét
hàn: Hàn xác nhận với tiêu chuẩn hàn quốc tế của CWB
Lớp phủ bột: Tranh bột polyester tinh khiết, màu sắc là tùy chọn
Thiết kế: chống lại trận động đất cấp 8
Tên sản phẩm: Cực ánh sáng đường phố 4-8 mét với chiều dài và hình dạng có thể tùy chỉnh cho các ứng dụng khác nha
Thông tin cơ bản
Nguồn gốc: Trung Quốc
Hàng hiệu: Milky Way
Chứng nhận: ISO//BV
Số mô hình: Cực ánh sáng đường phố 4-8 mét với chiều dài và hình dạng có thể tùy chỉnh cho các ứng dụng khác nha
Thanh toán
chi tiết đóng gói: Theo yêu cầu của khách hàng
Thời gian giao hàng: thường là 2 tuần sau khi xác nhận
Điều khoản thanh toán: T/t
Khả năng cung cấp: 300 cái cực mỗi ngày
Mô tả sản phẩm





Specification:



Specification: 4-8 meters street light pole
Type street light pole
Shape conical, hexagonal and octagonal
Material Usually Q345B/A572,minimum yield strength>=345n/mm2
Q235B/A36,minimum yield strength>=235n/mm2
As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490ST52
Torlance of dimenstion -0.02
Design Load in Kg 300~ 1000 Kg appliced to 50cm from the to pole
Surface treatment Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required.
Standard Octagonal Conical tapered column
Certified by SIRIM QAS INTERNATIONAL.
Approved by JABATAN KERJA RAYA MALAYSIA.
Conforms to Standard:
Pole design : BS EN 40
Material : BS EN 10025 S275 / JIS G3101 SS400
Welding : BS 5135
Galvanizing : BS 729 / ISO 1461 ASTM A 123
Length of per section Within 14m once forming without slip joint.
high mast pole suit for city square,wharf,stadium
Option of high mast pole Height from 20m to 35m
Flange mounted or planted type
Production Process of high mast pole Raw material test → Cutting →Molding or bending →Welidng (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration →Deburr→Galvanization or powder coating ,painting →Recalibration→Thread →Packages

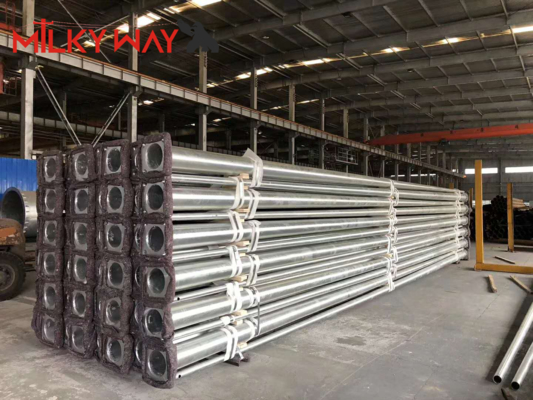

4-8 meters street light pole with Customizable Length and Shape for Different Applications 0





·Material :SS400, Q235,A36 (yield strength: 235Pa 24kg/mm2 Tensile Strength: 375-460Pa 38-47kg/mm2

(Other Material is Available on Request)

·Hot Dip Galvanized (≥86um)

·Any Color Polyester Powder Coated (≥100 um)

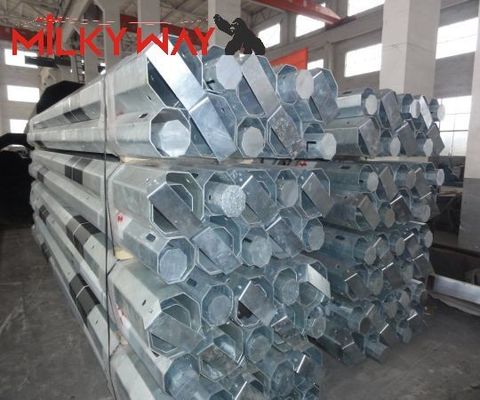

·Taper Conical , Octagonal, Polygon Section

·With demounted bracket design,easy loaded,install,and maintenance

·Theftproof slide lock

·Category: Street lighting pole, Garden Lighting pole Solar Street lighting pole, High Mast,highmast light poles,







4-8 meters street light pole with Customizable Length and Shape for Different Applications 1
