60FT 70FT Single or Double Crossarm Steel Power Pole with Customizable Dimensions

Một chiếc 40HQ
MOQ
Có thể đàm phán
giá bán
60FT 70FT Single or Double Crossarm Steel Power Pole with Customizable Dimensions
Đặc trưng Bộ sưu tập Mô tả sản phẩm Yêu cầu báo giá
Đặc trưng
Thông số kỹ thuật
Dung sai kích thước: +-2%
Sức đề kháng gió: 3-500km/h
Vật liệu: GR50 GR65 S500 S355
Chiều cao: 69kV 16m
hàn: Hàn xác nhận với tiêu chuẩn hàn quốc tế của CWB
Lớp phủ bột: Tranh bột polyester tinh khiết, màu sắc là tùy chọn
Thiết kế: chống lại trận động đất cấp 8
Tên sản phẩm: 60ft 70ft Single Crossarm Steel Power cực với kích thước có thể tùy chỉnh
Thông tin cơ bản
Nguồn gốc: Trung Quốc
Hàng hiệu: Milky Way
Chứng nhận: ISO//BV
Số mô hình: 60ft 70ft Single Crossarm Steel Power cực với kích thước có thể tùy chỉnh
Thanh toán
chi tiết đóng gói: Theo yêu cầu của khách hàng
Thời gian giao hàng: thường là 2 tuần sau khi xác nhận
Điều khoản thanh toán: T/t
Khả năng cung cấp: 300 cái cực mỗi ngày
Mô tả sản phẩm





Product Description


Features:



Pole’s height All available
Type Straight Pole ,Tensile Pole ,Turn Pole,etc
Shape of pole Conical, Round, Polygonal---Octagonal, Dodecagonal, Hexadecagonal, etc
Crossarm Single or double crossarm, dimension as per customers’ requirement
Material

Steel materials conform to ASTM A36,

Q235 equivalent to SS400, S235JO. Q345 equivalent to S355JR,Grade 50

Q460 equivalent to S460, Grade 65

Wall thickness ≥2.5mm
Once forming 13m without joint



Welding

Welding complies with CSA and AWS, AWS D1.1 standard.

The welders have got corresponding certificate after testing and inspection.

Joint Joint with insert mode, flange mode.
Base plate mounted Base plate is square or round with slotted holes for anchor bolt and dimension as per client’s requirement.
Galvanizing Hot dip galvanization in accordance with Chinese standard GB/T 13912-2002 orAmerican standard ASTM A123.
Voltage 10KV~550KV
Certificates ISO9001-2008 , AAA credit rating, etc
Protection Anti-corrosion and rust free – suitable for coastal area, desert, oil field and industrial area





Specification

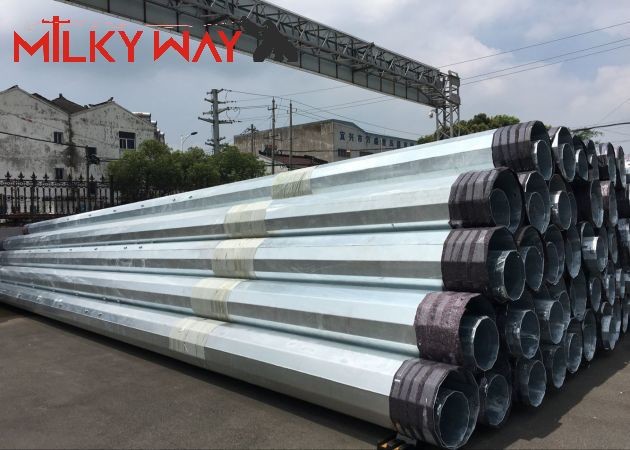

60FT 70FT Single or Double Crossarm Steel Power Pole with Customizable Dimensions 0

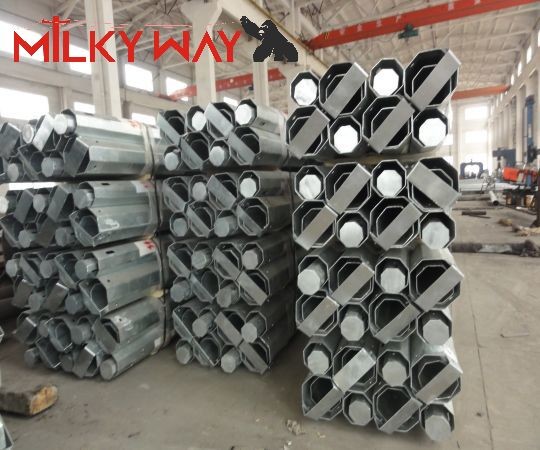

Packing & shipping





We use sack package the poles or straw at the pole top and bottom which is our normal package. We also use wood between the poles but cost just little higher than normal package. We normally use 40HQ container and our Port limit weight for 40HQ is 26Ton.

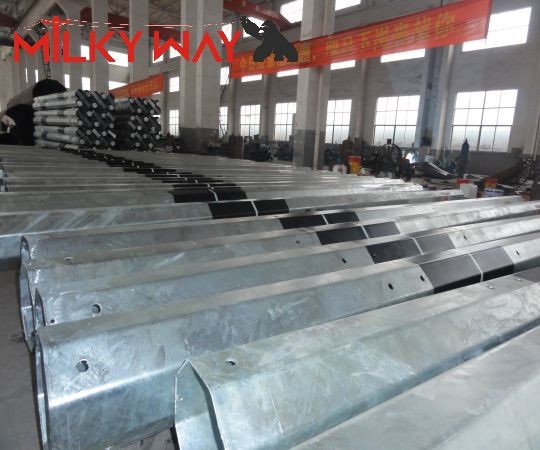

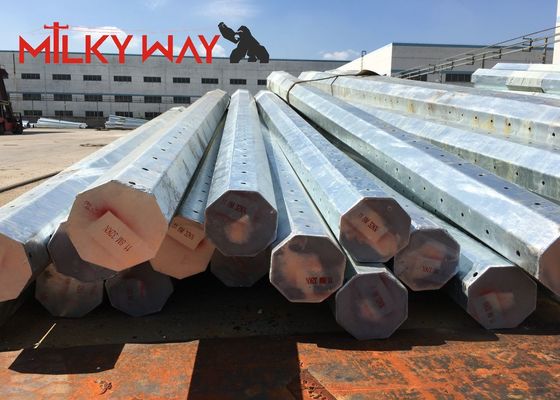

60FT 70FT Single or Double Crossarm Steel Power Pole with Customizable Dimensions 1

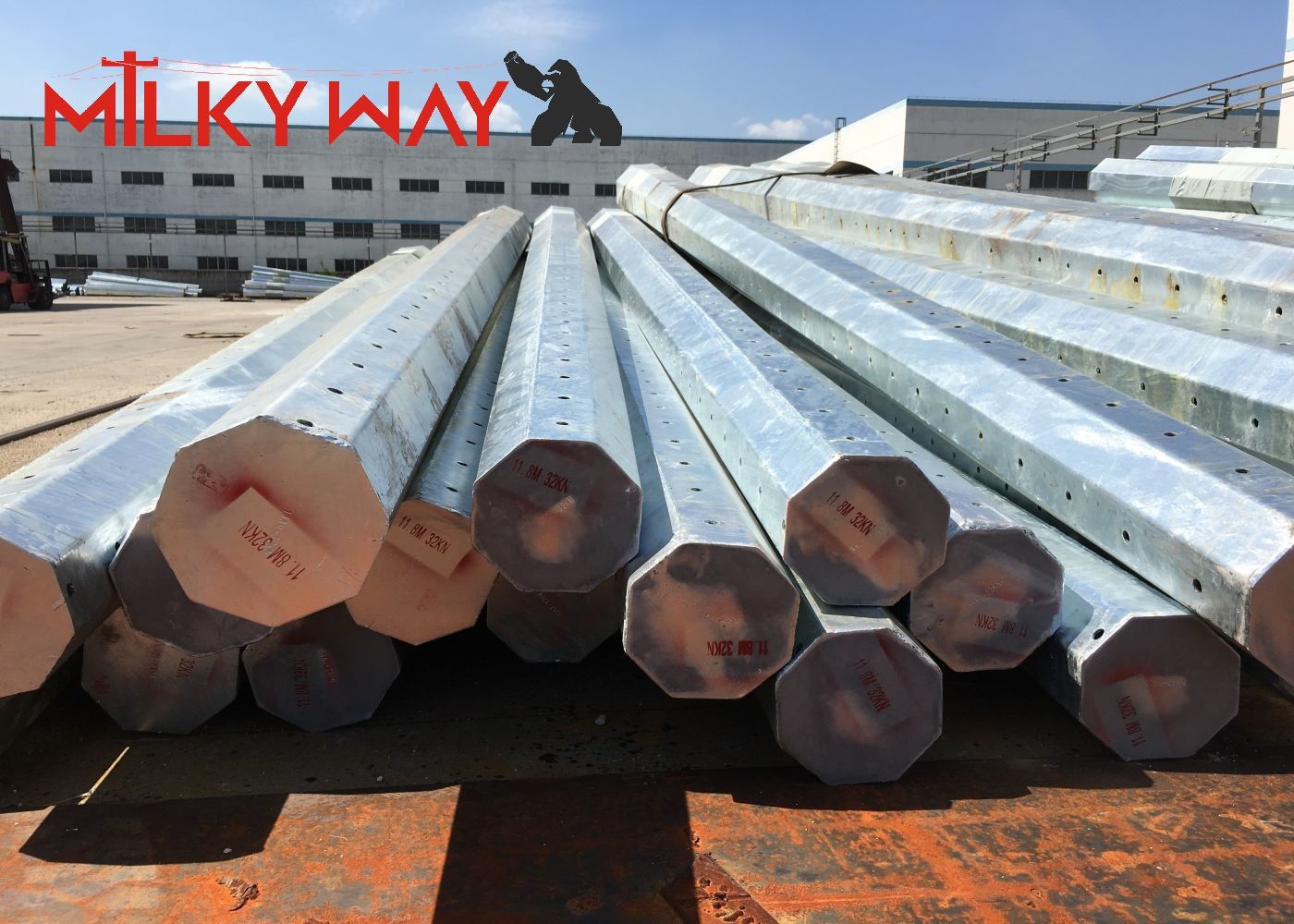

60FT 70FT Single or Double Crossarm Steel Power Pole with Customizable Dimensions 2
