| Feature | Specification |
|---|---|
| Application | Electricity distribution |
| Shape | Conoid, Multi-pyramidal, Columniform, Polygonal or Conical |
| Material |
Q345B/A572 (minimum yield strength ≥345N/mm²) Q235B/A36 (minimum yield strength ≥235N/mm²) Also available: Q460, ASTM573 GR65, GR50, SS400, SS490, ST52 |
| Dimension Tolerance | ±2% |
| Power Capacity | 10KV ~550KV |
| Safety Factors |
Conducting wire: 8 Grounding wire: 8 |
| Design Load | 300~1000kg applied 50cm from pole top |
| Surface Treatment | Hot dip galvanized (ASTM A123), color polyester powder, or custom requirements |

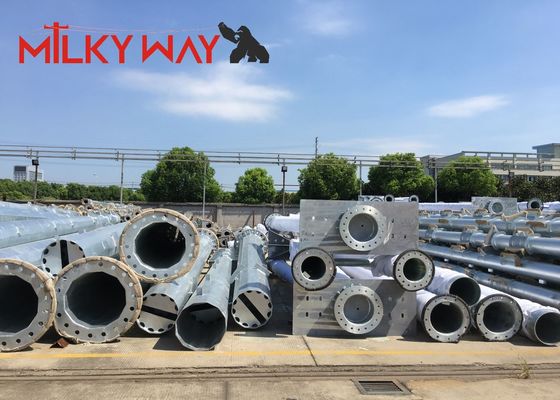

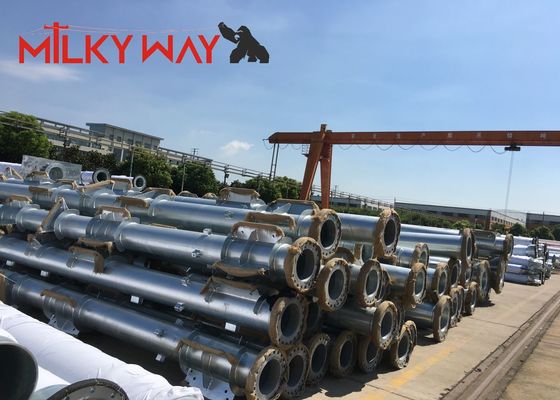

| Joint Types | Insert mode, inner flange mode, face to face joint mode |
| Seismic Rating | Designed against 8 grade earthquakes |
| Wind Resistance | 160 km/h (30 m/s) |
| Material Strength |
Minimum yield: 355 MPa Minimum tensile: 490 MPa Maximum tensile: 620 MPa |
| Standard | ISO 9001 |
| Section Length | Up to 14m without slip joint |
| Welding | Double welding (internal/external) to AWS D1.1 standard, passed flaw testing |
| Thickness Range | 1mm to 30mm |
