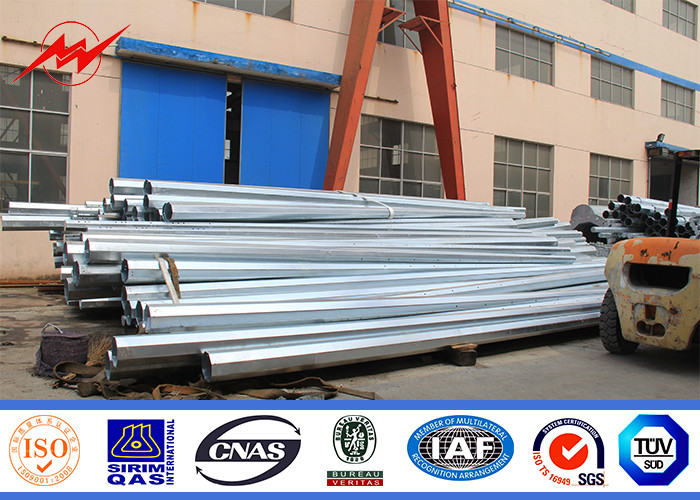

Steel Utility Galvanized Steel Transmission Poles , Shock Resistance Power Line Pole
galvanized light pole
,power distribution poles

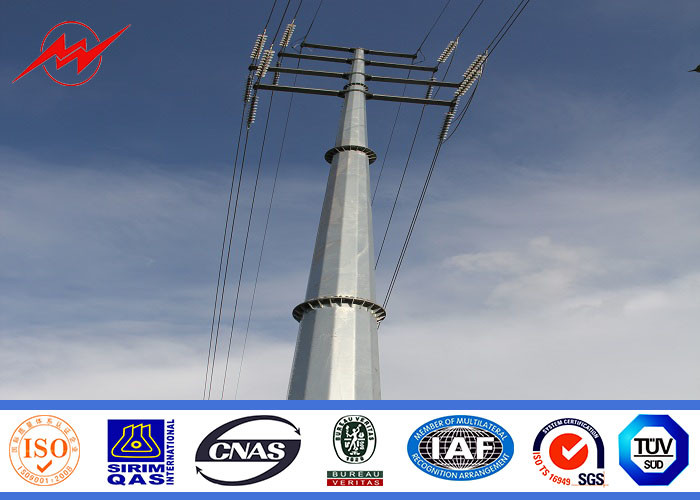

Steel Utility Galvanized Steel Pole For 33kv Power Transmission Line
Specification:
1) Steel materials conform to ASTM A36 with Q235(S235,SS400),Q345(S355JR), Q460,etc
2) Welding: Welding complies with CSA and AWS, AWS D1.1 standard.The welders have got corresponding certificate after testing and inspection.
3) Finish: Hot-dip galvanized in accordance with ASTM A123.
4) Pole Height: All available

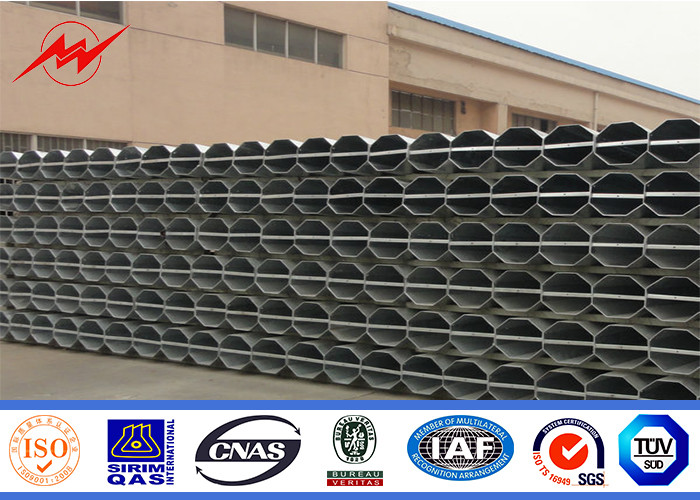

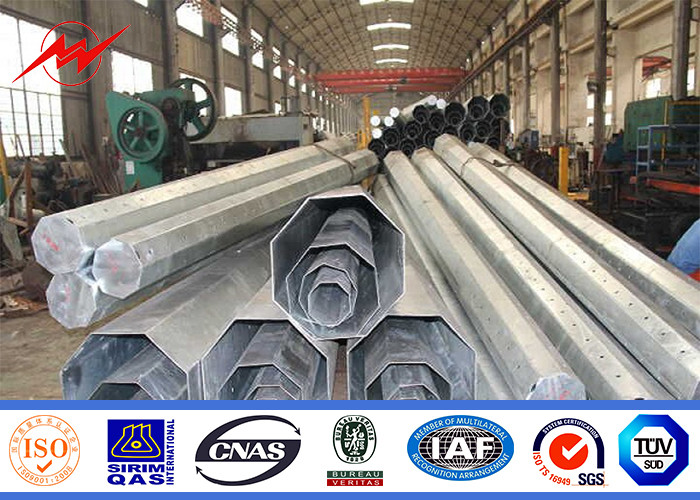

5) Pole shape: Conical, Round, Polygonal---Octagonal, Dodecagonal, Hexadecagonal, etc
6) Type: Straight Pole ,Tensile Pole ,Turn Pole (Double-loop corner pole, Single or double loops/circuit pole, single or double tensile/terminal/straight pole, etc)
7) Surface hot-dip-galvanized & painting
8) Resistant: against earthquake of 8.8 grade. Wind speed as design.
9) Quality Standard: ISO9001:2000,AAA credit rating
10) Easy install and maintenance
11) Packages: Normally covered by sack or as customer’s requirement.
12) Voltage:10-550KV
|
Material: |
high quality Q345 hot rolled steel |
|
Mounting Height: |
3-30m or according to the requirements of customers |
|
Shape of pole: |
Round,conical,octagonal,square,mid hinged,polygonal shafts are made of steel sheet that folded into required shape and welded longitudinally by automaticarc welding machine
|
|
Brackets: |
Single or double brackets are in the shape and dimension as per customers requirement |
|
Base plate: |
Base plate is square or round in shape with slotted holes for anchor bolt and dimension as per customers requirement
|
|
Groung mounted: |
The length buried underground as per customers requirement
|
|
Galvanizing:
|
Hot dip galvanization with thickness of 80-100µm average
|
|
Powder coating: |
Pure polyester powder painting, color is optional |
Features & Advantage
1 High intensity, high resistance of shock or vibration
2 High efficiency up to 85%, 110lm/watt
3 Low illumination attenuation, 3% - 5% degradation/1kh
4 Long lifespan: 50,000hrs, 25 times more than normal energy-saving lamps.
5 Excellent heat dispersion, and low power consumption.
6 Easy installation, free maintanence.
7 High Power Factor: 0.85
8 No UV radiation
9 No mercury or other inorganics
10 Constant current to guarantee long life
1. Quick reply within 24 hours.
2. Convenient and smooth communication.
3. Detailed and professional specifications and guidances of products.
4. Lighting solutions by professional technician.
5. Fast &Cheap Delivery.
6. Free Light study.
7. Various Certificates.
8. Product Update.
9. OEM&ODM available.
