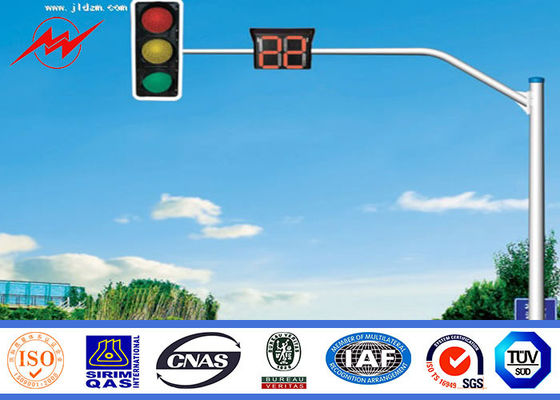

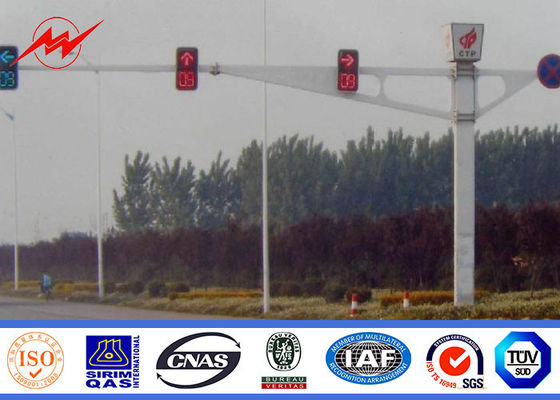

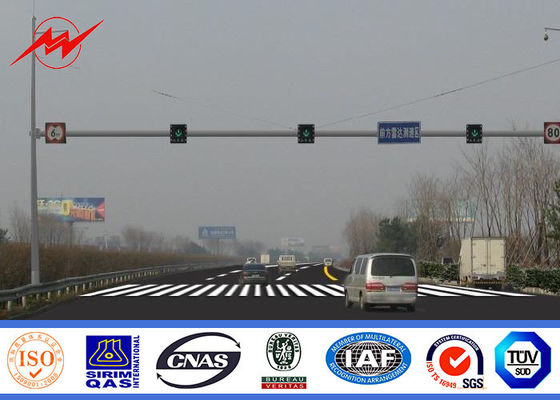

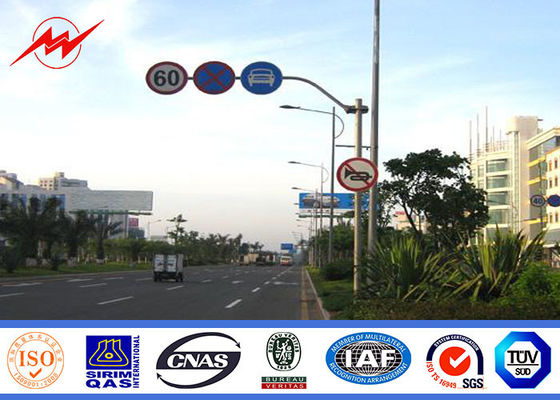

Octagonal Steel Street Lighting Poles Traffic Light Signals With Powder Coating
driveway light poles
,highway light pole
Steel Octagonal Powder Coating Traffic Light Signals for Street Signal Pole
Descripition of material:
The material we use is from Baosteel.According to the different strength request,we can use the Q235,Q345 and GR65.The strength of GR 65 is best and Q235 is lowest.
For the street light pole,we usually choose Q235 and Q345.
The good quality of steel material guarantee the good quality of the finished steel pole.
Specification
|
Height |
From 3 meter to 15 meter |
|
Suit for |
Airport, seaport, roadway, etc |
|
Shape |
Round conical; Octagonal tapered; Straight square; Tubular stepped; Shafts are made of steel sheet that folded into required shape and welded longitudinally by automaticarc welding machine |
|
Material |
Q235B or Q345 by , same grade EN44 .SS400 |
|
Tolerance of the dimension |
According to client’s requirement. |
|
Surface treatment |
Hot dip galvanized Following ASTM A 123, color polyester powder or any other standard by client required. |
|
Joint of Poles |
Slip joint, flanged connected |
|
Base plate mounted |
Base plate is square or round in shape with slotted holes for anchor bolt and dimension as per customers requirement. |
|
Wind Resistance |
Aganist wind pressure of 160Km/h |
|
Certificates |
ISO 9001:2008 |
|
Length of per section |
Within 14 meter once forming |
|
Welding Standard |
AWS (American Welding Society ) D 1.1 |
|
Thickness |
1 mm to 36mm |
|
Production Process |
Raw material test → Cutting →bending →Welding (longitudinal ) →Dimension verify →Flange welding →Hole drilling → sample assemble → surface clean→ Galvanization or powder coating , painting →Recalibration →Packages |
|
Packages |
Packing with plastic paper or according to client’s request. |
Company Introduction:
JiangSu Milky Way Steel Poles Co., Ltd.was established in 1988, is located in Yixing City, Jiangsu Province, Wan Shi Town, covering an area of 35,000 square meters, annual output value reached 200 million . We have 20 years experience in design and production. Our main products are power pole, communication towers, street lighting poles, steel bracket and so on. The company has strong technical force, advanced production equipment, perfect quality management system, product quality has reached international advanced level.
After 20 years of development, our company products are exported to overseas. Pakistan, Germany, Nigeria, Singapore, New Zealand, India, the Philippines, Australia and so on, we have shared a broad market.Our products are well knowed. Now the capataity of Exports has taken 40% of company sales, which made us become one of the leading export enterprises in china.
