11M 300DaN Steel Utility Pole 3.5mm thickness Q345 material for 69kv 100meters Distribution Power
Quick Description
Steel poles are an aesthetic alternative to traditional towers and offer far greater corrosion resilience due to the self-cleaning nature of a tapered structure. Steel poles can be designed for use to be installed in lieu of towers without needing to compromise on height and span lengths and offer the advantages of a much smaller easement and greater public acceptance.
Key Benefits
Lightest poles across the full range of length and tip loads
Impervious to insects and rot
Non-combustible with proven bush fire performance
Tapered design enables self-cleaning during rainfall
Fully recyclable
Self-bonding
PLS Pole data available
Technical Data Sheet(F=10KN)
| Dimension | 10m | 11m | 11.8m | 13m | 14m | 16m | 18m |
| DI(mm) | 180 | 180 | 180 | 180 | 180 | 180 | 180 |
| D2(mm) | 360 | 380 | 400 | 400 | 410 | 445 | 475 |
| T(mm) | 3 | 3 | 3 | 3 | 3.5 | 3.75 | 3.75 |
| h(m) | 1.6 | 1.8 | 1.9 | 2.1 | 2.3 | 2.6 | 3 |
More details and load,feel free to call me.
Available Foundation Types
Direct Embedment
Anchor Bolt/Base Plate
Vibratory Steel Caisson
Available Finishes
Galvanized per ASTM A123
Paint over galvanized,paint over black steel
Powder Coating
Product Process
Standard Features of in-ground and base plate mounted
In-Ground Mounted:
12-sided pole shaft
Welded top cap
Mounting holes (to your specification if required)
Identification plate
M12 earth point 250mm above the nominal ground line
M24 nut 250mm above the nominal ground line (to assist lifting)
Additional in-ground corrosion protection 200mm above to 400mm below the nominal ground line
Anti-sink straps
Hot dip galvanised finish
Base Plate Mounted:
12-sided pole shaft (40kN to 80kN)
16-sided pole shaft (100kN & 120kN)
Welded top cap
Mounting holes (to your specification if required)
Identification plate
M12 earth point 250mm above the pole base
Two lifting gussets on the base plate
Anchor bolts, templates, nuts & washers
Hot dip galvanised finish

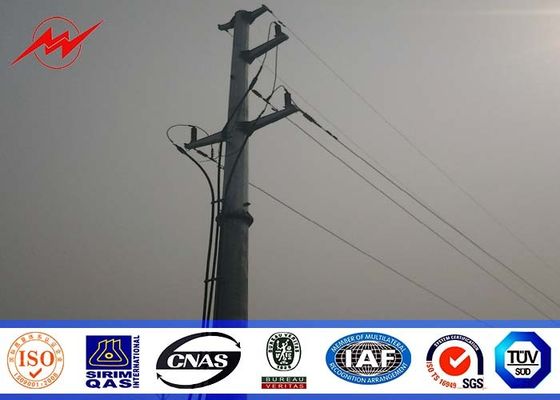

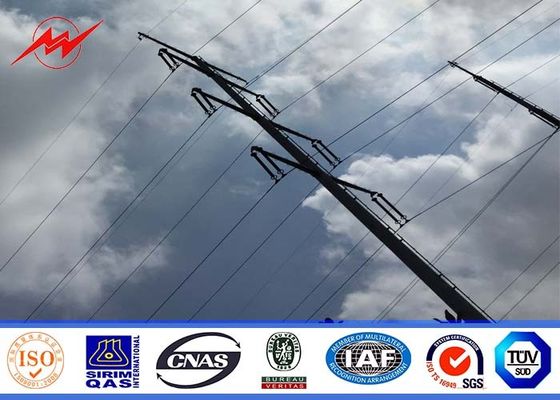

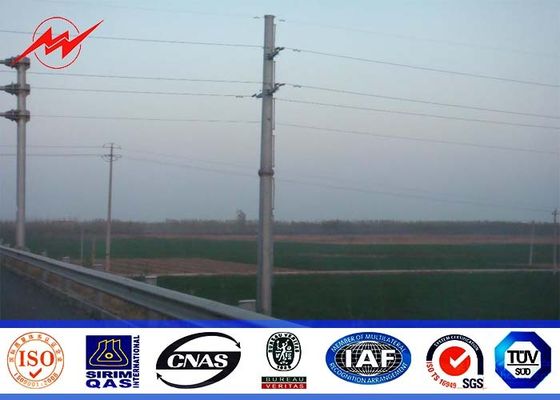

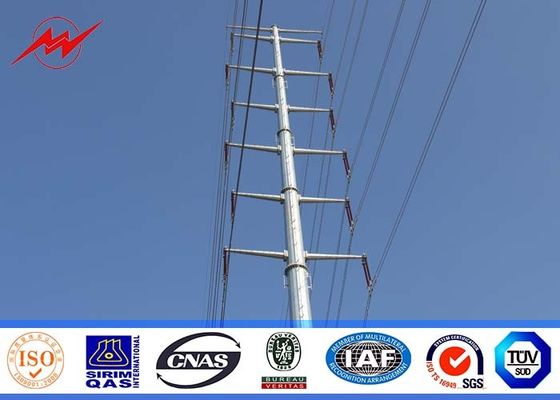

More Pictures
The information to inquiry or purchase
-Steel pole height and force
-Cross arm type and length,the position to install in the steel pole
-The method to fix the cross arm(use bolt to connect or use one or two template to weld in the steel pole to install the cross arm)
-Safety factor of the steel pole
-Wind speed
-Type of climbing rung
-Destination port
-Other.
