Differernt sections 22M Round High Mast Pole with operation platform ladder protection

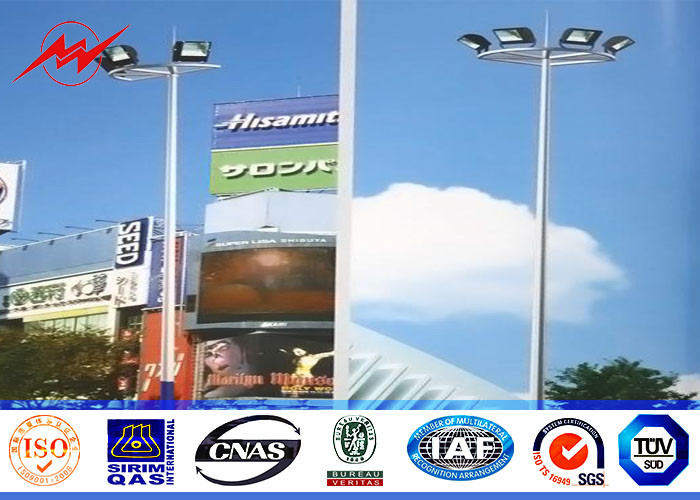

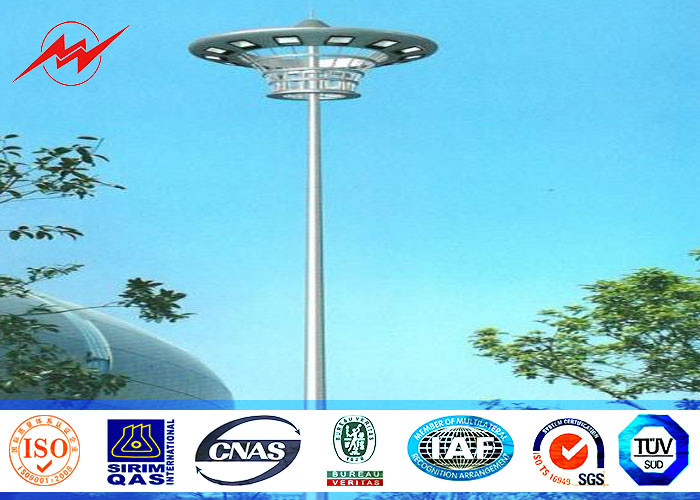

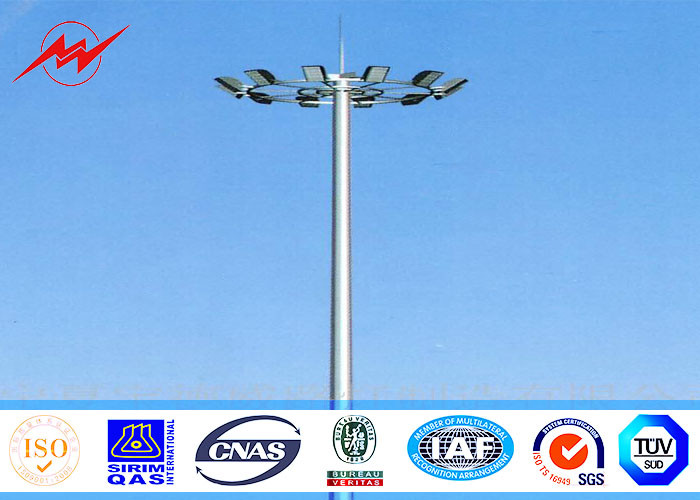

The High Mast series is specifically designed for projects with specifc lux requirements. Lighting masts are available from 16 metres through to 50 metres high. The high mast can be applied into: High way intersections, Car park, Loading areas, Shopping areas, Square, Sea Ports, Airports and Recreational centers.
Quick Product Description-High Mast Lighting Pole
| Item | 22 MTR |
|---|---|
| Material Construction | Q345(Gr50) |
| No. of Longitudinal Welds | Single/Double |
| Cross section of mast in polygon((No. of Sides) | Octagonal,dodecagon,hexadecagon |
| Thickness | 4mm,6mm,8mm,10mm or customized design |
| Individual Section’s Length | 11375mm |
| Base & Top dia (OAF) | 450/200mm |
| Thickness of galvanization(Average) | 86 Microns |
| Size of opening door at base | 360 x 1400 mm |
| Size of base plate diameter | 650 mm |
| Size of base plate thickness | 32 mm |
| Number of foundation bolts | 12 |
| Bolt diameter | 28 mm |
ACCESSORIES
IMPORTANT TECHNICAL FEATURES
FIXED TYPE HEAD FRAME :
Designed with larger Dia. Non corrosive aluminum pulley system for longer life and perfect balancing.
WINCHES :
Winch designed with gear ration 53:1 and without break of clutches. These are self lubricated for sustained trouble free life.
FINISH :
The complete mast with component is fully hot dip galvanized for longer life.

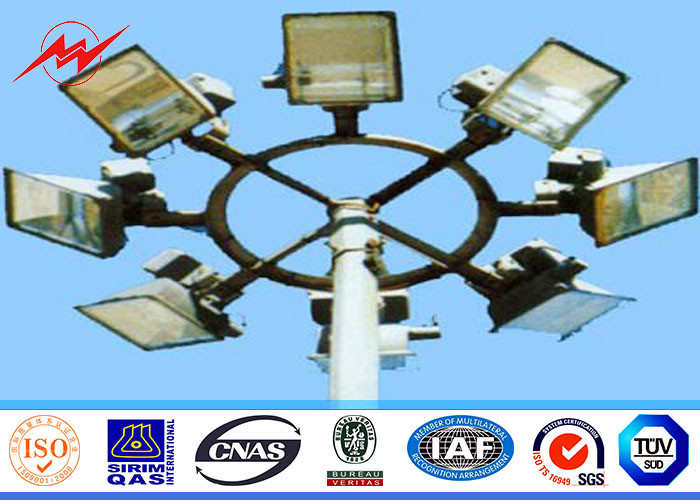

LANTERN CARRIAGE :
We specialize in custom built design, standard lighting design and various types and shapes. The lantern carriage is supported with three numbers flexible 6 sq. mm. S.S. wire ropes from the distributors that can be elevated/lowered electrically and mechanically.
Rasing System
Application
Truck and bus terminals
railyards
ship docks
ferry terminals
airports
prisons
industrial and commercial sites
international borders
parking lots
