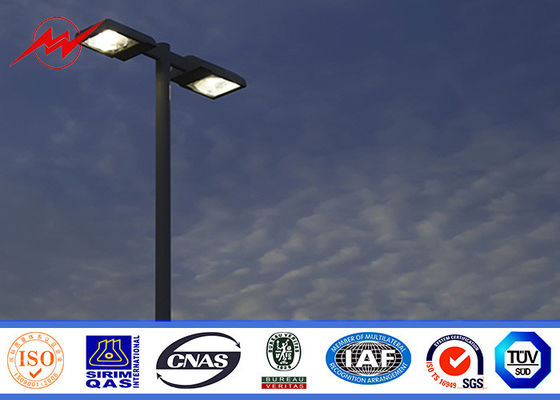

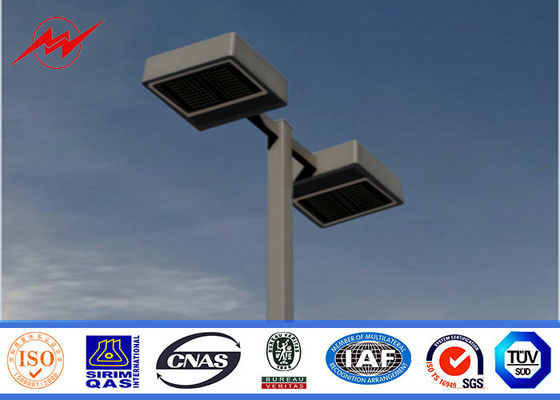

12mm 4mm wall thickness double bracket Galvanized Steel Pole for area sports lighting
Quick Details for Galvanized Steel Pole
| Infrastructure-Light Pole | |||
|---|---|---|---|
| Height(f) | Reach(f) | Anchor Bolt Size | Description |
| 30 | 8 | 1"x36" | Single Pole Galv.Finish |
| 35 | 8 | 1"x36" | Single Pole Galv.Finish |
| 43 | 8 | 1"x36" | Single Pole Galv.Finish |
| 43 | 12 | 1"x36" | Single Pole Galv.Finish |
| 50 | 12 | 1"x36" | Single Pole Galv.Finish |
| 30 | 8/8 | 1"x36" | Double Pole Galv.Finish |
| 30 | 12/12 | 1"x36" | Double Pole Galv.Finish |
| 43 | 8/8 | 1"x36" | Double Pole Galv.Finish |
| 43 | 12/12 | 1"x36" | Double Pole Galv.Finish |
Qucik Introduction
Glavanized Steel Pole is a lighting application solution achieved by fundamental design and ideally suited to residential street lighting and commercial lighting purposes. The Avenue range’s standard maximum height is 12m with a standard maximum outreach of 4.5m (tapered round) and 3m (tapered octagonal), however different heights and outreaches can be designed.
Pole Design
Parking Lot Light Pole Hand Hole Cover
Sentry Utility Security Cover
Features
3/16” steel plate with added inerior reinforce
Highest electrical access security
Planted security fastneers
Simple installation
Available in most pole manufactures sizes
Shapes:Rectangle,oval,ovalconcave
FINISHING
Shaft, Base plate, Arm Bracket and other accessories are hot dip galvanized according to BS EN 1461 and its recent revisions, the minimum average coating thickness is according to BS EN 1461, or as per the customer requirements, but not more than 70 microns average.
No welding, cutting or drilling is done after galvanizing.
The anchor bolts including nuts and washers are rough black or hot dip galvanised according to ASTM A 123 as per customized requirement.
Workshop
Pole Accessories
Anchor Bolts
• Available in 24" x 3/4", 36" x 1", 48" x 1 1/4" and 54" x 1 1/2"
• Hot dip galvanized
• Supplied as optional product
• Standard re-Bar conforming to C.S.A. Standard CAN/CSA - G30.18-M Grade 400 for
24" X 3/4". Higher grades for larger sizes.
• Supplied with hexagon nut and washer
Nut & Bolt Cover
• Supplied with pole. Designed to fit 1", 1 1/4" and 1 1/2" bolts.
• High strength polyurethane
• Available in colours
Handhole
•Pole is supplied with 4" x 7" handhole, grounding stud and handhole cover
The standard tenon size is 2 3/8" O.D. by 7" long.
Any designs not shown in this catalogue can be produced by Nova Pole International
and inquiries should be communicated to company representatives.
Approval drawings are available on request.
All measurements shown here are imperial measure (inches, square inches and feet)
unless otherwise noted.
Light Design
Company:
Jiangsu Milky Way specialize in offering a wide range of Octagonal Poles that is used in street light poles. These poles are fabricated using high grade raw material like steel Q235 and latest technology as per the international quality standards. Moreover, these are available in customized options to suit the varied requirements of the clients.
