Cực điện NEA 30ft cho đường dây truyền tải điện
cực điện 30ft
,cực điện NEA
,cực điện AWS D 1.1

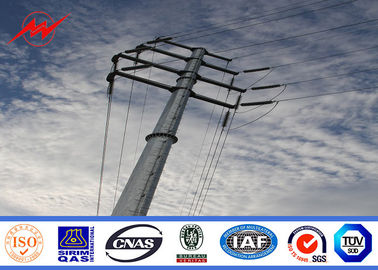

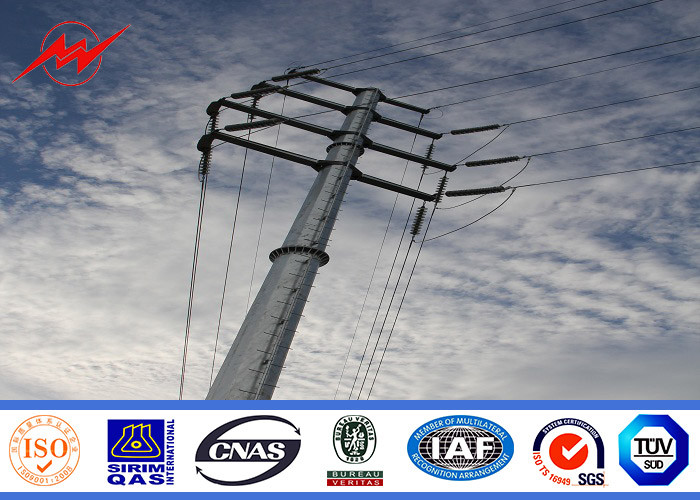

30ft NEA Electrical Power Pole for Electrical Transmission Line
Reference Specification
|
Material |
High-quality steel Q235 | |
| Welding Technique | Automatic submerged arc welding | |
| Surface Treatment | Hot dip galvanizing and powder painting | |
| Thickness of Zinc Coating | ≥ 86um (can be customized) | |
| Adhesive Force of Zinc Coating | GB2694-88 (can be customized) | |
| Anti-wind Capacity | 36.9m/s | |
| Anti-corrosion Lifetime | ≥20 years | |
| Coating Layer (can be customized) | Thickness | ≥100um |
| Adhesive force | GB9286-880 | |
| Hardness | ≥2H | |
| Steel Pole Height Options | 3m~12m (can be customized) | |
| Steel Poles Type Options | polygonal, dual-arm, single-arm and round etc. | |
Production process
Raw material test → Cutting →Molding or bending →Welidng (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration → Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Package

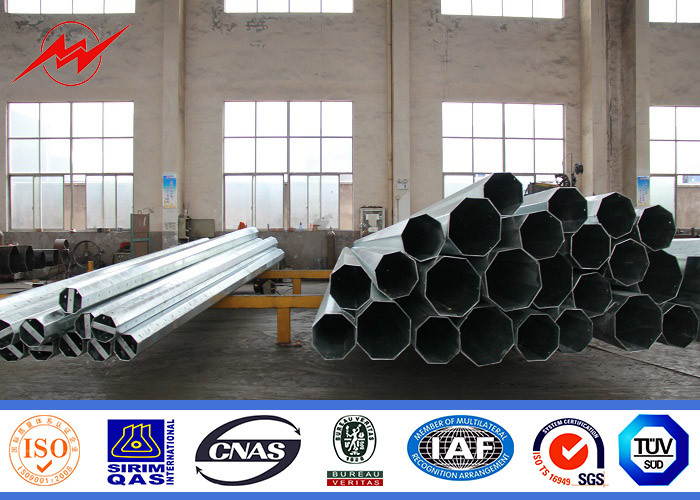

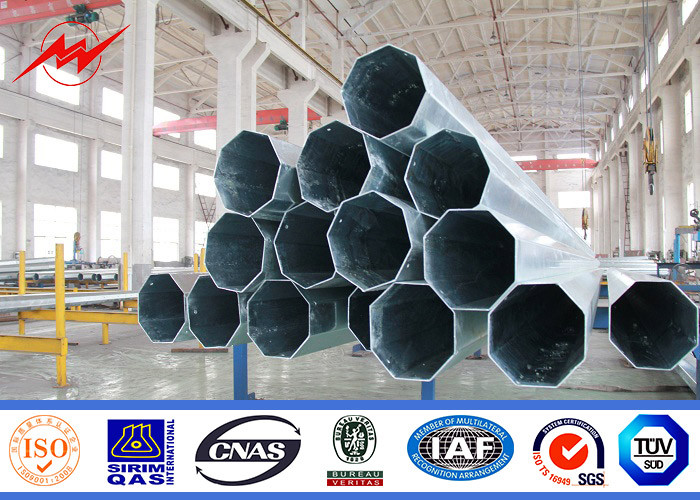

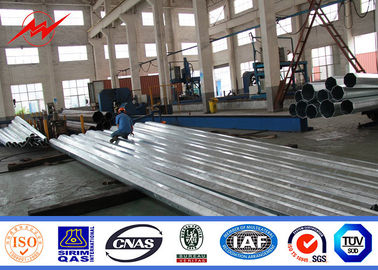

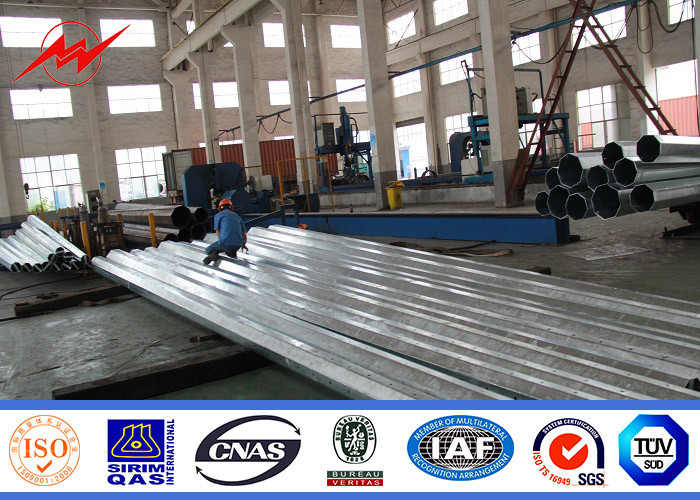

Factory
Estbilsed in 1991,Jiangsu Milky Way Steel Poles is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .
Our Products have been widely used in the power transmsion ,signal transmission and ligting for street ,road ,square ,palaestra.and so on
We have plenty of export experience . Since our first overseas order from Pakstan in 1991 of 132 KV transmission poels ,our products have been deliveried to more than 70 contries and areas ,including America,Australia ,Russia ,Genmery ,Span,Philippines ,Malaysia and so on
