15M 20M 25M Electric Power Transmission Pole with Q235 Q345 Material and 110 kV Rated Voltage
15M 20M 25M Electric Power Transmission Pole with Q235 Q345 Material and 110 kV Rated Voltage
Thuộc tính cơ bản
Nơi xuất xứ:
Jiangsu, Trung Quốc
Tên thương hiệu:
Milky Way
Số mô hình:
Cột thép
Giao dịch Bất động sản
Số lượng đặt hàng tối thiểu:
10
Giá:
$180
Tóm tắt sản phẩm
15M 20M 25M Electric Power Transmission Lines Steel Pole Product Specifications Type 15M 20M 25M Electric Power Transmission Lines Steel Pole Suit For Electricity distribution Shape Octagonal Material Usually Q345B/A572, minimum yield strength>=345n/mm² Q235B/A36, minimum yield strength>=235n/mm² As ...
Thuộc tính tùy chỉnh sản phẩm
Làm nổi bật
15M 20M 25M Electric Power Transmission Pole
,Q235 Q345 Material Steel Power Pole
,110 kV Rated Voltage Transmission Line Pole
Xếp hạng hiện tại:
3150 A
Điện áp định mức:
110KV
Kích cỡ:
15
Vật liệu:
Q235 Q345 Sức mạnh năng suất không nhỏ hơn 235/345MPa
Xử lý bề mặt:
Nóng hông mạ kẽm
tiêu chuẩn mạ điện:
ASTMA123
tiêu chuẩn hàn:
AWS D.1.1
Sức chịu đựng:
+/-2%
Hình dạng:
Hình bát giác
Quyền lực:
10KV ~550KV
Thiết kế tải:
300 ~ 1000 Kg áp dụng cho 50 cm từ cột đến cực
khớp cực:
Chế độ chèn, chế độ mặt trong, chế độ khớp mặt đối mặt
Kháng động đất:
Chống động đất lớp 8
Độ dày:
1 mm đến 30 mm
Cân nặng:
26T
Mô tả sản phẩm
Thông số kỹ thuật chi tiết và đặc điểm

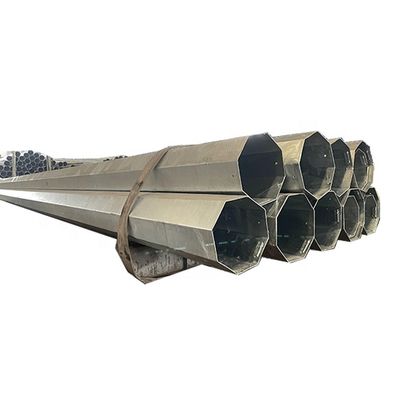

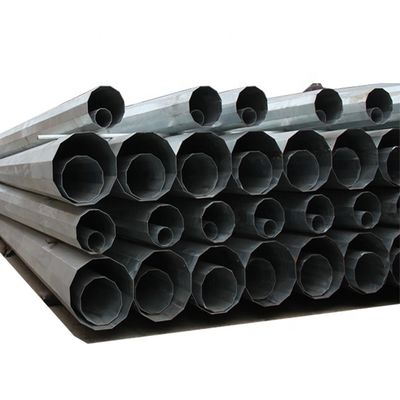

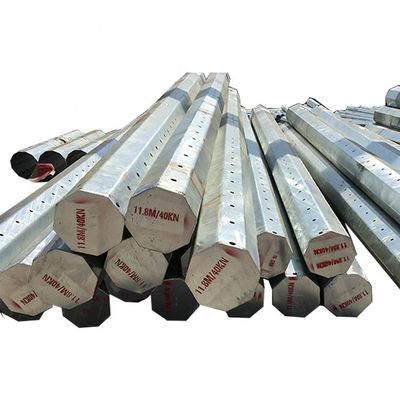

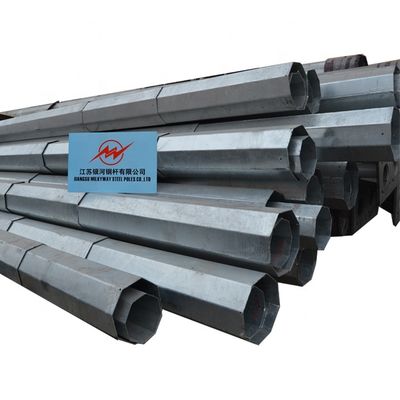

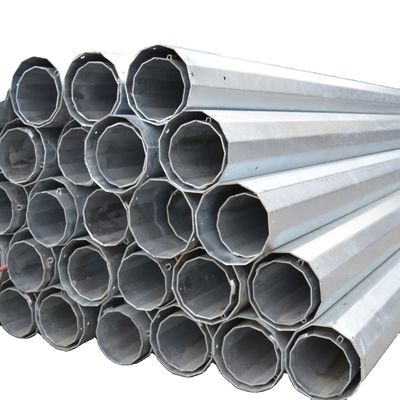

15M 20M 25M Electric Power Transmission Lines Steel Pole
Product Specifications
| Type | 15M 20M 25M Electric Power Transmission Lines Steel Pole |
|---|---|
| Suit For | Electricity distribution |
| Shape | Octagonal |
| Material | Usually Q345B/A572, minimum yield strength>=345n/mm² Q235B/A36, minimum yield strength>=235n/mm² As well as Hot rolled coil from Q460, ASTM573 GR65, GR50, SS400, SS490 |
| Power | 10 KV ~550 KV |
| Design Load | 300~1000 Kg applied to 50cm from the top pole |
| Surface Treatment | Hot dip galvanized Following ASTM A 123, color polyester powder or any other standard by client required |
| Joint of Poles | Insert mode, inner flange mode, face to face joint mode |
| Design of Pole | Against earthquake of 8 grade |
| Standard | ISO 9001 |
| Welding | We have passed flaw testing. Internal and external double welding makes the welding beautiful in shape Welding Standard: AWS (American Welding Society) D 1.1 |
| Thickness | 1 mm to 30 mm |
Production Process
Raw Material
When purchasing the raw material (steel plate), one sheet of mill certificate from mill factory must be enclosed. When the raw material arrives at the warehouse, the quality department performs elongation tests and chemical composition analysis to ensure the material meets all required standards before production.
Cutting
Cutting the qualified raw material into different lengths and widths. CNC laser cutting is used to direct the material or the laser beam generated. A typical commercial laser for cutting materials involves a motion control system to follow a CNC or G-code pattern. The focused laser beam melts, burns, vaporizes, or is blown away by a jet of gas, leaving an edge with high-quality surface finish.
Molding
Forming the cut steel plate into the specified shape (circular, polygonal, or other) as per drawing requirements. Our forming devices bend longitudinally rolled sections or strips of metal stock to desired curvilinear shapes.
Welding
After molding, welding the steel plate together (typically longitudinal welds). Our A.C. inverter control ensures stable running and fast traveling speed. The three-spindle seam-tracking arc-guide mechanism guarantees alignment without aberrancy. The integrated main frame and welding machine with flux auto-recovering system ensures easy operation and high efficiency.
Galvanization
All poles are hot-dip galvanized internally and externally according to drawing specifications. Galvanization standards: IS2629-1985, BS729-1971.
Certifications
Company Profile
Jiangsu Milky Way Steel Poles Co., Ltd.
Established in 1991, located in Wuxi, East China near Shanghai Port. Our products are widely used in power transmission, signal transmission, and lighting for streets, roads, squares, and palaestra.
Established in 1991, located in Wuxi, East China near Shanghai Port. Our products are widely used in power transmission, signal transmission, and lighting for streets, roads, squares, and palaestra.
With extensive export experience since our first overseas order from Pakistan in 1991 (132 KV transmission poles), our products have been delivered to over 70 countries including USA, Australia, Russia, Germany, Spain, Philippines, Malaysia, etc.
As a BV, ISO, SGS approved supplier with over 20 years of production and export experience, we guarantee high-quality poles made from qualified materials by professional workers using advanced equipment.
Packing & Delivery
| Packing | Sea/road-worthy wooden packing material |
|---|---|
| Size | 40HQ |
| Weight | 26T |
Packaging can be customized to client requirements. Loading capacity per 40HQ or OT container is calculated based on actual specifications.
Why Choose Us?
- Reply to inquiries within 24 working hours
- Experienced staff fluent in English
- Customized designs available (UEM&UBM welcome)
- Unique solutions from professional engineers
- Special discounts and sales protection for distributors
- 20+ years manufacturing experience with competitive quality
- Samples available for large orders (shipping charges may apply)
- Superior raw materials, advanced machines, and skilled technicians ensure high-quality products
Frequently Asked Questions
Q1. How can I get a price for needed pole?
A: Provide exact dimensions (height, thickness, material, top/bottom diameter) or send a drawing for accurate pricing.
Q2. Do you accept small orders?
A: Yes, we welcome small wholesalers and aim to grow together.
Q3. Can you produce samples from our designs?
A: We welcome collaboration to bring your designs to reality.
Q4. How to apply to be your agent?
A: Send your proposal and company profile to delia@yin-he.com.
Q5. Tell me about your company?
A: Established in 1991, we manufacture and export steel poles worldwide, with products in over 70 countries.
Q6. Do you have special policies for brand companies?
A: Yes, we offer special support for VIP customers with established brands.
Q7. Can you provide Door to Door service?
A: Yes, we offer comprehensive shipping solutions with competitive rates.
