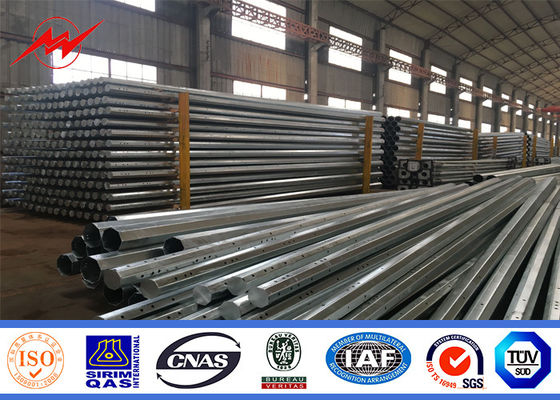

African Bitumen 20m Double Circuit Galvanized Steel Power Pole
Specifications:
|
Suit for |
Electricity distribution |
|
Shape |
Conoid ,Multi-pyramidal,Columniform,polygonal or conical |
|
Material |
Usually Q345B/A572,minimum yield strength>=345n/mm2 |
|
Torlance of the dimenstion |
+- 2% |
|
Power |
10 KV ~550 KV |
|
Safety Factor |
Safety factor for conducting wine : 8 |
|
Design Load in Kg |
300~ 1000 Kg appliced to 50cm from the to pole |
|
Marks |
Nane palte through rivert or glue ,engrave ,emboss as per customer requirement |
|
Surface treatment |
Hot dip galvanized Following ASTM A 123, |
|
Joint of Poles |
Insert mode,innerflange mode,face to face joint mode |
|
Design of pole |
Against earthquake of 8 grade |
|
Wind Speed |
160 Km/Hour . 30 m /s |
|
Welding |
We has past flaw testing.Internal and external double welding makes |
|
Thickness |
1 mm to 30 mm |
|
Packages |
Our poles as normal cover by Mat or straw bale at the top and bottom , |
Description:
Standard Accessory
-Top plate
-Base plate
-Bottom strip
-Standard hole
-Climbing rung
-Anchor bolt
-Bitumen protection
-Painted marking
-Removable ladder
These are the standard accessories of the electric pole.
Galvanization
The galvanization of the steel pole are under strict control.Galvanization is achieved by immersion in a molten zinc bath(450d°) after pre-treated(dipping).
Installation
-Remove all the equipment on the pole during Assembly.
-Circle a sling around th epole shaft of each section.
-Fix the sling on top section to one pulley block.
-The sling on the bottom section is tightly fixed and fixed at the center of gravity.
-Make the steel pole vertical by tighten the sling of the top section.
-Fix the steel pole.
-Remove the sling.
Package
Packing with plastic paper or according to client’s request.
