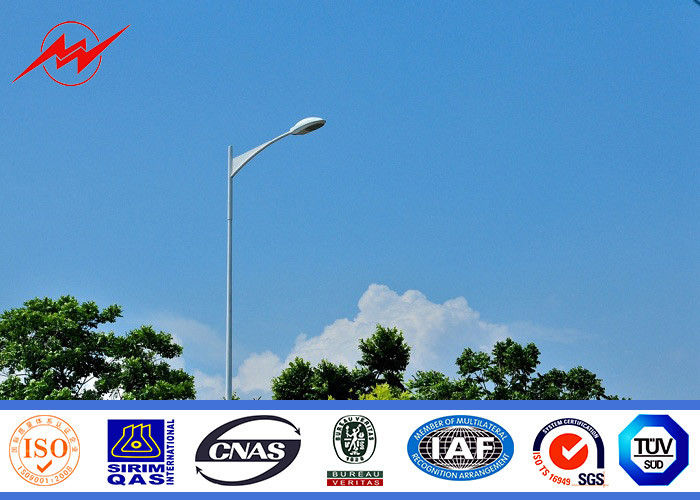

Street Lighting Single Bracket Parking Light Poles 5m Height 3mm Thickness

Hình ảnh lớn : Street Lighting Single Bracket Parking Light Poles 5m Height 3mm Thickness

Thông tin chi tiết sản phẩm:

Place of Origin:	Jiangsu, China
Hàng hiệu:	Milky Way
Chứng nhận:	ISO, BV,
Model Number:	5m 3mm thickness Street Light Poles with single bracket for parking lighting

Thanh toán:

Minimum Order Quantity:	one 40 HQ
Giá bán:	negotiation
Packaging Details:	as per customer request
Delivery Time:	usually 2 weeks after confirming
Payment Terms:	T/T
Supply Ability:	300 pieces pole per day

Tiếp xúc

Chi tiết sản phẩm

Optical assembly of lighting fixture:	IP 65	Suit for:	airport, seaport, plaza, stadium, square, highway, street way etc
Lamp power:	20w-400w	Torlance of the dimenstion:	+-2%
Wind Speed:	160km/h	Thickness:	1mm to 30mm
Điểm nổi bật:	street lighting poles , street lamp pole

Technical Specification- Lighting pole sample

Length			Base Plate		Top	Bottom	Thickness	Order	Unit Price	Amount	Unit Price	Amount
					Diameter	Diameter			FOB Shanghai		fob shanghai
									USD		USD
N.	A(m)	B(m)	Side	Thickness	G(mm)	H(mm)	T(MM)	Q'ty	Hot Dip Gavanized		Powder Coating
N.	A(m)	B(m)	(mm)	(mm)	G(mm)	H(mm)	T(MM)	Q'ty	Hot Dip Gavanized		Powder Coating
1	5	0.5	300	14	60	115	3
2	6	0.7	300	14	60	126	3
3	7	0.7	300	14	60	130	4
4	8	0.7	300	14	60	140	4
5	9	0.7	300	14	60	159	4
6	10	0.7	350	16	60	170	4
7	11	0.7	350	18	60	176	4
8	12	0.5	350	18	60	180	4
9	7	0.7	300	16	76	146	4
10	8	0.7	300	16	76	156	4
11	9	0.7	350	18	76	166	4
12	10	0.7	360	18	76	176	4
13	11	0.7	360	18	76	180	4
14	12	0.7	360	18	76	196	4

Street Lighting Single Bracket Parking Light Poles 5m Height 3mm Thickness 0

Product Description

OEM&ODM
easy for installion
concise design lighting pole
high cost performance lighting pole
Material :SS400, Q235,A36 (yield strength: 235Pa 24kg/mm2 Tensile Strength: 375-460Pa 38-47kg/mm2
(Other Material is Available on Request)
·Hot Dip Galvanized (≥86um)
·Any Color Polyester Powder Coated (≥100 um)
·Taper Conical , Octagonal, Polygon Section
·With demounted bracket design,easy loaded,install,and maintenance
·Theftproof slide lock
·Category: Garden lighting,Street lighting pole, light mast,street light mast
