Single - Circuit Linear Electric Power Pole Conical / Round For Transmission Line

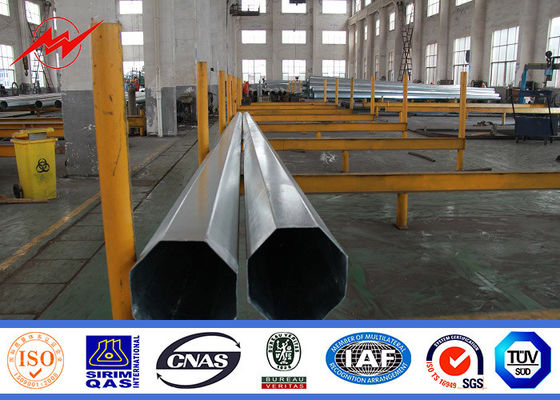

Hình ảnh lớn : Single - Circuit Linear Electric Power Pole Conical / Round For Transmission Line

Thông tin chi tiết sản phẩm:

Place of Origin:	China
Hàng hiệu:	Milky Way
Chứng nhận:	ISO//BV
Model Number:	110kv Single-circuit Linear Electrical Power Pole For Transmission Line

Thanh toán:

Minimum Order Quantity:	one 40HQ
Giá bán:	negotiation
Packaging Details:	as per customer request
Delivery Time:	usually 2 weeks after confirming
Payment Terms:	T/T
Supply Ability:	300 pieces pole per day

Tiếp xúc

Chi tiết sản phẩm

Surface treatment:	hot dip galvanization	Torlance of dimension:	+-2%
Design of pole:	against earthquake of 8 grade	Wind speed:	160km/h, 30m/s
Suit for:	electricity distribution	Length of per section:	within 14m once forming without slip joint
Điểm nổi bật:	transmission line poles , electric power pole

110kv Single-circuit Linear Electrical Power Pole For Transmission Line

Specifications

Pole’s height	≥5m
Type	Low ,Middle and higher Voltage
Shape of pole	Conical, Round, Polygonal (Octagonal, Dodecagonal, etc).
Crossarm	Designas per customers’ requirement
Material	Steel materials conform to ASTM A36, ASTM A572. Q235 equivalent to SS400, S235JO. Q345 equivalent to S355JR,Grade 50 Q460 equivalent to S460, Grade 65
Wall thickness	2.5mm , 2.75mm, 3.0mm, 3.5mm, 3.75mm, 4.0mm, 4.5mm, 4.75mm, 5.0mm,etc
Sections	≤11900mm can be with one section and loaded into 40HQ container. ≥12000mm need be designed with 2 sections. Unless use Flat Rack Container.
Welding	Welding complies with CSA and AWS D1.1 standard.
Joint	Joint with Slip Joint or flange mode.
Installation	1. Burial Type. 2. Base plate is square or round with slotted holes for anchor bolt and dimension as per client’s requirement.
Galvanizing	Hot dip galvanization in accordance with Chinese standard GB/T 13912-2002 or American standard ASTM A123.
Min Yield Stress	345 Mpa
Min Tensile Strength	470 Mpa ~ 630 Mpa
Voltage	10KV~550KV
Limited Weight	26 Ton/Container
Certificates	ISO 9001-2008 , AAA credit rating, etc
Protection	Anti-corrosion and rust free – suitable for coastal area, desert, oil field and industrial area

Single - Circuit Linear Electric Power Pole Conical / Round For Transmission Line 0

The main production equipment electricity steel tube pole
12 m * 1200 tons of CNC hydraulic bending machine
Longmen submerged arc welding machines / cantilever submerged arc welding machine
Flange welding

Packaging & Shipping

We use sack package the poles or straw at the pole top and bottom which is our normal package. We also use wood between the poles but cost just little higher than normal package. We normally use 40HQ container and our Port limit weight for 40HQ is 26Ton.

Single - Circuit Linear Electric Power Pole Conical / Round For Transmission Line 1

Detection and lofting apparatus
1000KN mechanical universal testing machine ( tensile strength, yield strength, elongation, bending, shear and etc.)
Five elements of carbon and sulfur analyzer
The welding quality of ultrasonic flaw detector
Hot dip galvanizing thickness measuring instrument
Theodolite ( 5 ) -- installation verticality measuring tower with
Rebound tester ( measurement of concrete strength)
HP wide-format printers (1.2 meters ) - model, map use
Load test stand 20 meters (for portable base station tower, the cable tower and some non-standard products test)
