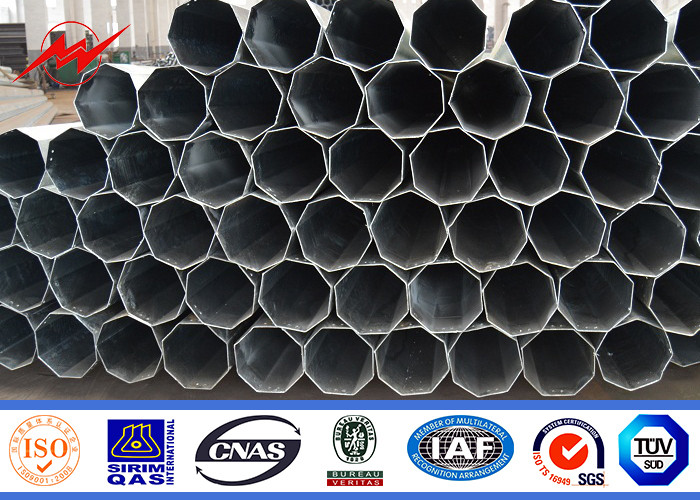

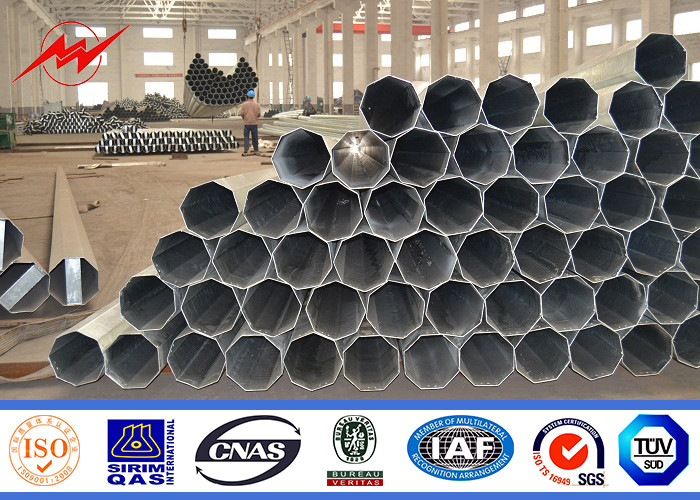

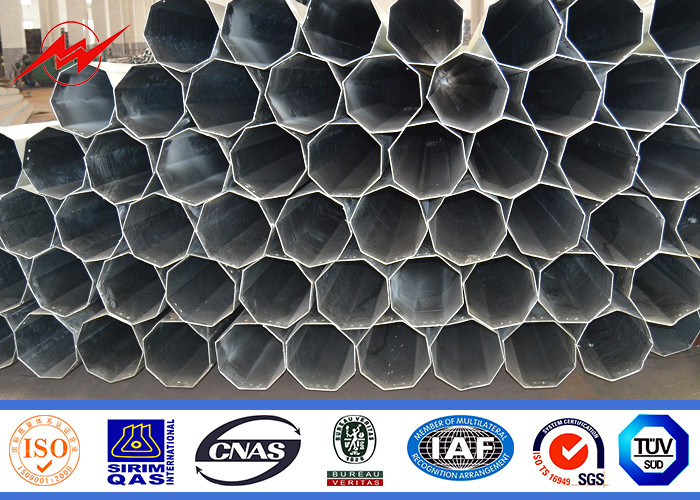

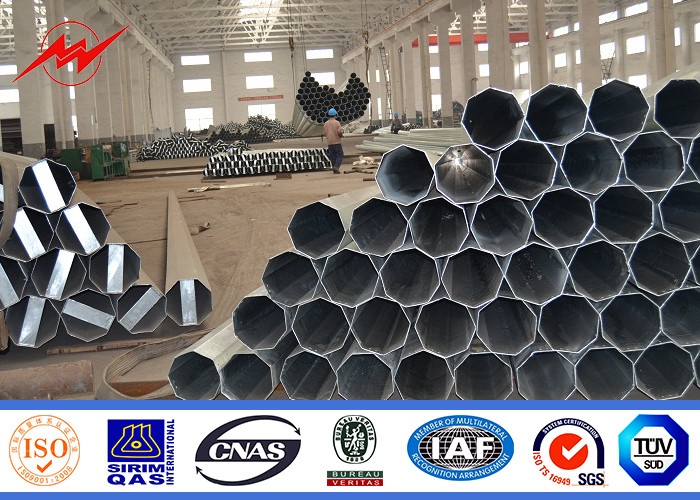

Octogonal 40FT 138KV Steel Utility Pole for Electrical Power Transmission
Specifications:
|
Application: |
Outdoor illumination, Road illumination, Street illumination |
|
welding |
It has past flaw testing, internal and external double welding makes the welding beautiful in shape. It confirms with the international welding standard of CWB. |
|
Galvanizing |
Hot dip galvanization with thickness of 80-100µm average in accordance with Chinese standardGB/T 13912-2002 or American standard ASTM A123, IS: 2626-1985. |
|
Painting color: |
Refer to client’s requirement and then according to (RAL)Color card |
|
Finishing 1: |
Black pole, Rough pole |
|
Finishing 2: |
Hot dip Galvanizing antirust. |
|
Finishing 3: |
HDG. with powder coating |
|
Temperature range |
-35 °C~+45 °C |
|
Max wind velocity |
Aganist wind pressure of 160Km/h |
|
Base plate mounted |
Base plate is square, octagonal or round in shape with slotted holes for anchor bolt and dimension as per customer’s requirement. |
|
Ground mounted |
The length buried underground as per customer’s requirement. |
|
Quality Control |
We are well equipped with superior production equipments, solid technical strength, excellent managing mode and quality control system, perfect after service. We have passed the ISO9001:2008 Quality Systems Authentication. |
|
Certificates |
ISO9001-2008, Audited Supplier, The AAA grade certificate of goodwill |
|
Other |
Less land occupation & easy maintenance. |
Description:
The material we use is from Baosteel.According to the different strength request,we can use the Q235,Q345 and GR65.The strength of GR 65 is best and Q235 is lowest.
For the street light pole,we usually choose Q235 and Q345.
The good quality of steel material guarantee the good quality of the finished steel pole.
Installation
-Remove all the equipment on the pole during Assembly.
-Circle a sling around th epole shaft of each section.
-Fix the sling on top section to one pulley block.
-The sling on the bottom section is tightly fixed and fixed at the center of gravity.
-Make the steel pole vertical by tighten the sling of the top section.
-Fix the steel pole.
-Remove the sling.
