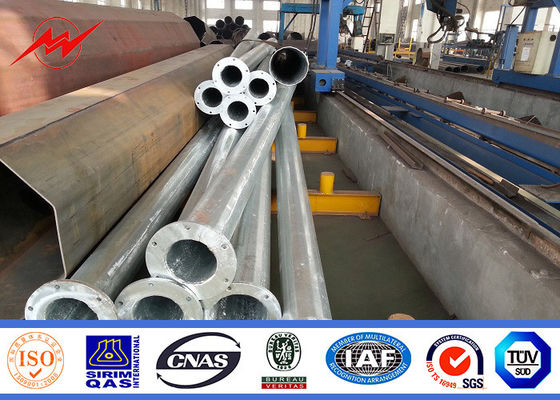

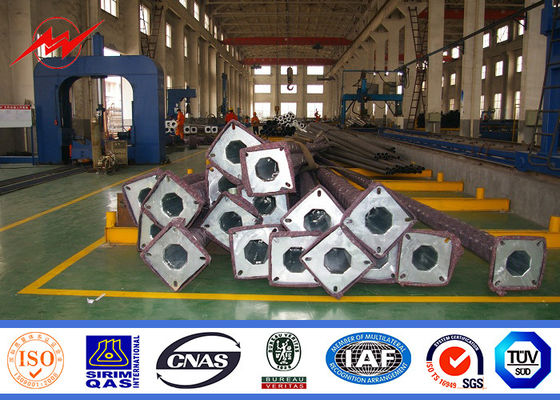

Hot Dip Galvanized 12m Tri Outreach Galvanized Steel Pole with 2.5m Outreach Arm
Specifications:
| Infrastructure-Light Pole | |||
|---|---|---|---|
| Height(f) | Reach(f) | Anchor Bolt Size | Description |
| 30 | 8 | 1"x36" | Single Pole Galv.Finish |
| 35 | 8 | 1"x36" | Single Pole Galv.Finish |
| 43 | 8 | 1"x36" | Single Pole Galv.Finish |
| 43 | 12 | 1"x36" | Single Pole Galv.Finish |
| 50 | 12 | 1"x36" | Single Pole Galv.Finish |

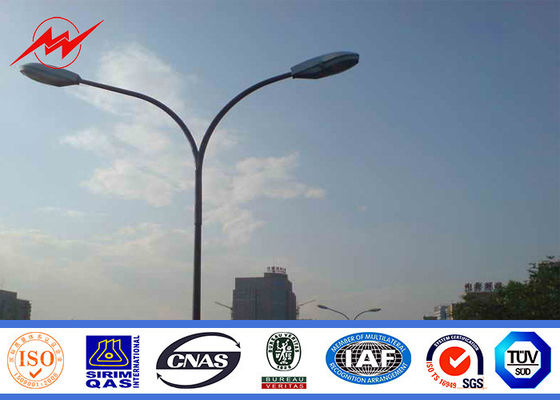

| 30 | 8/8 | 1"x36" | Double Pole Galv.Finish |
| 30 | 12/12 | 1"x36" | Double Pole Galv.Finish |
| 43 | 8/8 | 1"x36" | Double Pole Galv.Finish |
| 43 | 12/12 | 1"x36" | Double Pole Galv.Finish |
Galvanization
Standard:NFA91121
Average thickness of the galvanization:Not less than 70μm.
Production Flow:
The production process:Row material test → Cutting →Molding or bending →Welding (longitudinal )→Dimension verify →Flange welding→Hole drilling →Calibration → Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Packages
Anchor Bolts
• Available in 24" x 3/4", 36" x 1", 48" x 1 1/4" and 54" x 1 1/2"
• Hot dip galvanized
• Supplied as optional product
• Standard re-Bar conforming to C.S.A. Standard CAN/CSA - G30.18-M Grade 400 for
24" X 3/4". Higher grades for larger sizes.
• Supplied with hexagon nut and washer
Nut & Bolt Cover
• Supplied with pole. Designed to fit 1", 1 1/4" and 1 1/2" bolts.
• High strength polyurethane
• Available in colours
Handhole
•Pole is supplied with 4" x 7" handhole, grounding stud and handhole cover
The standard tenon size is 2 3/8" O.D. by 7" long.
Any designs not shown in this catalogue can be produced by Nova Pole International
and inquiries should be communicated to company representatives.
Approval drawings are available on request.
All measurements shown here are imperial measure (inches, square inches and feet)
unless otherwise noted.
Company Introduction:
Estbilsed in 1991,Jiangsu Milky Way Steel Poles is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .
Our Products have been widely used in the power transmsion ,signal transmission and ligting for street ,road ,square ,palaestra.and so on
We have plenty of export experience . Since our first overseas order from Pakstan in 1991 of 132 KV transmission poels ,our products have been deliveried to more than 70 contries and areas ,including America,Australia ,Russia ,Genmery ,Span,Philippines ,Malaysia and so on- cctv winch camera telescopic mast pole
