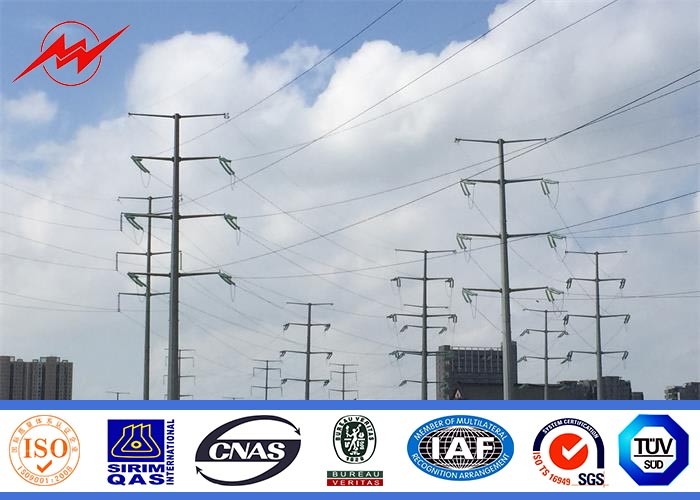

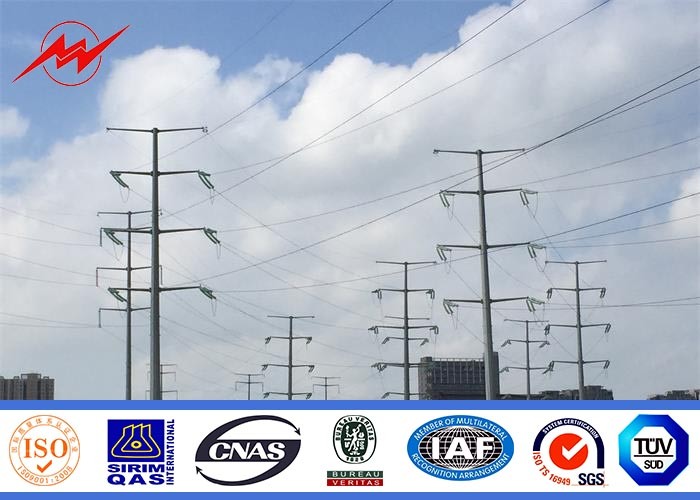

110KV double circuit electrical power pole for electrical transmission
Specifications:
|
Design Load in Kg |
300~ 1000 Kg applied to 50cm from the top pole |
|
Marks |
Nane plate through rivert or glue ,engrave ,emboss as per customer |
|
Surface treatment |
Hot dip galvanized Following ASTM A 123, color polyester power or |
|
Joint of Poles |
Insert mode,innerflange mode,face to face joint mode . |
|
Design of pole |
Against earthquake of 8 grade |
|
Wind Speed |
160 Km/Hour . 30 m /s |
|
Minimum yield strength |
355 mpa |
|
Minimum ultimate tensile strength |
490 mpa |
|
Max ultimate tensile strength |
620 mpa |
|
Standard |
ISO 9001 |
|
Length of per section |
Within 14m once forming without slip joint |
|
Welding |
We have past flaw testing. Internal and external double welding makes |
|
Thickness |
1 mm to 30 mm |
|
Production Process |
Raw material test → Cutting →Molding or bending →Welding |
|
Packages |
Our poles as normal cover by Mat or straw bale at the top and bottom , |
Description:
Standard Accessory
- Top plate
- Base plate
- Bottom strip
- Standard hole
- Climbing rung
- Anchor bolt
- Bitumen protection
- Painted marking
- Removable ladder
These are the standard accessories of the electric pole.
Production process:
As an BV, ISO, approved supplier in China, we have more than 20 years produce and export
steel pole ,and we can assure the pole we offered is of sound quality which made from qualified material
with our professional workers and advance equipment.
Packing&Delivery:
Company Introduction:
Jiangsu Milky Way Steel Poles Co.,Ltd (Original name:Yi xing Milky Way Steel Poles Factory) was
founded in 1991 is a cooperative shares system corp. The company covers an area of 150,000 square
meter .It is now centralizing in pole design, ,research, production ,and installation. After twenty years of
development,the company owns Hot Spray Coating Zinc Branch Factory ,Anhui Steel Branch ,Milky Way
Lighting Installation Engineering Company. The total asset of the company amount to 100 million RMB
and the annual production of transmission pole comes to 20 thousand ton per year.The annual
production of steel structure comes to 10 ton and street pole of 30 thousand sets .
