Galvanized Steel Pole Q345 for Transmission Line Hot Dip Galvanized

1 PC
MOQ
Có thể đàm phán
giá bán
Galvanized Steel Pole Q345 for Transmission Line Hot Dip Galvanized
Đặc trưng Bộ sưu tập Mô tả sản phẩm Yêu cầu báo giá
Đặc trưng
Thông số kỹ thuật
Tên sản phẩm: Cột thép mạ kẽm
Ứng dụng: đường truyền
Thiết kế: Tùy chỉnh
Xử lý bề mặt: Mạ kẽm nhúng nóng
tiêu chuẩn hàn: AWS D1.1
độ dày mạ điện: Trung bình 86um
Vật liệu: Q345
Làm nổi bật:

galvanized steel transmission pole

,

Q345 power transmission pole

,

hot dip galvanized steel pole

Thông tin cơ bản
Nguồn gốc: Trung Quốc
Hàng hiệu: MilkyWay
Chứng nhận: ISO9001/BV/
Số mô hình: Cột thép mạ kẽm
Thanh toán
chi tiết đóng gói: như yêu cầu của khách hàng
Thời gian giao hàng: 20 ngày làm việc sau khi nhận được khoản thanh toán của bạn
Điều khoản thanh toán: T/T, L/C tại tầm nhìn
Khả năng cung cấp: 300 chiếc mỗi ngày
Mô tả sản phẩm
Strong and Sturdy Power Transmission Poles Made from Q345B/A572 and Q235B/A36 Materials
Product Specifications
Attribute Value
Product Name Galvanized Steel Pole
Application Transmission Line
Design Customized
Surface treatment Hot dip galvanization
Welding standard AWS D1.1
Galvanization Thickness Average 86um
Material Q345
Technical Specifications
Feature Specification
Suitable For 11M 836kg Load Weight Transmission Distribution
Shape Conoid, Multi-pyramidal, Columniform, Polygonal or Conical
Material Options Q345B/A572 (min yield strength ≥345N/mm²), Q235B/A36 (min yield strength ≥235N/mm²), Q460, ASTM573 GR65/GR50, SS400, SS490, ST52
Dimension Tolerance ±2%
Power Capacity 10KV ~550KV
Safety Factors 8 for conducting wire, 8 for grounding wire
Design Load 300~1000kg applied 50cm from pole top
Surface Treatment Hot dip galvanized (ASTM A123), color polyester powder, or client-specified
Joint Types Insert mode, inner flange mode, face-to-face joint mode
Structural Design Earthquake resistant (8 grade), withstands 160km/h (30m/s) winds
Material Strength Min yield: 355MPa, Min tensile: 490MPa, Max tensile: 620MPa
Standards ISO 9001, AWS D1.1 welding standard
10 Advantages of Steel Utility Poles
  • Easy to Handle
  • Light Weight
  • Long Life
  • Cost Effective
  • Low Maintenance
  • Sustainable
  • Durable
  • Safe
  • Aesthetic
  • Engineered for Strength
Galvanized Steel Pole Q345 for Transmission Line Hot Dip Galvanized 0

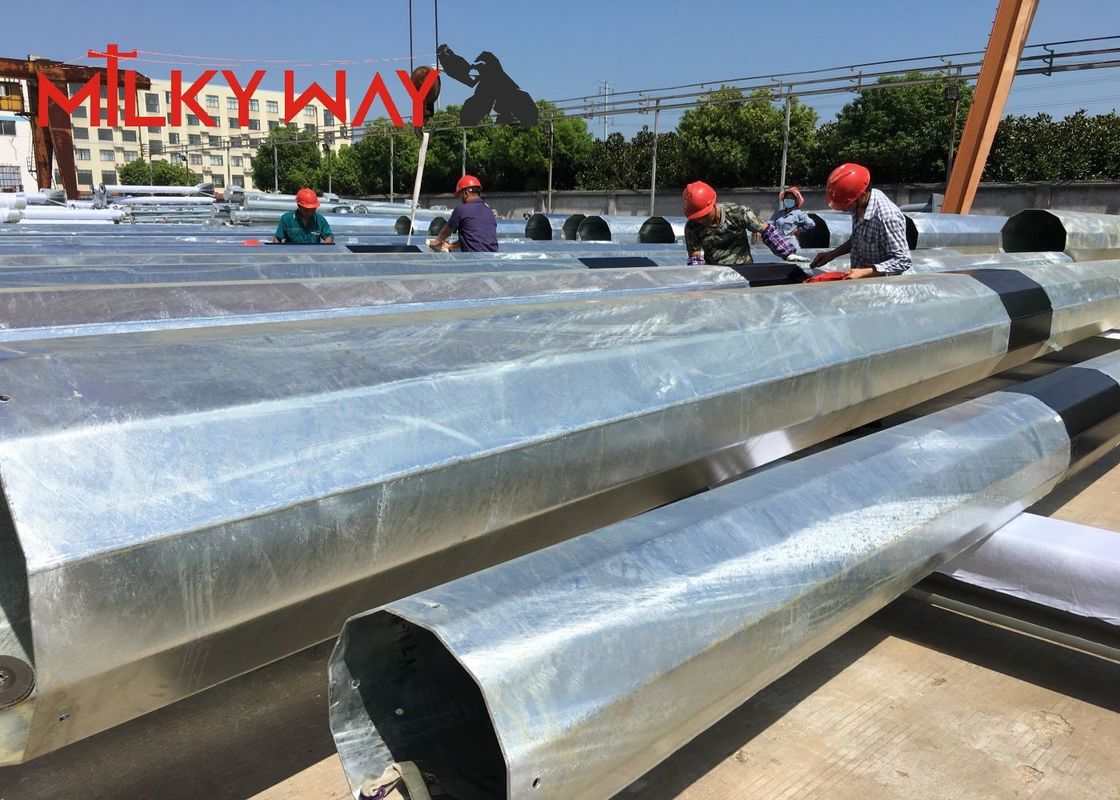

Production Process
Raw material test
Cutting
Bending
Longitudinal welding
Dimension verification
Flange welding
Hole drilling
Sample assembly
Surface cleaning
Galvanization/powder coating/painting
Recalibration
Packaging
Galvanized Steel Pole Q345 for Transmission Line Hot Dip Galvanized 1
Company Profile

JiangSu Milky Way Steel Poles Co., Ltd. was established in 1988 and is located in Yixing City, Jiangsu Province. With a facility covering 35,000 square meters and annual output value reaching 200 million, we have over 20 years of experience in design and production.

Our product range includes power poles, communication towers, street lighting poles, and steel brackets. We maintain strong technical capabilities, advanced production equipment, and a comprehensive quality management system, ensuring our products meet international advanced standards.

Galvanized Steel Pole Q345 for Transmission Line Hot Dip Galvanized 2
