8m 11KV 13KV Electrical Power Steel Pole Transmission Line Project with Bitumen

Trung Quốc 8m 11KV 13KV Electrical Power Steel Pole Transmission Line Project with Bitumen nhà cung cấp
8m 11KV 13KV Electrical Power Steel Pole Transmission Line Project with Bitumen nhà cung cấp 8m 11KV 13KV Electrical Power Steel Pole Transmission Line Project with Bitumen nhà cung cấp 8m 11KV 13KV Electrical Power Steel Pole Transmission Line Project with Bitumen nhà cung cấp 8m 11KV 13KV Electrical Power Steel Pole Transmission Line Project with Bitumen nhà cung cấp

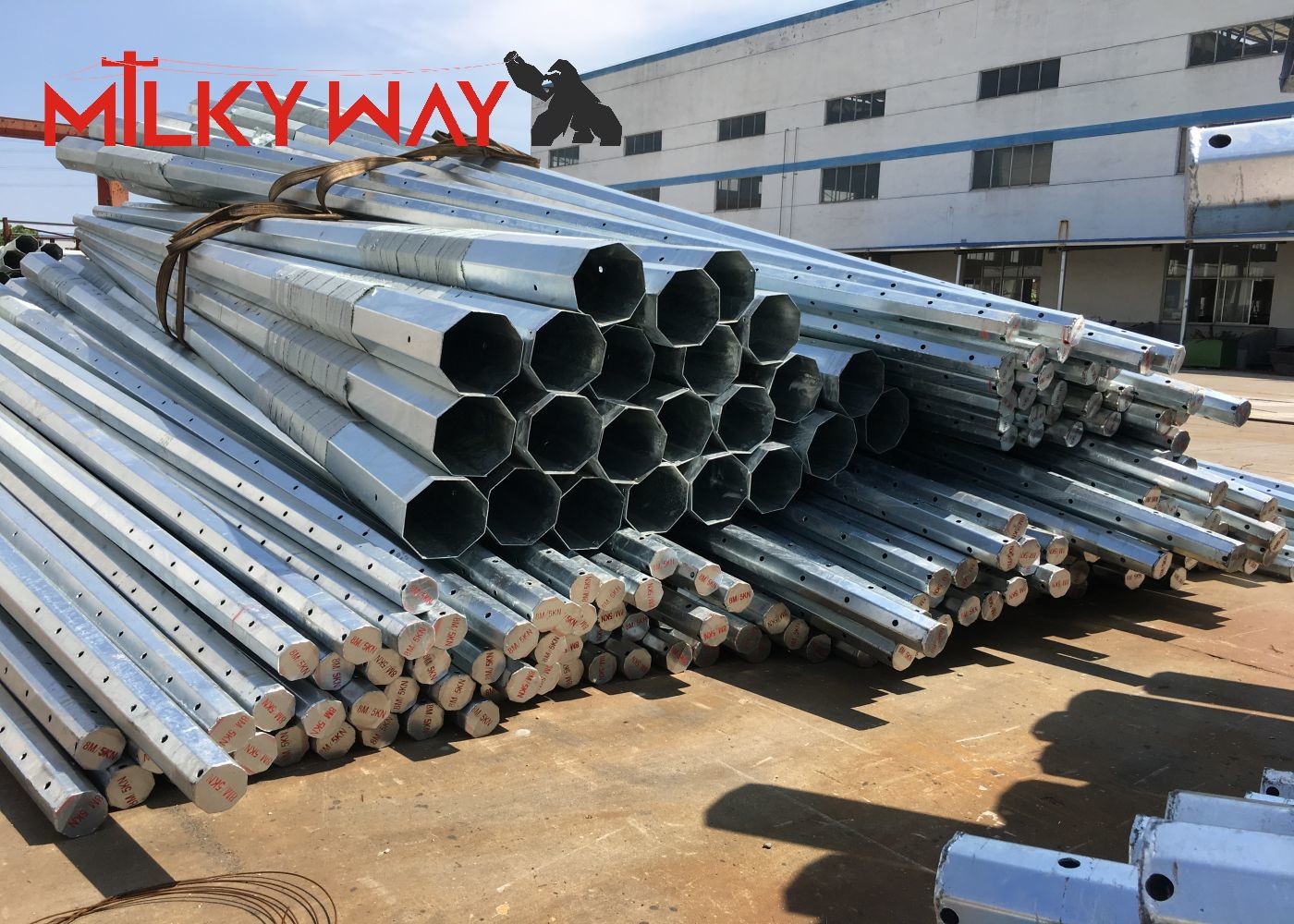

Hình ảnh lớn :  8m 11KV 13KV Electrical Power Steel Pole Transmission Line Project with Bitumen

Thông tin chi tiết sản phẩm:

Nguồn gốc: Trung Quốc
Hàng hiệu: Milky Way
Chứng nhận: ISO//BV
Số mô hình: 8m 11kV 13kV

Thanh toán:

Số lượng đặt hàng tối thiểu: Một chiếc 40HQ
Giá bán: Có thể đàm phán
chi tiết đóng gói: Theo yêu cầu của khách hàng
Thời gian giao hàng: thường là 2 tuần sau khi xác nhận
Điều khoản thanh toán: T/T
Khả năng cung cấp: 300 cái cực mỗi ngày
Chi tiết sản phẩm
Dung sai kích thước: +-2% Sức cản của gió: 3-500km/h
Vật liệu: GR50 GR65 S500 S355 Chiều cao: 8m 11kV 13kV
hàn: Hàn xác nhận với tiêu chuẩn hàn quốc tế của CWB Lớp phủ bột: Tranh bột polyester tinh khiết, màu sắc là tùy chọn
Thiết kế: chống lại trận động đất cấp 8 Tên sản phẩm: 8m 11kV 13kV Dự án truyền tải điện bằng thép điện với bitum với bitum





Specifications



Material: Hot rolled steel, Q235,Q345,S235, or customized
Pole’s height 3m –15m
length Within 16m once forming without slip joint
Wall thickness 2.5mm-20mm or optional
Pole's Shape: Round, Polygonal, Octagonal, Conial
Arm type: Single arm, Double arm, or as per cliens' request
Application: road,avenue, street, expressway, park, square
Temperature range -35 °C~+45 °C
Max wind velocity Aganist wind pressure of 160Km/h
Base plate mounted Base plate is square, octagonal or round in shape with slotted holes for anchor bolt and dimension as per customer’s requirement.
Ground mounted The length buried underground as per customer’s requirement.



Specification for electric steel poles exported to Africa market

Electric Pole Specification-Congo
Height Load(KN) Top Diameter(mm) Bottom Diameter(mm) Wall Thickness(mm) Pole Shape Load Height(mm)
8M 2.5 100 210 2.75 8 6.2
8M 5 120 290 2.75 8 6.2
8M 6.5 130 330 2.75 8 6.2
8M 8 170 360 2.75 8 6.2
8M 10 180 405 2.75 8 6.2
10M 11 145 334 3 12 8
11M 6 120 246 3 12 8.9
11.8M 5 150 355 3 8 9.4
11.8M 6.5 180 400 3 8 9.4
11.8M 8 190 440 3 8 9.4
11.8M 10 190 450 3.5 8 9.4
11.8M 12.5 220 500 3.5 8 9.4
11.8M 16 230 560 3.5 8 9.4
11.8M 20 240 585 4 8 9.4
11.8M 25 260 655 4 8 9.4
11.8M 32 260 660 5 8 9.4







Introduction



Electric Power Tower includes angle steel tower, tapered tubular steel, transformer substation framework, power plant framework and so on.

Electric power tower is the steel structure frame of bracing electrical wires, keeping a sage distance of guild wires and buildings on the ground. According to appearance, the power tower can be divided to glass type tower, cat head type tower, Shang type tower, Gan type tower and doliform tower. On the basis of application, power tower can be separated to tension type tower, linear type tower, angle type tower, transposition type tower, terminal type power tower and crossing type power tower. The design feature of all tower is space truss structure, forming by single equilateral angle steel, making of material of Q235 (A3F) and Q345 (16Mn) and using black bolt of shearing force to connect pole parts. The tower is mainly consists of angle steel, connecting steel plate and bolt, some is component part of steel plate welding, as column foot. The simple tower part making the hot zincification anticorrosion, transportation, construction and erection is much easy. Usually use shackles on main pole of tower which the height is less than 60 meters for convenience of workers to ascend.



Steel tube tower mainly use between high voltage transmission lines, with lightning rod hanging place on top, bolt connecting tower body with cross arm which has wires hanging place. The intersecting surface of tower is oblong, and the intersection surface macroaxis of tower and cross arm is 0 to 90 degree angle. In practical application, raw material can be saved of shorten the circumference of intersection surface by bearing the max bending moment of oblong intersection surface macroaxis.

8m 11KV 13KV Electrical Power Steel Pole Transmission Line Project with Bitumen 0







Main Features



1. Price Term: EXW, FOB, CFR or CIF.
The price includes pole shaft, base plate, cross arm and anchor part.
Shipping seaport: Shanghai Seaport. For FOB, CFR or CIF price, please specify which exact model you need, and tell us your order quantity so that we can calculate the local transport charges and sea freight.
2. MOQ: 1 sets for Customized
3. Payment: Typically 30% by T/T as deposit, balance by T/T or L/C at sight before shipment. Other payment way can be negotiated.
4. Delivery time : goods can be ready for shipment within 10 workdays after receiving deposit.
5 Warranty : 30 years
6.Surface treatment :hot dip galvanization

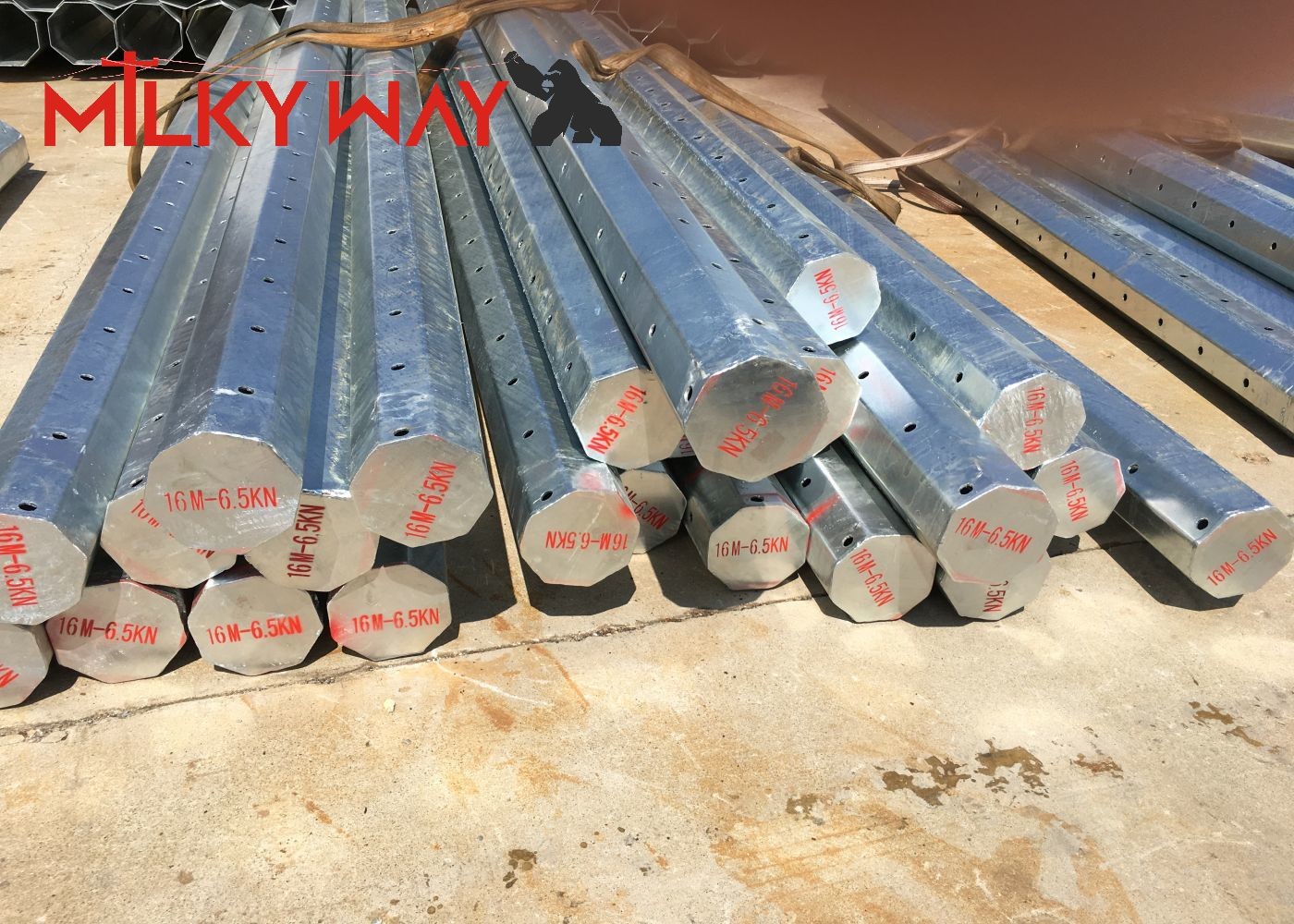

8m 11KV 13KV Electrical Power Steel Pole Transmission Line Project with Bitumen 1
