doanh số bán hàng :
Yêu cầu báo giá
Thông tin chi tiết sản phẩm:
Thanh toán:
|
| Điện áp: | 220 | Vật liệu: | nylon |
|---|---|---|---|
| Phạm vi trọng lượng: | 2.1kg-105kg | Đường kính bánh xe: | 120mm-1040mm |
| Chiều rộng bánh xe: | 30 mm-125mm | Kích thước dây dẫn: | 25 mm-1000mm² |
| Tải định mức: | 5KN-55KN | Vật liệu bánh xe: | Nylon/nhôm |
| Vật liệu khung: | Thép mạ kẽm | Loại mang: | Vòng bi |
| dây dẫn tối đa: | ≤1000mm² | Tải tối đa: | 55KN |
| Trọng lượng tối đa: | 105kg | Trọng lượng tối thiểu: | 1,5kg |
| Kích thước sản phẩm: | 660mm*100mm | ||
| Làm nổi bật: | 660mm*100mm Cable Pulley,220V Stringing Block,Nylon Conductor Pulley |
||

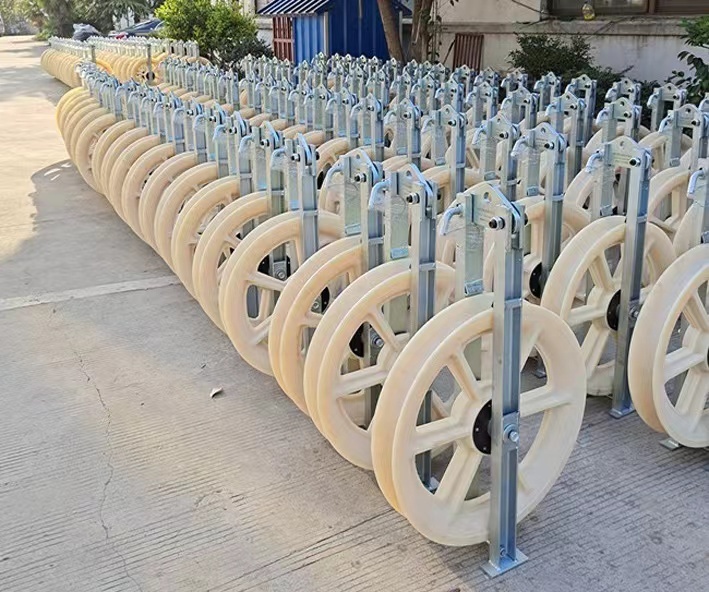

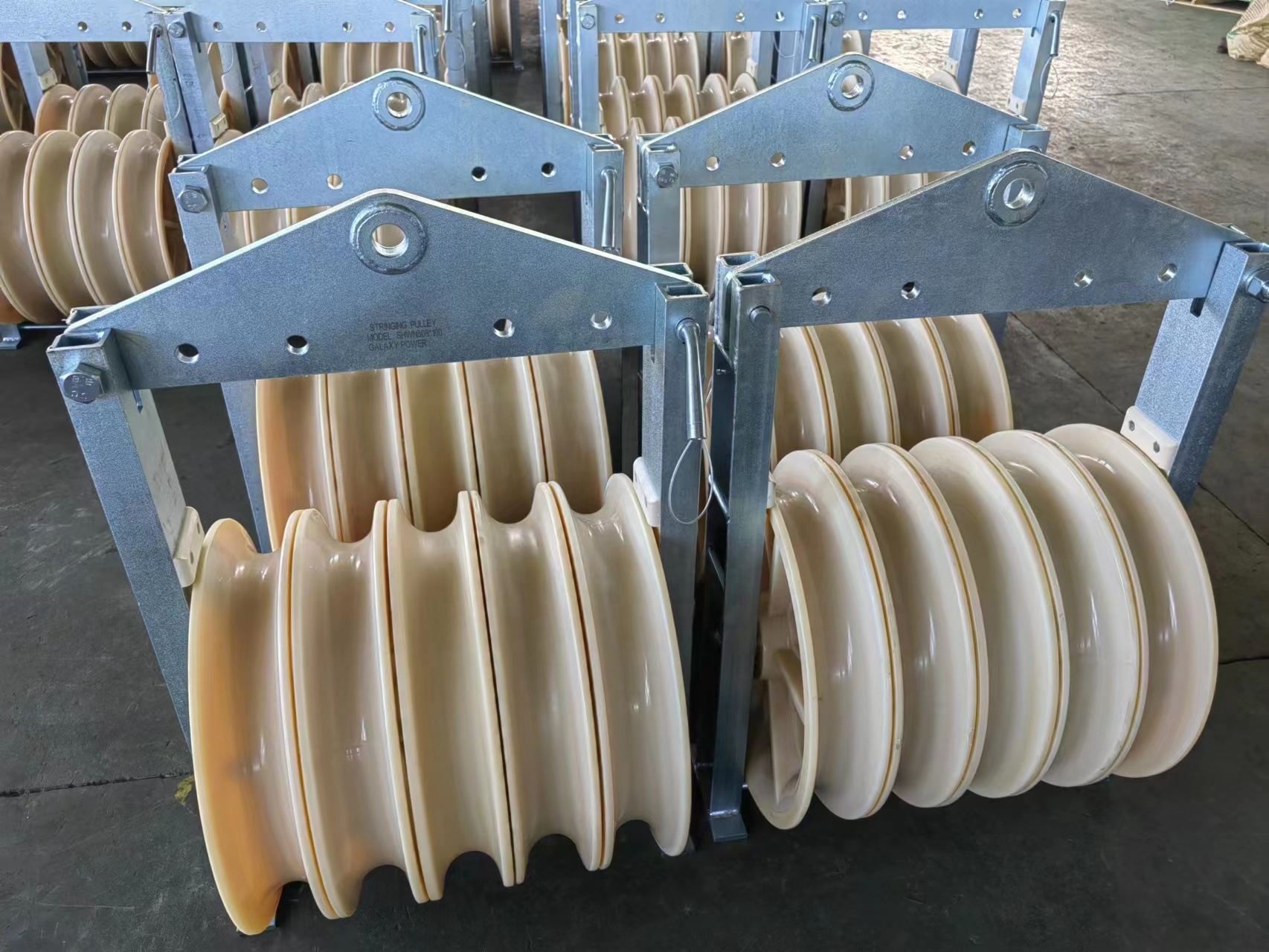

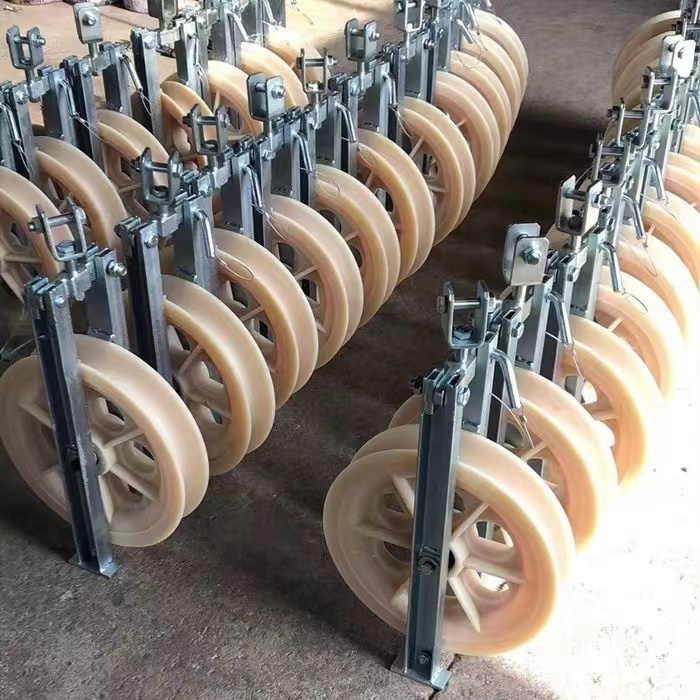

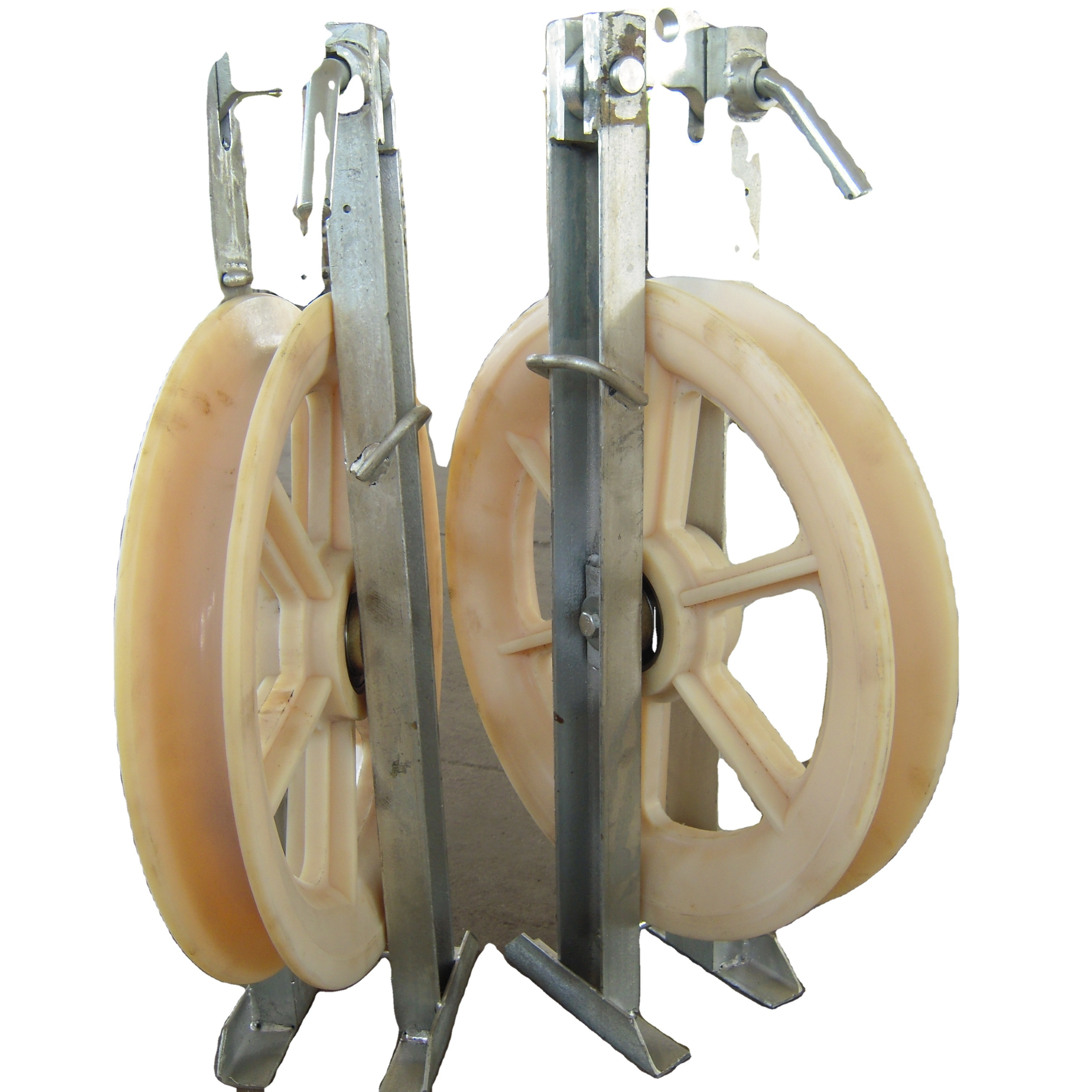

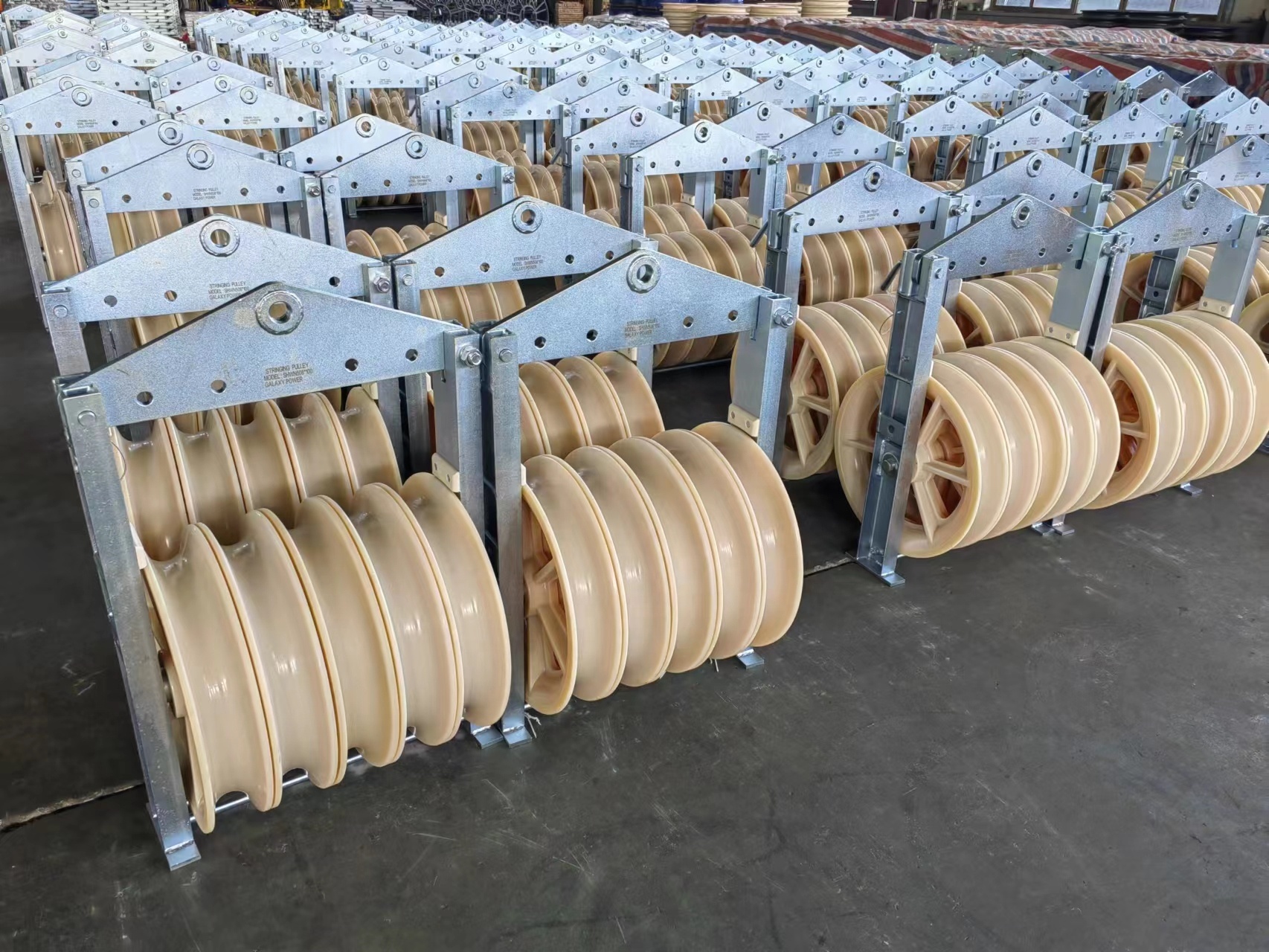

Our high-quality nylon cable pulleys are available in different diameter combinations for various conductor applications. These large diameter stringing blocks offer exceptional strength, flexibility, and durability while remaining lightweight and easy to use.
These cable pulleys protect cables and conductors from friction during installation, saving both time and effort in overhead transmission line construction.
We can manufacture all types of pulley blocks according to customer specifications. Contact us for more information about custom solutions tailored to your requirements.
| Model | Wheel Size (Diameter x Width mm) | Conductor Size (mm²) | Rated Load (kN) | Weight (kg) | Wheel Material |
|---|---|---|---|---|---|
| SHD-120X30 | 120x30 | 25~70 | 5 | 2.1 | Aluminum |
| SHD-160X40 | 160X40 | 95~120 | 10 | 3.1 | |
| SHD-200X40 | 200X40 | 150~240 | 15 | 3.7 | |
| SHD-200X60 | 200X60 | 150~240 | 15 | 4.1 | |
| SHD-250X40 | 250X40 | 150~240 | 20 | 5.1 | |
| SHD-250X60 | 250X60 | 300~400 | 20 | 5.4 | |
| SHD-270X60 | 270X60 | 300~400 | 20 | 6.7 | |
| SHD-320X60 | 320X60 | 300~400 | 20 | 10.4 | |
| SHD-400X80 | 400X80 | 400~500 | 20 | 11.9 | |
| SHDN-120X30 | 120x30 | 25~70 | 5 | 1.5 | Nylon |
| SHDN-160X40 | 160X40 | 95~120 | 10 | 2.3 | |
| SHDN-200X40 | 200X40 | 150~240 | 15 | 2.5 | |
| SHDN-200X60 | 200X60 | 150~240 | 15 | 3 | |
| SHDN-250X40 | 250X40 | 150~240 | 20 | 3.6 | |
| SHDN-250X60 | 250X60 | 300~400 | 20 | 3.8 | |
| SHDN-270X60 | 270X60 | 300~400 | 20 | 4.3 | |
| SHDN-320X60 | 320X60 | 300~400 | 20 | 7.5 | |
| SHDN-400X80 | 400X80 | 400~500 | 20 | 8 | |
| SHD-508X75 | 508X75 | ≤400 | 20 | 22.3 | Aluminum |
| SHD-660X100 | 660X100 | ≤500 | 20 | 30 | |
| SHDN-508X75 | 508X75 | ≤400 | 20 | 18 | Nylon |
| SHDN-660X100 | 660X100 | ≤500 | 20 | 20 | |
| SHDN-830X110 | 830X110 | ≤630 | 30 | 25 | |
| SHDN-916X110 | 916X110 | ≤800 | 50 | 45 | |
| SHDN-1040X125 | 1040X125 | ≤1000 | 55 | 105 |
Established in 2016, Galaxy Power Industry Limited is a manufacturer specializing in the research, development and production of Electric Power Machinery. We are a high-tech enterprise in China with products that comply with international quality standards and are appreciated in markets worldwide.
Our products are sold in Australia, Turkey, Mexico, Panama, Peru, Brazil, Egypt, Sudan, Kenya, Angola, Pakistan, and throughout China.
