60ft Galvanized Steel Utility Pole for Transmission Lines

Hình ảnh lớn : 60ft Galvanized Steel Utility Pole for Transmission Lines

Thông tin chi tiết sản phẩm:

Nguồn gốc:	Trung Quốc
Hàng hiệu:	MilkyWay
Chứng nhận:	ISO9001/BV/
Số mô hình:	Cột điện tiện ích

Thanh toán:

Số lượng đặt hàng tối thiểu:	1 PC
Giá bán:	Có thể đàm phán
chi tiết đóng gói:	như yêu cầu của khách hàng
Thời gian giao hàng:	20 ngày làm việc sau khi nhận được khoản thanh toán của bạn
Điều khoản thanh toán:	T/T, L/C tại tầm nhìn
Khả năng cung cấp:	300 chiếc mỗi ngày

Tiếp xúc

Chi tiết sản phẩm

Tên sản phẩm:	Cột thép tiện ích	Ứng dụng:	đường truyền
Thiết kế:	Tùy chỉnh	Xử lý bề mặt:	Mạ kẽm nhúng nóng
tiêu chuẩn hàn:	AWS D1.1	độ dày mạ điện:	Trung bình 86um
Vật liệu:	Q345
Làm nổi bật:	60ft galvanized steel utility pole , transmission line utility power pole , galvanized steel power pole with warranty

60ft Columniform Utility Power Poles for Electricity Distribution

Product Specifications

Attribute	Value
Product Name	Steel Utility Pole
Application	Transmission Line
Design	Customized
Surface treatment	Hot dip galvanization
Welding standard	AWS D1.1
Galvanization Thickness	Average 86um
Material	Q345

Galvanized 60ft Metal Utility Poles with 2 Cross Arm

Key Features

Application: Electricity distribution
Shapes Available: Conoid, Multi-pyramidal, Columniform, Polygonal or Conical
Materials: Q345B/A572 (minimum yield strength ≥345N/mm²), Q235B/A36 (≥235N/mm²), and other grades including Q460, ASTM573 GR65/GR50, SS400, SS490, ST52
Dimensional Tolerance: ±2%
Power Capacity: 10KV ~ 550KV
Safety Factors: 8 for both conducting wire and grounding wire
Design Load: 300~1000kg applied 50cm from pole top
Surface Treatment: Hot dip galvanized (ASTM A123), color polyester powder, or client-specified standard
Joint Types: Insert mode, inner flange mode, face-to-face joint mode
Structural Design: Earthquake resistant (8 grade), withstands wind speeds up to 160km/h (30m/s)
Material Strength: Minimum yield strength 355MPa, ultimate tensile strength 490-620MPa
Quality Standard: ISO 9001 certified
Welding: Internal and external double welding, AWS D1.1 standard, passed flaw testing

Material Description

1. Poles are manufactured from high-quality metal, molded into multi-row cone-shaped vertical steel bars with hot-dip galvanized anti-corrosion treatment.
2. Light plate frame is constructed from high-quality stainless steel.
3. Fastened with stainless steel bolts and nuts.

Production Process

Raw material test → Cutting → Bending → Longitudinal welding → Dimension verification → Flange welding → Hole drilling → Sample assembly → Surface cleaning → Galvanization/powder coating/painting → Recalibration → Packaging

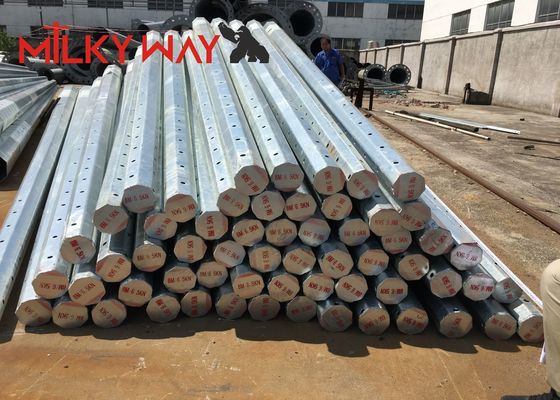

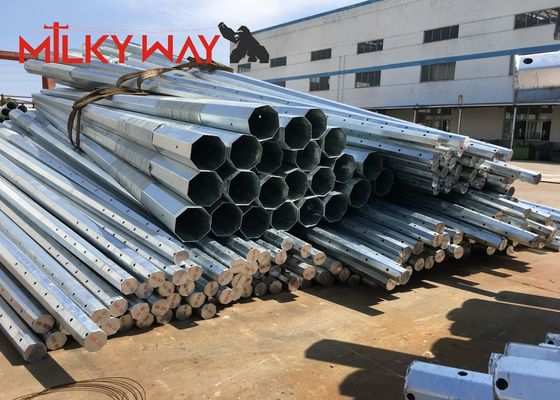

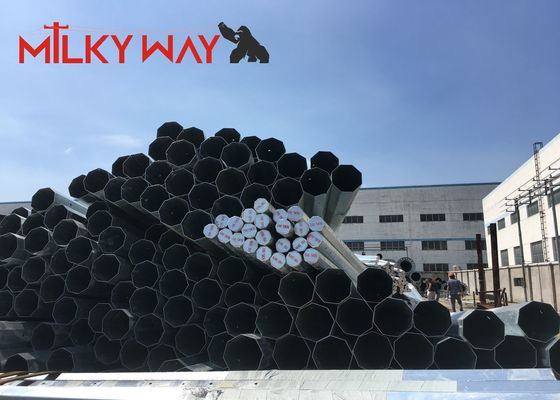

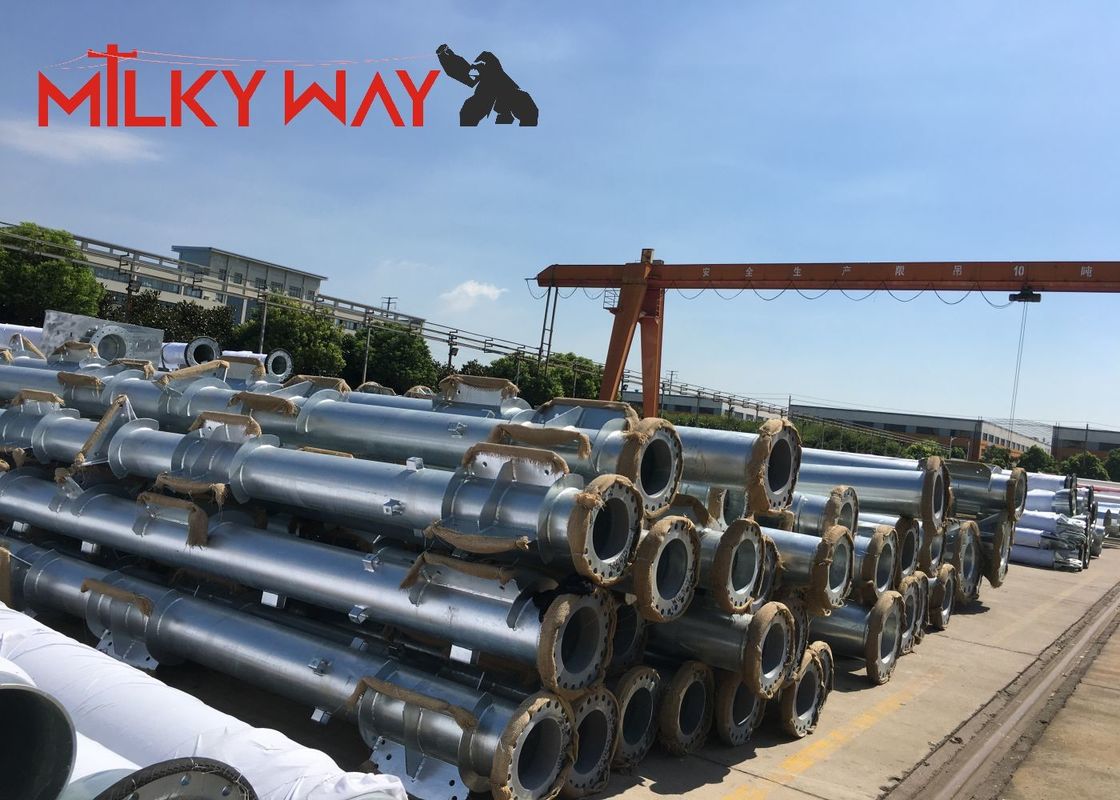

60ft Galvanized Steel Utility Pole for Transmission Lines 0

Company History

JiangSu Milky Way Steel Poles Co., Ltd. was established in 1988 and is located in Yixing City, Jiangsu Province. Covering 35,000 square meters with an annual output value of 200 million, we have 20+ years of experience in design and production. Our product range includes power poles, communication towers, street lighting poles, and steel brackets. We maintain strong technical capabilities, advanced production equipment, and a comprehensive quality management system, ensuring our products meet international advanced standards.
