Chúng ta Focous về chất lượng cao
Thông tin chi tiết sản phẩm:
Thanh toán:
|
| Quyền lực: | 10kv ~ 550kv | Kiểu: | cực thẳng, cực kéo, cực quay |
|---|---|---|---|
| Độ dày: | 1mm đến 30 mm | Tốc độ gió: | 160km / h, 30m / s |
| Lòng khoan dung: | +/- 2% | Tải trọng thiết kế tính bằng kg: | 300 ~ 1000 Kg áp dụng cho 50 cm từ cực đến |
| Điểm nổi bật: | cột thép mạ kẽm đa giác,cột thép mạ kẽm đa giác,cột thép mạ kẽm truyền tải điện |
||

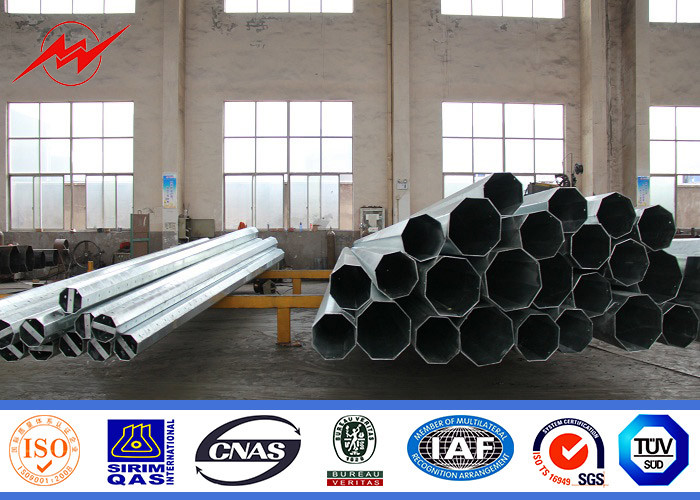

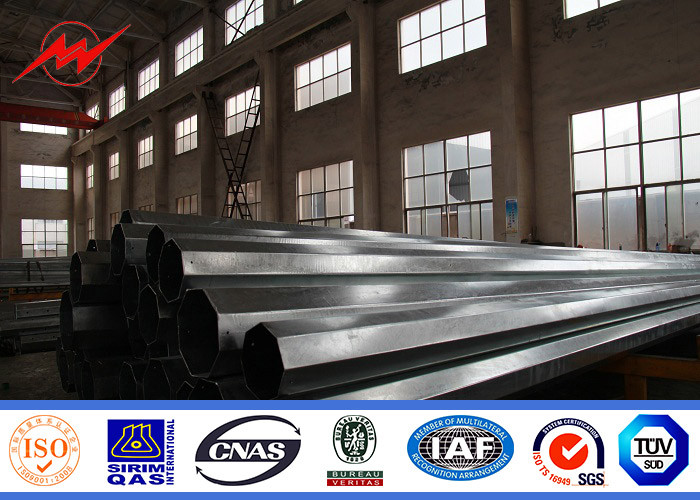

Round Tapered Polygonal Galvanised Steel Pole For Electrical Transmission
Specification
|
Material: |
high quality Q345 hot rolled steel |
|
Mounting Height: |
3-30m or according to the requirements of customers |
|
Shape of pole: |
Round,conical,octagonal,square,mid hinged,polygonal shafts are made of steel sheet that folded into required shape and welded longitudinally by automaticarc welding machine
|
|
Brackets: |
Single or double brackets are in the shape and dimension as per customers requirement |
|
Base plate: |
Base plate is square or round in shape with slotted holes for anchor bolt and dimension as per customers requirement
|
|
Groung mounted: |
The length buried underground as per customers requirement
|
|
Galvanizing:
|
Hot dip galvanization with thickness of 80-100µm average
|
|
Powder coating: |
Pure polyester powder painting, color is optional |

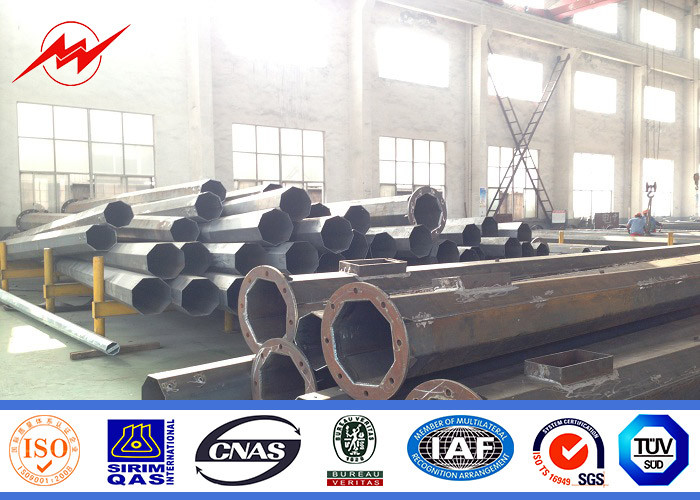

Production Process
Our factory own advance production line, machine including bending calibration machine, hydraulic plate shears machine, shears machine, slitting machine, 208T hydraulic straightener, etc. All the purpose is to produce good quality steel poles.
The fabrication process as cut plate, bending, forming, automatic welding, drill holes, quality check before galvanized, hot dip galvanized and powder coating, finally quality check according by client’s required.
Features
1. We can supply the product base on client required drawing ,but also can supply the design for any kinds of lamp poles ,electric poles ,street lighting poles, high mast poles ,garden light poles , outdoor lighting ,outdoor lighting poles ,flag poles ,traffic light poles ,lighting ,road lighting pole.
2. Matercial :hot rolled coil from Q235 to Q460 ,ASTM573 GR65, GR50 ,SS400, SS490,ST52-3
3. Deal: Hot dip galvanized Following ASTM A 123 or any other stardand by client required.
4. Packing: Plastic bulble , Mat &Straw Bale or following client required
5. Length : within 16meters once forming( single section)
6. Thickness: from 1mm to 25mm
7. Shape: polygonal(6-side,8side,12-side,16side) round tapered.
8. 110KV to 220kv
9. Easy install and maintenance.
