Waterproof Hot Dip Galvanization 9m Solar Light Poles for Highway Lighting

Hình ảnh lớn : Waterproof Hot Dip Galvanization 9m Solar Light Poles for Highway Lighting

Thông tin chi tiết sản phẩm:

Place of Origin:	China
Hàng hiệu:	MilkyWay
Chứng nhận:	ISO9001/BV/
Model Number:	Galvanized Steel Poles

Thanh toán:

Minimum Order Quantity:	1 pcs
Giá bán:	Negotiation
Packaging Details:	As customer request
Delivery Time:	20 working days after received your payment
Payment Terms:	T/T, L/C at sight
Supply Ability:	300pcs per day

Tiếp xúc

Chi tiết sản phẩm

Product Name:	Galvanized Steel Poles	Welding standard:	AWS D 1.1
Material:	Q235	Height:	3-15m
Warranty:	15 years	Thickness:	As the demands
Điểm nổi bật:	galvanised steel poles , power line pole

Hot Gip Galvanization 9m Solar Steel Poles Led Light for Highway Lighting

Specifications:

Height	From 3 m to 15 m
Suit for	Airport ,seaport,plaza,stadium ,square,highway, street way etc
Shape	Conoid ,Multi-pyramidal,Columniform,polygonal or conical
Material	Usually Q345B/A572,minimum yield strength>=345n/mm2 Q235B/A36,minimum yield strength>=235n/mm2 As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 , SS400, SS490, to ST52-
Lamp power	20 W- 400 W (HPS/MH) 220V (+-10%) /50Hz
Torlance of the dimenstion	+- 2%
Optical assembly of lighting fixture	IP 65
Electroshock resistant protective grade	Grade Ⅰ
The casing anti-corrosion performance	Class Ⅱ
Working atmosphere of lighting fixture	-35 ℃~+45 ℃
Surface treatment	Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required.
Joint of Poles	Insert mode,innerflange mode,face to face joint mode
Design of pole	Against earthquake of 8 grade
Wind Speed	160 Km/Hour
Minimum yield strength	355 mpa
Minimum ultimate tensile strength	490 mpa
Max ultimate tensile strength	620 mpa
Standard	ISO 9001
Length of per section	Within 14m once forming without slip joint
Welding	We has past flaw testing.Internal and external double welding makes the welding beautiful in shape Welding Standard :AWS ( American Welding Society ) D 1.1
Thickness	1 mm to 30 mm
Production Process	Rew material test → Cuttingj →Molding or bending → Welidng (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration → Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Packages
Packages	Our poles as normal cover by Mat or straw bale at the top and bottom , anyway also can following by client required , each 40HC or OT can loading how many pcs will calculation base on the client actually specification and data.
Style	Size and styles are veriable as per customer request

Steel
The material is in accordance with NF EN 10025
Standard and NF EN 10149 Standard,it has the following property.
- Yield Strength=355N/mm2
- Toughness remains the same under 20 degrees below zero.
- Galvanization is in accordance with NFA35503 Standard Class 1.

Galvanization
Standard:NFA91121
Average thickness of the galvanization:Not less than 86μm.

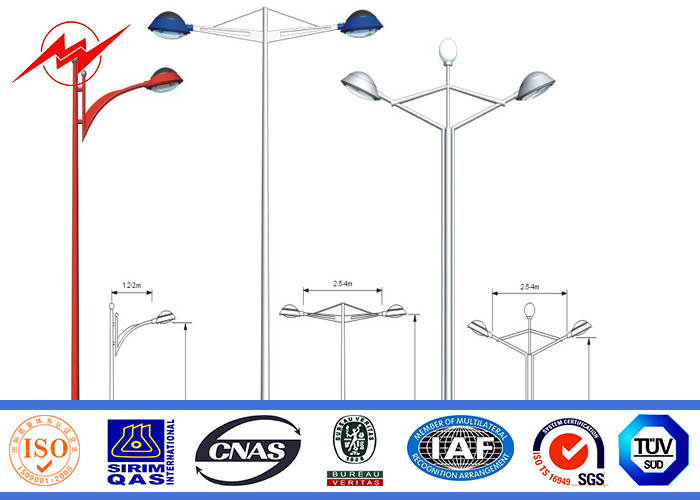

Waterproof Hot Dip Galvanization 9m Solar Light Poles for Highway Lighting 0

Application:
Highway Seamless Steel Pipe Park Seamless Steel Pipe
Main Roads Seamless Steel Pipe Dock Seamless Steel Pipe
Secondary Roads Seamless Steel Pipe Stadium Seamless Steel Pipe
Storage-yar Seamless Steel Pipe Overpass Seamless Steel Pipe
Industrial-Plant Seamless Steel Toll-Station Seamless Steel Pipe

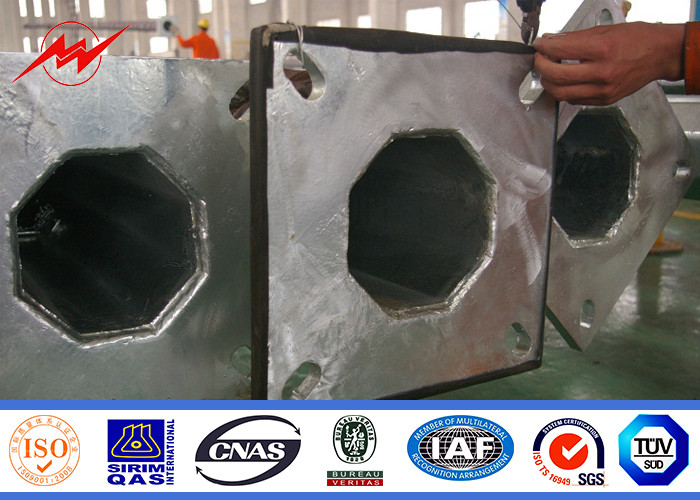

Waterproof Hot Dip Galvanization 9m Solar Light Poles for Highway Lighting 1

Company Introduction:
Jiangsu Milky Way Steel Poles which established on 1991 is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .
Our Company has 24 years experience on producing the steel poles including the transmission power pole,street light pole,high mast pole and so on.
We exported to oversea countries since 1991 and our products have been delivered to more than 70 countries and areas ,including America,Australia ,Russia ,Germany ,Span,Philippines ,Malaysia,Africa and so on.
We are the supplier of many big project in many countries,like the street light pole of Dubai Tower.the high mast pole for Sochi Winter Olympic Game and so on.

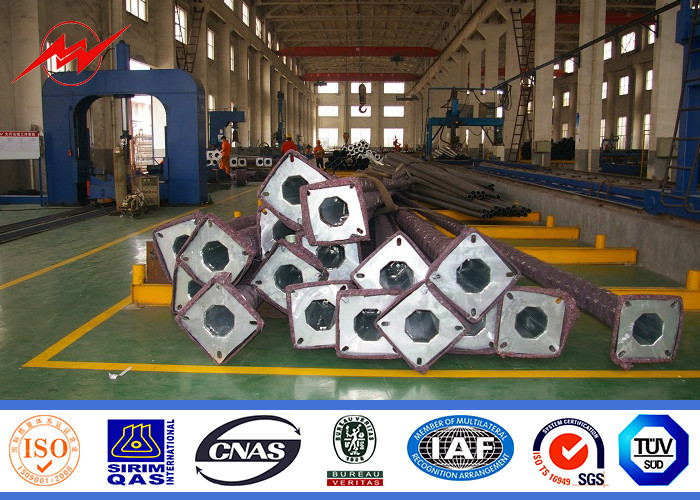

Waterproof Hot Dip Galvanization 9m Solar Light Poles for Highway Lighting 2
