Thông tin chi tiết sản phẩm:
|Product Name:||Mono Pole Tower||Application:||Communication Distrubution|
|Section:||Three sections||Height:||15m to 65m|
|Welding standard:||AWS D 1.1 /BS EN 1011-1,BS EN 1011-2||Galvanization standard:||ASTM A 123|
Round 100ft Mono Pole Tower Powder coating surface for mobile communication
|Series MP230||15-30 m||Telecommunication - designed for one operator|
|Series MP300||18-24 m||Telecommunication - designed for two operators|
|Series MP440||15-30 m||Telecommunication - designed for three operators|
|Series MP1500||30-48 m||Telecommunication - designed for four operators or 15 m2 of windages for antennas|
Milky Way offers a variety of pole types to meet your specific communication requirements. Flanged Steel Poles and Tapered Steel Poles feature designs that blend well into the environment and require minimum space for installation.
Two Different Type:
Flanged Steel Poles
Flanged Steel Poles are easy to handle and install. Precision fitted connections allow quick assembly of modular sections and the top platform, sidearms or mounting frame. Pole sections are available with identical base flange plates, allowing for simplified modifications of mounting heights and antenna reconfigurations when required.
Tapered Steel Poles
Tapered Steel Poles are designed with base diameters from 2 feet to 6 feet. These minimal site requirements lower lease costs. Tapered poles can be installed quickly, while meeting the demands of GSM PCS, GSM cellular, and other applications. All poles are hot dipped galvanized for long lasting corrosion protection and with unmatched attention to detail and design, these poles offer extremely efficient strength to cost ratio.
infinitely rotatable mounting frame or platform
variety of types, for different applications
eights in excess of 200 feet
Mono Pole Tower Design
Monopole Towers are used for a variety of communication applications and are ideal for use when zoning is difficult. They are the least intrusive and easiest communication towers to erect making them one of the most popular tower types in the wireless communication industry. Monopoles can also be designed as concealment poles: pine poles, flag poles, palm poles and other stealth towers. Many uses include cellular monopoles, wireless internet monopoles, homeland security monopoles, two-way monopoles, and wind tower monopoles
Recommended Use for Flange Monopole Towers:
Video Surveillance Equipment
Traffic Control Cameras
Crime Prevention Video Surveillance
Mono Pole Tower Product

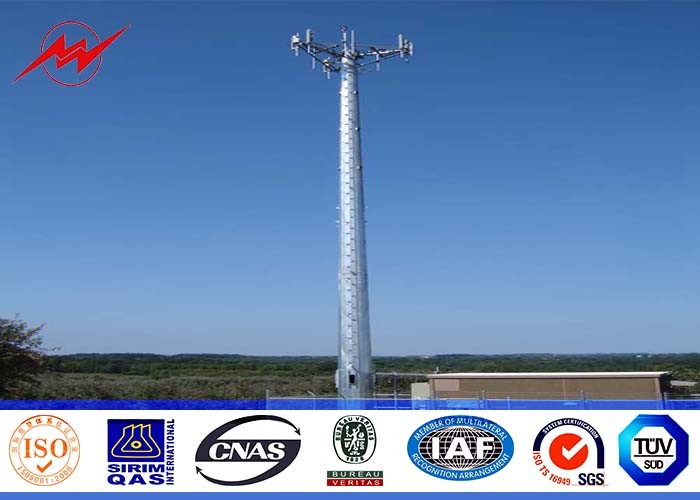

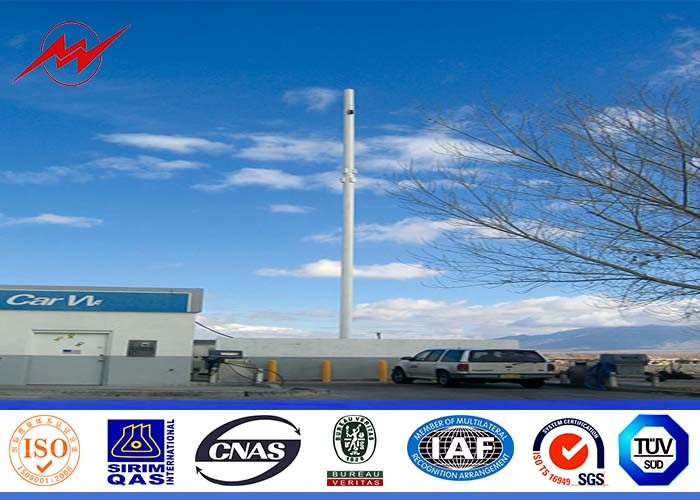

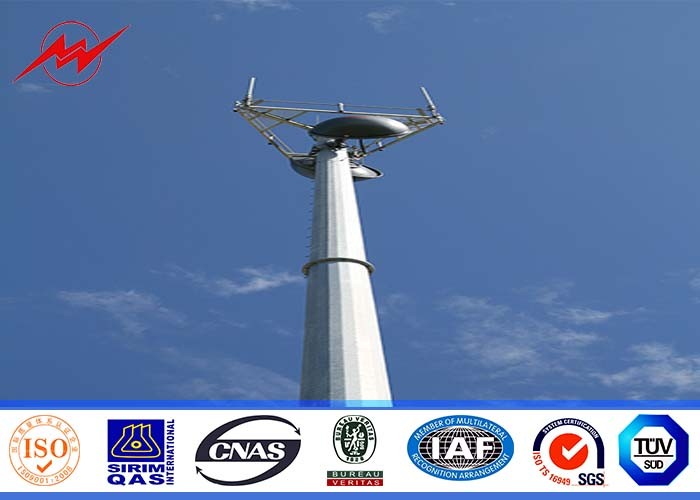

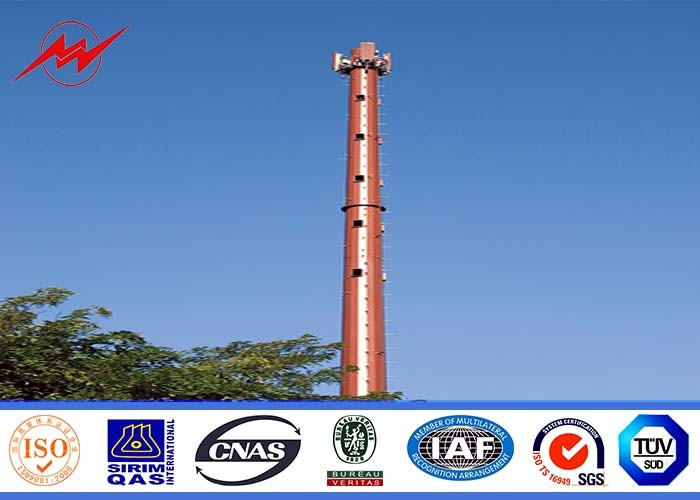

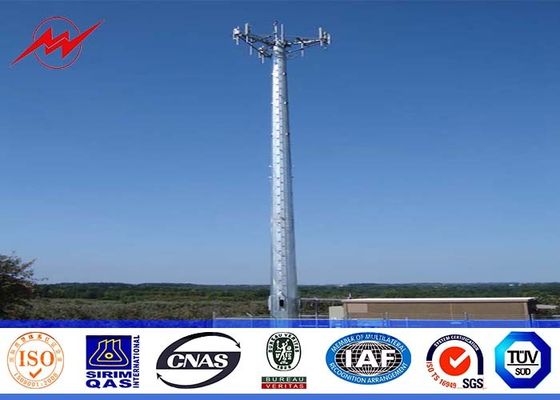

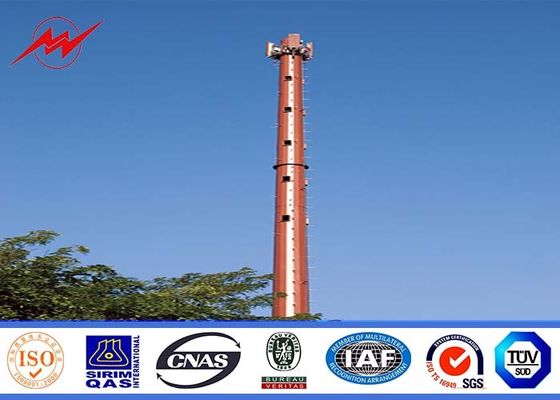

Installation On Site
Monopoles provide an alternate solution for antenna mounting because of their limited space requirement and their aesthetically pleasing design.
Monopoles are generally fabricated from hot dipped galvanized high strength structural steel in a continuous even taper with no bolted joints or sectional splices.
Monopole towers typically can be installed up to 250′ high using a concrete foundation.
