Single Side Lighting 35M HDG High Mast Park Light Pole with 6 Lamps

Trung Quốc Single Side Lighting 35M HDG High Mast Park Light Pole with 6 Lamps nhà cung cấp
Single Side Lighting 35M HDG High Mast Park Light Pole with 6 Lamps nhà cung cấp Single Side Lighting 35M HDG High Mast Park Light Pole with 6 Lamps nhà cung cấp Single Side Lighting 35M HDG High Mast Park Light Pole with 6 Lamps nhà cung cấp Single Side Lighting 35M HDG High Mast Park Light Pole with 6 Lamps nhà cung cấp

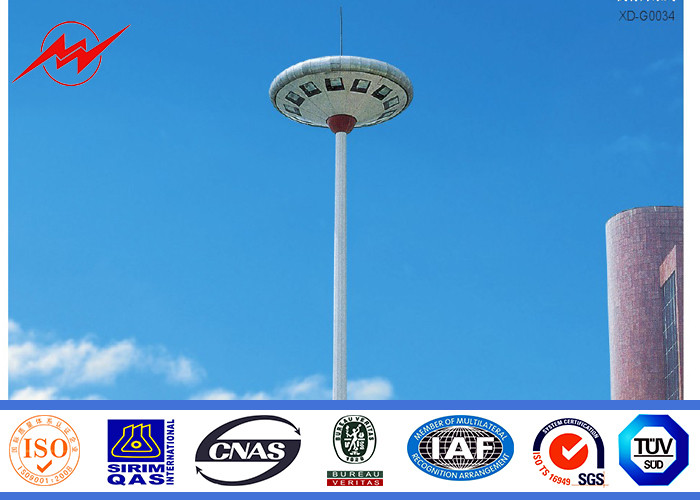

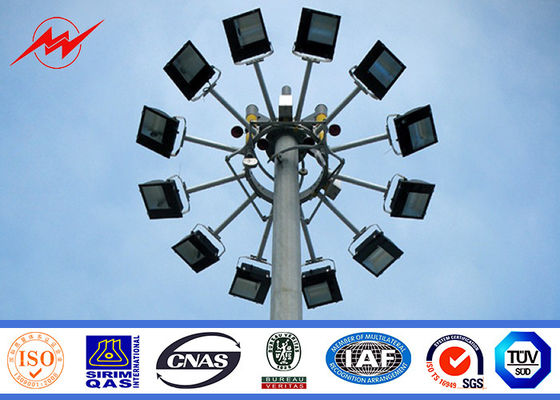

Hình ảnh lớn :  Single Side Lighting 35M HDG High Mast Park Light Pole with 6 Lamps

Thông tin chi tiết sản phẩm:

Place of Origin: China
Hàng hiệu: MilkyWay
Chứng nhận: ISO9001/BV/
Model Number: High Mast Pole

Thanh toán:

Minimum Order Quantity: 1 pcs
Giá bán: Negotiation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
Tiếp xúc
Chi tiết sản phẩm
Product Name: High Mast Pole Application: Airport Lighting
Wind Speed: 33m/s Galvanization Thickness: Average 86μm
Thickness: 1 mm to 30 mm Torlance of dimenstion: +- 2%
Điểm nổi bật:

high mast lighting pole

,

Park Light pole

 Single Side Lighting 35M HDG High Mast Pole with 6 Lamps for Airport Lighting


 Specifications:


HeightFrom 20 m to 50 m
Suit for

Airport ,seaport,plaza,stadium ,square,highway,
street way etc

Shape Conoid ,Multi-pyramidal,Columniform,polygonal or conical
Material

Usually Q345B/A572,minimum yield strength>=345n/mm2
              Q235B/A36,minimum yield strength>=235n/mm2
As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400,
SS490, to ST52-

Torlance of the dimenstion+- 2%
Power400  W- 5000 W
Light panel

Various figure of slection ,material with hot dip galvanization steel
frame ,stainless steel ,special aluminum plate

Light ExtensionUp to 30 000 m2
Lamp &Luminaire

Projector generally to be applied with safety grade IP65
Luminaire with high pressure sodium lamp of long lift and
high lighting efficiency ,or metal halide lamp with high CRI

Lifting system

Lifter fixed in the inner of the pole with lifting speed of 3~5
meter per minute Euqiped e;ectromagnetism brake and break –proof
device,manual opeation applied under power cut

Electric appliance control device

Electric appliance box to be be the holde of the pole ,lifting operation
could be 5 meter away from the pole through wire
Time control and light control could be equipped to realize full-load
lighting mode and part lighitng mode

Surface treatment

Hot dip galvanized Following ASTM A 123,
color polyester power or any other standard by client required.

Joint of PolesInsert mode,innerflange mode,face to face joint mode
Design of poleAgainst earthquake of 8 grade
Wind Speed160 Km/Hour
Minimum yield strength355 mpa
Minimum ultimate tensile strength490 mpa
Max ultimate tensile strength620 mpa
Standard ISO 9001
Length of per sectionWithin 14m once forming without slip joint
Welding

We has past flaw testing.Internal and external double welding makes
the welding beautiful in shape
Welding Standard :AWS ( American Welding Society ) D 1.1

Thickness1 mm to 30 mm
Production Process

Rew material test → Cuttingj →Molding or bending →
Welidng (longitudinal )→Dimension verify →Flange welding
→Hole drilling →Calibration → Deburr→Galvanization or
powder coating ,painting →Recalibration →Thread →Packages

Packages

Our poles as normal cover by Mat or straw bale at the top and bottom ,
anyway also can following by client required , each 40HC or OT can
loading how many pcs will calculation base on the client actually
specification and data.

Style

Aerial clog could be installed complied with clients desire to carry
camera or industrial antenna



 Production Flow:
 The production process:Row material test → Cutting →Molding or bending →Welding (longitudinal  )→Dimension verify →Flange welding→Hole drilling →Calibration → Deburr→Galvanization or powder  coating ,painting →Recalibration →Thread →Packages

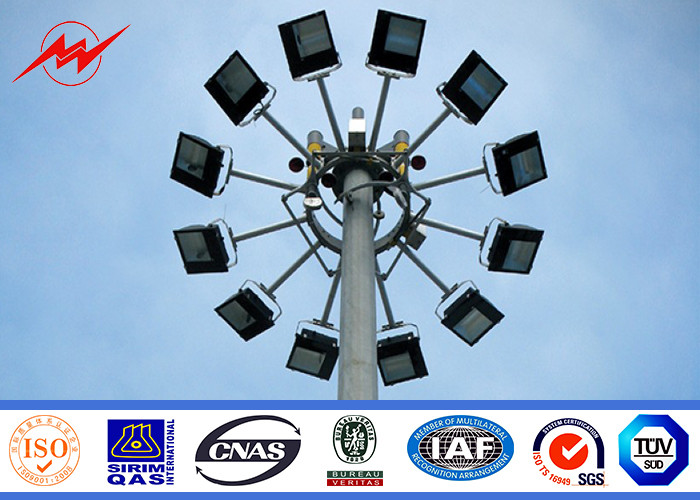

 Single Side Lighting 35M HDG High Mast Park Light Pole with 6 Lamps 0



 Galvanization
 Standard:NFA91121
 Average thickness of the galvanization:Not less than 86μm.
 Manufacture Tolerance
 -Component Length:-25mm to 75mm
 -Straightness:2mm/m
 -Twisting degree:1°per 3 meters length
 -Ovalisation:Maximum is 3%
 -The average diameter:+/-0.5%
 -Slip length:+/-150mm

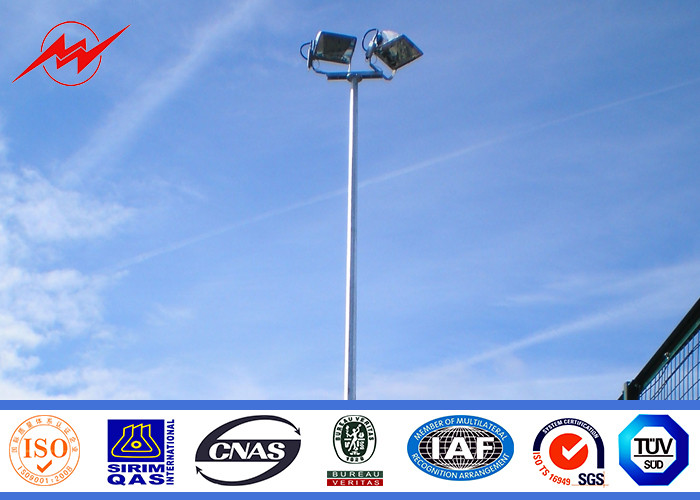

 Single Side Lighting 35M HDG High Mast Park Light Pole with 6 Lamps 1

 More Photos:

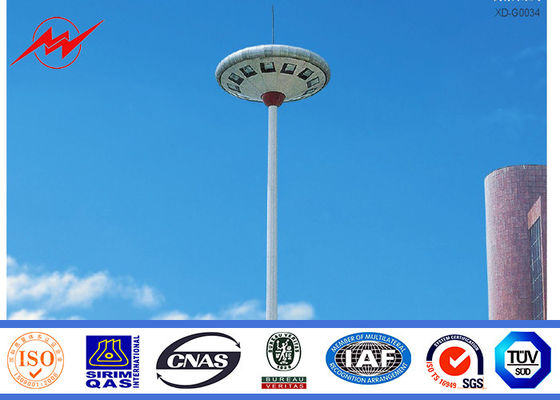

 Single Side Lighting 35M HDG High Mast Park Light Pole with 6 Lamps 2

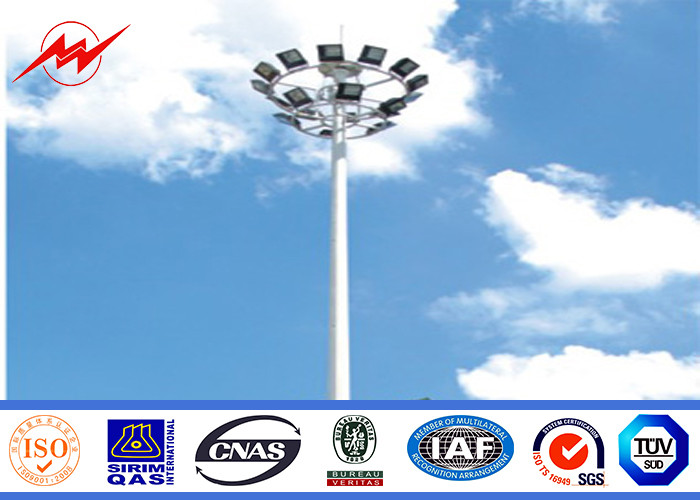

 Single Side Lighting 35M HDG High Mast Park Light Pole with 6 Lamps 3
