S500MC Hot Dip Galvanized Steel Electrical Utility Poles For Transmission Line

Chứng nhận
Trung Quốc Jiangsu milky way steel poles co.,ltd Chứng chỉ
Trung Quốc Jiangsu milky way steel poles co.,ltd Chứng chỉ
Dear Sirs, Hereby we confirm that JiangSu MilkyWay steel poles co., ltd is our partner for several years. Since that time this company has shown itself as reliable supplier of qualitative products.We also would like to note that they provide top level service and all kinds of support.We plan to continue our fruitful cooperation co-operation for many years more.

—— Abacus

We do hereby certify the 69 KV transmmision line steel pole(from 25ft to 90 ft ) manufacuterd by Jiangsu Milky Way Steel Poles Co., Ltd since 2010.We are satisfied with their quality,service and the ways and attention they showed toward our order.

—— National Electricity Company

Tôi trò chuyện trực tuyến bây giờ

S500MC Hot Dip Galvanized Steel Electrical Utility Poles For Transmission Line

Trung Quốc S500MC Hot Dip Galvanized Steel Electrical Utility Poles For Transmission Line nhà cung cấp
S500MC Hot Dip Galvanized Steel Electrical Utility Poles For Transmission Line nhà cung cấp S500MC Hot Dip Galvanized Steel Electrical Utility Poles For Transmission Line nhà cung cấp S500MC Hot Dip Galvanized Steel Electrical Utility Poles For Transmission Line nhà cung cấp S500MC Hot Dip Galvanized Steel Electrical Utility Poles For Transmission Line nhà cung cấp

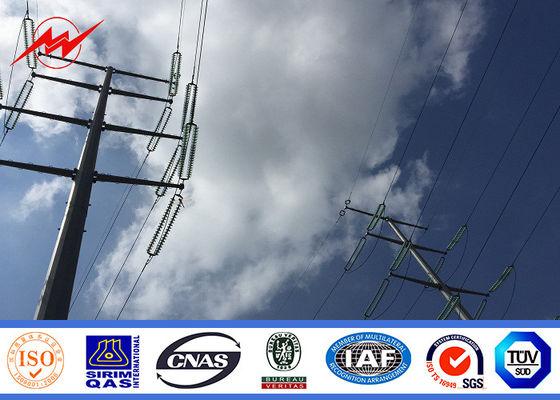

Hình ảnh lớn :  S500MC Hot Dip Galvanized Steel Electrical Utility Poles For Transmission Line

Thông tin chi tiết sản phẩm:

Place of Origin: Jiangsu,China
Hàng hiệu: Milky Way
Chứng nhận: /BV/ISO9001
Model Number: Steel Utility Pole

Thanh toán:

Minimum Order Quantity: 1 pcs
Giá bán: Negotiation
Packaging Details: As customers' request
Delivery Time: 10-30 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 30,000 Tons per month
Tiếp xúc
Chi tiết sản phẩm
Type: 11.8m S500MC Hot Dip Galvanized Steel Utility Pole 6mm Wall Thickness For Transmission Line Shape: Round,Conical
Payment Terms: T/T,L/C Thickness: 2.5mm-16mm
Surface Finished: Hot Dip Galvanized Standard: /BV/ISO9001
Điểm nổi bật:

metal utility poles

,

electric telescoping pole

11.8m S500MC Hot Dip Galvanized Steel Utility Pole 6mm Wall Thickness For Transmission Line





Features:



 Pole’s height

All available

Type

Straight Pole ,Tensile Pole ,Turn Pole,etc

Shape of pole

Conical, Round, Polygonal---Octagonal, Dodecagonal, Hexadecagonal, etc

Crossarm

 Single or double crossarm, dimension as per customers’ requirement

Material

Steel materials conform to ASTM A36,

Q235 equivalent to SS400, S235JO. Q345 equivalent to S355JR,Grade 50

Q460 equivalent to S460, Grade 65

 Wall thickness

≥2.5mm

Once forming

13m without joint



Welding

Welding complies with CSA and AWS, AWS D1.1 standard.

The welders have got corresponding certificate after testing and inspection.

 Joint

 Joint with insert mode, flange mode.

Base plate mounted

Base plate is square or round with slotted holes for anchor bolt and dimension as per client’s requirement.

 Galvanizing

Hot dip galvanization in accordance with Chinese standard GB/T 13912-2002 orAmerican standard ASTM A123.

Voltage

 10KV~550KV

Certificates

 ISO9001-2008 , AAA credit rating, etc

Protection

Anti-corrosion and rust free – suitable for coastal area, desert, oil field and industrial area





Packing & shipping





We use sack package the poles or straw at the pole top and bottom which is our normal package. We also use wood between the poles but cost just little higher than normal package. We normally use 40HQ container and our Port limit weight for 40HQ is 26Ton.



S500MC Hot Dip Galvanized Steel Electrical Utility Poles For Transmission Line 0







Our Servises:





1.Reply your inquiry in 24 working hours.



2. Experienced staffs answer all your questions in fluent English.



3. Customized design is available. UEM&UBM are welcomed.



4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.



5. Special discount and protection of sales are provided to our distributor.



6. Professional factory : We are manufacturer, specializing in producing all kinds of steel poles for more than 20 years, competitive with good quantity.



 7 Sample: We can send out sample for test in one week if the order quantity is big enough. But the shipment charges is usually paid by your side, the charges will be rebounded when we have formal order.



8. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature. Welcome to contact us or visit our company.
