Outdoor Tapered Transmission Line Steel Power Pole with Channel Steel Cross Arm

Trung Quốc Outdoor Tapered Transmission Line Steel Power Pole with Channel Steel Cross Arm nhà cung cấp
Outdoor Tapered Transmission Line Steel Power Pole with Channel Steel Cross Arm nhà cung cấp Outdoor Tapered Transmission Line Steel Power Pole with Channel Steel Cross Arm nhà cung cấp Outdoor Tapered Transmission Line Steel Power Pole with Channel Steel Cross Arm nhà cung cấp Outdoor Tapered Transmission Line Steel Power Pole with Channel Steel Cross Arm nhà cung cấp

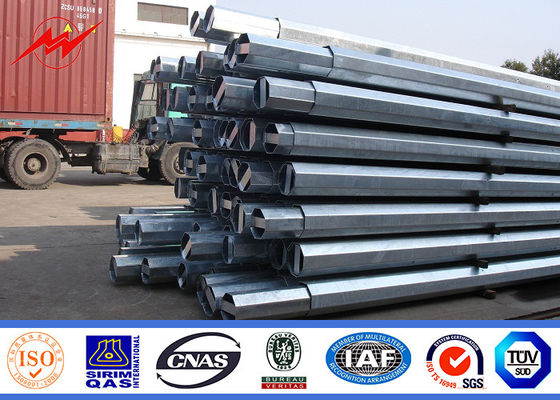

Hình ảnh lớn :  Outdoor Tapered Transmission Line Steel Power Pole with Channel Steel Cross Arm

Thông tin chi tiết sản phẩm:

Place of Origin: China
Hàng hiệu: MilkyWay
Chứng nhận: ISO9001/BV/
Model Number: Electric Steel Power Pole

Thanh toán:

Minimum Order Quantity: 1 pcs
Giá bán: Negotiation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
Tiếp xúc
Chi tiết sản phẩm
Product Name: Electric Galvanized steel Pole Application: Distribution Line
Material: SteelQ235,Q345 Minimum yield strength: 355 mpa
Max ultimate tensile strength: 620 mpa Wall thickness: 1mm-36mm
Điểm nổi bật:

electric utility poles

,

steel utility poles

 Outdoor Tapered 110 KV Transmission Line Steel Power Pole with Channel Steel Cross Arm





 Steel
 The material is in accordance with NF EN 10025
 Standard and NF EN 10149 Standard,it has the following property.
 -Yield Strength=355N/mm2
 -Toughness remains the same under 20 degrees below zero.
 -Galvanization is in accordance with NFA35503 Standard Class 1.

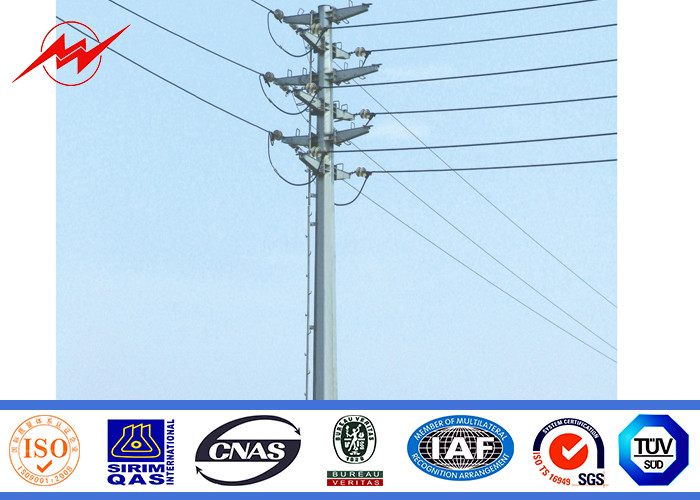

 Outdoor Tapered Transmission Line Steel Power Pole with Channel Steel Cross Arm 0





 Specification:



Suit for Electricity distribution
Shape Conoid ,Multi-pyramidal,Columniform,polygonal or conical
Material Usually Q345B/A572,minimum yield strength>=345n/mm2
Q235B/A36,minimum yield strength>=235n/mm2
As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400,
SS490, to ST52-
Torlance of the dimenstion +- 2%
Power 10 KV ~550 KV
Safety Factor Safety factor for conducting wine : 8
Safety factor for grounding wine : 8
Design Load in Kg 300~ 1000 Kg appliced to 50cm from the to pole
Marks Nane palte through rivert or glue ,engrave ,emboss as per customer requirement
Surface treatment Hot dip galvanized Following ASTM A 123,
color polyester power or any other standard by client required
Joint of Poles Insert mode,innerflange mode,face to face joint mode
Design of pole Against earthquake of 8 grade
Wind Speed 160 Km/Hour . 30 m /s
Minimum yield strength 355 mpa
Minimum ultimate tensile strength 490 mpa
Max ultimate tensile strength 620 mpa
Standard ISO 9001
Length of per section Within 14m once forming without slip joint
Welding We has past flaw testing.Internal and external double welding makes
the welding beautiful in shape
Welding Standard :AWS ( American Welding Society ) D 1.1
Thickness 1 mm to 30 mm
Production Process Rew material test → Cuttingj →Molding or bending →
Welidng (longitudinal )→Dimension verify →Flange welding
→Hole drilling →Calibration → Deburr→Galvanization or
powder coating ,painting →Recalibration →Thread →Packages

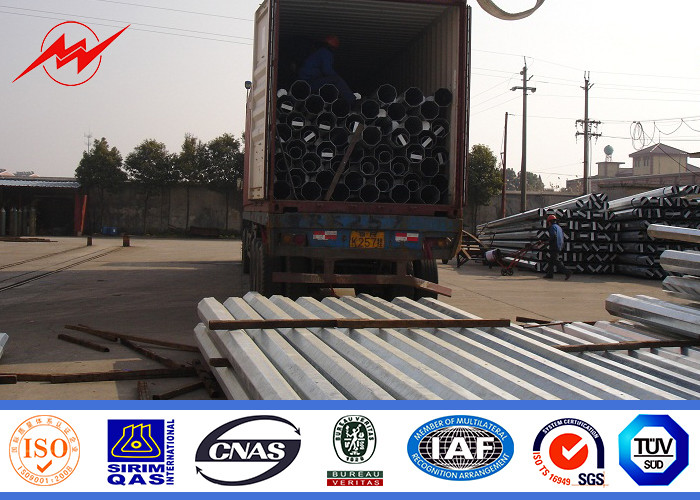

Packages Our poles as normal cover by Mat or straw bale at the top and bottom ,
anyway also can following by client required , each 40HC or OT can
loading how many pcs will calculation base on the client actually
specification and data





 Welding
 We have past flaw testing. Internal and external double welding makes the welding beautiful in shape
 Welding Standard :AWS ( American Welding Society ) D 1.1





Galvanization
Standard:NFA91121/ASTM A123
Average thickness of the galvanization:Not less than 86μm.

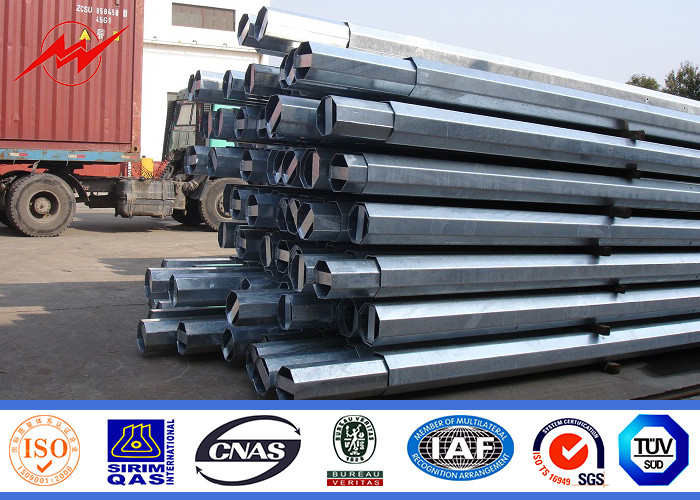

 Outdoor Tapered Transmission Line Steel Power Pole with Channel Steel Cross Arm 1



 Installation
 -Remove all the equipment on the pole during Assembly.
 -Circle a sling around th epole shaft of each section.
 -Fix the sling on top section to one pulley block.
 -The sling on the bottom section is tightly fixed and fixed at the center of gravity.
 -Make the steel pole vertical by tighten the sling of the top section.
 -Fix the steel pole.
 -Remove the sling.

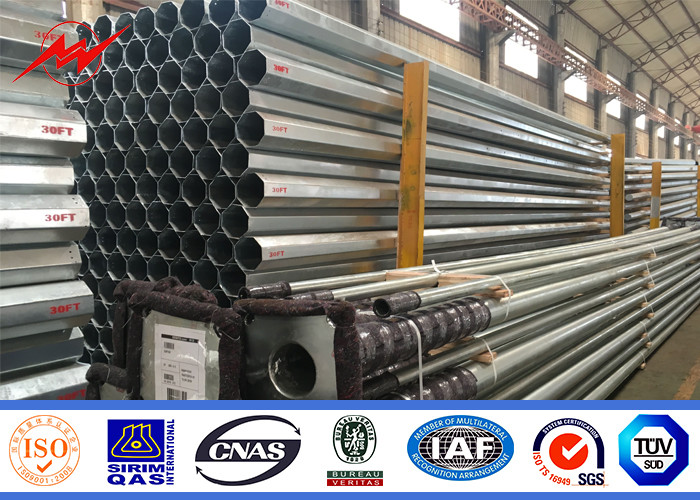

 Outdoor Tapered Transmission Line Steel Power Pole with Channel Steel Cross Arm 2







 Quality Control
 We strictly follow the standard of ISO9001-2008. Quality is in the first place at every stage of production  to ensure the product compliance to the specification/standards. Careful inspections are carried out by  highly trained inspection engineers during every procedure from raw material stage to finished product  and delivery.
