Outdoor Polygonal Q345 Material 30FT Electric Power Pole 1 Section

Chứng nhận
Trung Quốc Jiangsu milky way steel poles co.,ltd Chứng chỉ
Trung Quốc Jiangsu milky way steel poles co.,ltd Chứng chỉ
Dear Sirs, Hereby we confirm that JiangSu MilkyWay steel poles co., ltd is our partner for several years. Since that time this company has shown itself as reliable supplier of qualitative products.We also would like to note that they provide top level service and all kinds of support.We plan to continue our fruitful cooperation co-operation for many years more.

—— Abacus

We do hereby certify the 69 KV transmmision line steel pole(from 25ft to 90 ft ) manufacuterd by Jiangsu Milky Way Steel Poles Co., Ltd since 2010.We are satisfied with their quality,service and the ways and attention they showed toward our order.

—— National Electricity Company

Tôi trò chuyện trực tuyến bây giờ

Outdoor Polygonal Q345 Material 30FT Electric Power Pole 1 Section

Trung Quốc Outdoor Polygonal Q345 Material 30FT Electric Power Pole 1 Section nhà cung cấp
Outdoor Polygonal Q345 Material 30FT Electric Power Pole 1 Section nhà cung cấp Outdoor Polygonal Q345 Material 30FT Electric Power Pole 1 Section nhà cung cấp Outdoor Polygonal Q345 Material 30FT Electric Power Pole 1 Section nhà cung cấp Outdoor Polygonal Q345 Material 30FT Electric Power Pole 1 Section nhà cung cấp

Hình ảnh lớn :  Outdoor Polygonal Q345 Material 30FT Electric Power Pole 1 Section

Thông tin chi tiết sản phẩm:

Place of Origin: China
Hàng hiệu: MilkyWay
Chứng nhận: ISO9001/BV/
Model Number: Electric Power Pole

Thanh toán:

Minimum Order Quantity: 1 pcs
Giá bán: Negotiation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
Tiếp xúc
Chi tiết sản phẩm
Product Name: Electric Power Pole Application: Power Transmission
Galvanization standard: Hot dip galvanization Lift time: 50 years
Warranty: 15 years Design: Customized
Standard: ISO
Điểm nổi bật:

electric power pole

,

transmission line poles

Outdoor Polygonal Q345 Material 30FT Electric Power Pole 1 Section





 Specifications:



Material

Usually Q345B/A572,minimum yield strength>=345n/mm2
Q235B/A36,minimum yield strength>=235n/mm2
As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400,
SS490, to ST52-

Design Load in Kg

300~ 1000 Kg applied to 50cm from the to pole

Marks

Name plate through rivert or glue ,engrave ,emboss as per customer requirement

Surface treatment

Hot dip galvanized
color polyester power or any other standard by client required

Joint of Poles

Insert mode,inner flange mode,face to face joint mode

Design of pole

Against earthquake of 8 grade

Minimum yield strength

355 mpa

Minimum ultimate tensile strength

490 mpa

Max ultimate tensile strength

620 mpa

Length of per section

Within 14m once forming without slip joint

Welding

We has past flaw testing.Internal and external double welding makes
the welding beautiful in shape
Welding Standard :AWS ( American Welding Society ) D 1.1

Thickness

1 mm to 30 mm





 Production Flow:
 The production process:Row material test → Cutting →Molding or bending →Welding (longitudinal )→Di  mension verify →Flange welding→Hole drilling →Calibration → Deburr→Galvanization or powder coating  ,painting →Recalibration →Thread →Packages

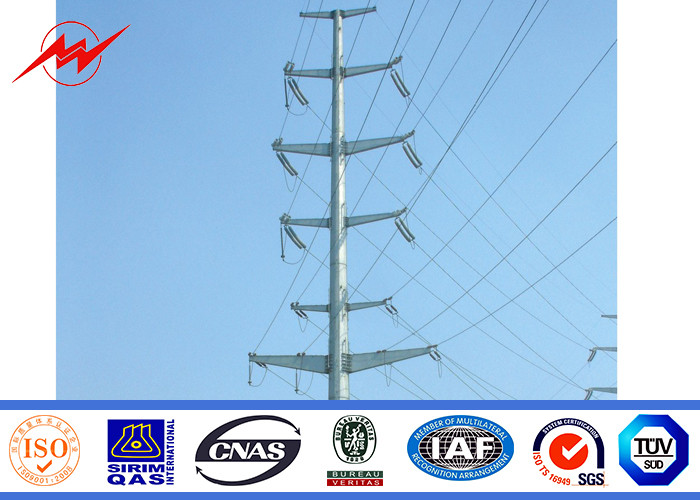

 Outdoor Polygonal Q345 Material 30FT Electric Power Pole 1 Section 0

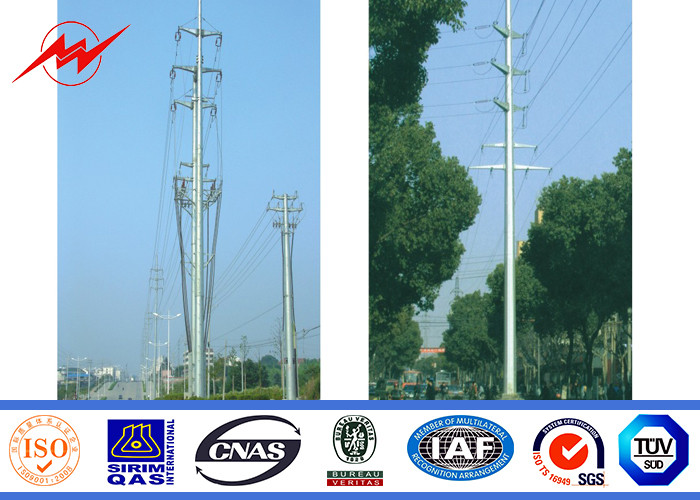

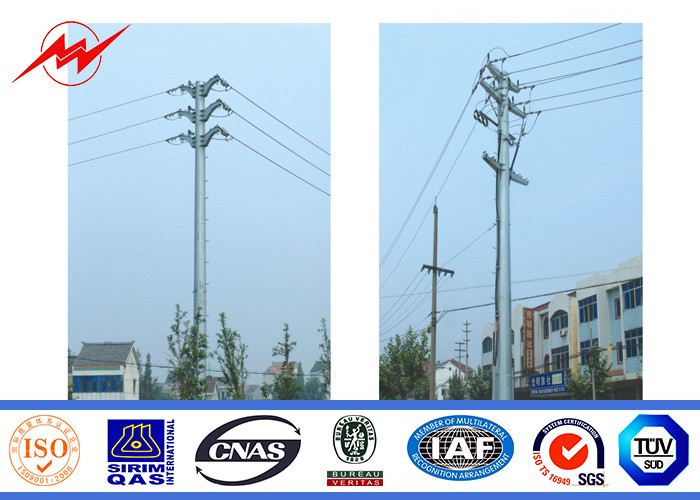

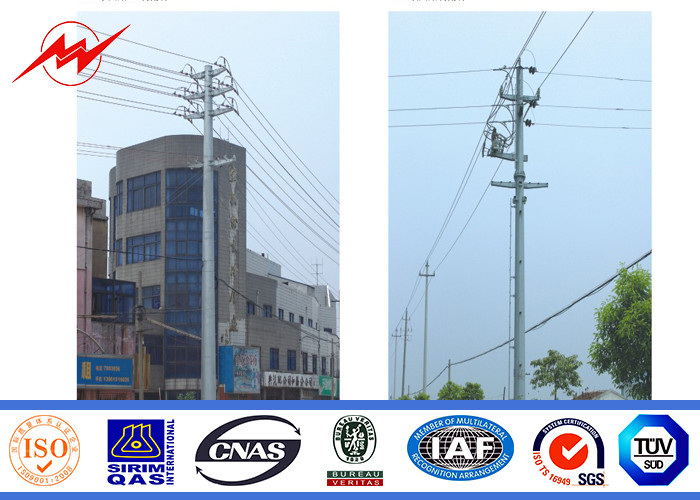

 More Photos:





 Outdoor Polygonal Q345 Material 30FT Electric Power Pole 1 Section 1





 Company History:
 Jiangsu Milky Way Steel Poles which established on 1991 is located in Wuxi,East of China ,near one of  the largest sea port of China ,Shanghai,Port .

 After 20 years of development, our company products are exported to overseas. Pakistan, Germany,  Nigeria, Singapore, New Zealand, India, the Philippines, Australia and so on, we have shared a broad  market.Our products are well knowed. Now the capataity of Exports has taken 40% of company sales,  which made us become one of the leading export enterprises in china.





 Outdoor Polygonal Q345 Material 30FT Electric Power Pole 1 Section 2
