Thông tin chi tiết sản phẩm:
Thanh toán:
|
| Application: | construction ,industry | Type: | Equal or Unequal |
|---|---|---|---|
| Capability: | 500tons per day | Dimensions: | 20*20*3mm-200*200*24mm or customized |
| Model Number: | Q235/Q345/SS400/S235/S275, ss400 | Length: | customized |
| Điểm nổi bật: | galvanised angle iron,galvanized steel angle iron |
||

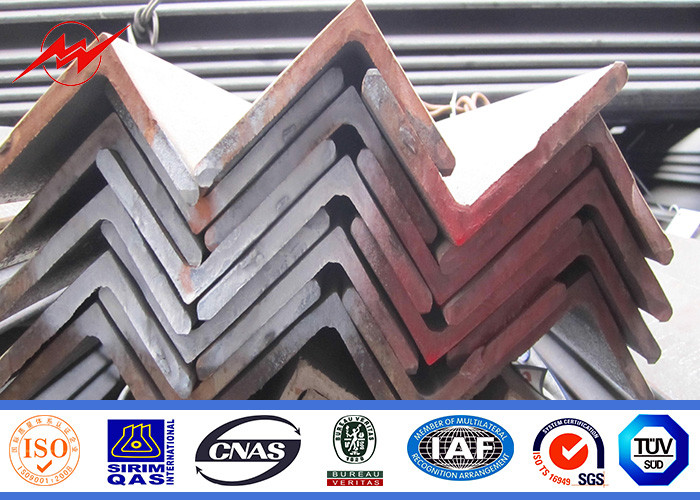

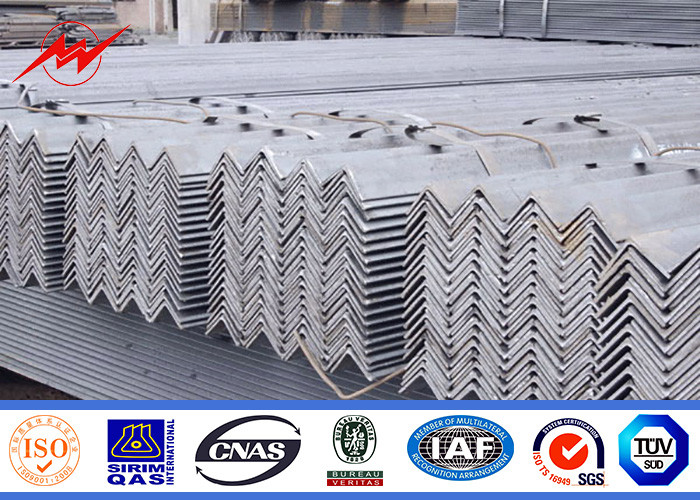

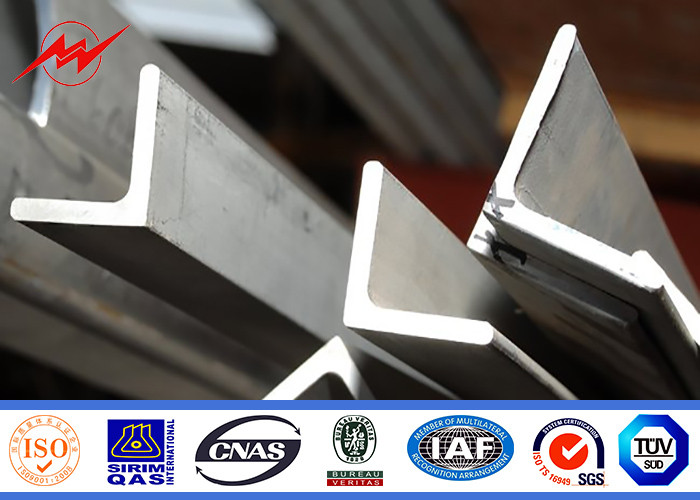

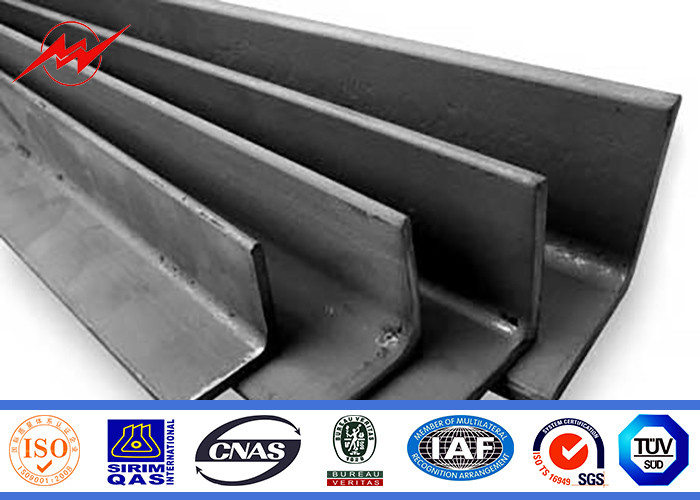

Hot Rolled Mild Structural Angle Steel 100x100 For Construction
angle steel is commonly known as angle iron, both sides perpendicular angle steel shape of strip steel. angle steel can be divided into equilateral angle steel and unequal angle steel. Wide angle steel two sides are equal. angle steel's specifications to the border thickness x width x thickness of mm number.
Specifications:
|
Standard sectional dimension mm *mm |
Weight kg/m |
Standard sectional dimension mm *mm |
Weight kg/m |
|
25*25*3 |
1.12 |
90*90*6 |
8.28 |
|
30*30*3 |
1.36 |
90*90*7 |
9.59 |
|
40*40*3 |
1.83 |
90*90*10 |
13.3 |
|
40*40*5 |
2.95 |
100*100*7 |
10.7 |
|
45*45*4 |
2.74 |
100*100*10 |
14.9 |
|
45*45*5 |
3.38 |
100*100*13 |
19.1 |
|
50*50*4 |
3.06 |
120*120*8 |
14.7 |
|
50*50*6 |
4.43 |
130*130*9 |
17.9 |
|
60*60*4 |
3.68 |
130*130*12 |
23.4 |
|
60*60*5 |
4.55 |
130*130*15 |
28.8 |
|
60*60*6 |
5.37 |
150*150*12 |
27.3 |
|
65*65*6 |
5.91 |
150*150*15 |
33.6 |
|
65*65*8 |
7.66 |
150*150*19 |
41.9 |
|
70*70*6 |
6.38 |
175*175*12 |
31.8 |
|
75*75*6 |
6.85 |
175*175*15 |
39.4 |
|
75*75*9 |
9.96 |
200*200*15 |
45.3 |
|
80*80*6 |
7.32 |
200*200*20 |
59.7 |
|
80*80*7 |
8.48 |
200*200*25 |
73.6 |
application:
angle steel is widely used in a variety of architectural and engineering structures, such as beams, bridges, transmission towers, hoisting and conveying machinery, ships, industrial furnaces, towers, containers and warehouses .
Our service:
1. Reply your inquiry in 24 working hours.
2. Experienced staffs answer all your questions in fluent English.
3. Customized design is available. UEM&UBM are welcomed.
4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
5. Special discount and protection of sales are provided to our distributor.
6 Sample: We can send out sample for test in one week if the order quantity is big enough. But the shipment charges is usually paid by your side, the charges will be rebounded when we have formal order.
7. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature. Welcome to contact us or visit our company.
