Hot - Dip Galvanized Engineering steel Street Light Poles 12M 30w 120w

Trung Quốc Hot - Dip Galvanized Engineering steel Street Light Poles 12M 30w 120w nhà cung cấp
Hot - Dip Galvanized Engineering steel Street Light Poles 12M 30w 120w nhà cung cấp Hot - Dip Galvanized Engineering steel Street Light Poles 12M 30w 120w nhà cung cấp Hot - Dip Galvanized Engineering steel Street Light Poles 12M 30w 120w nhà cung cấp Hot - Dip Galvanized Engineering steel Street Light Poles 12M 30w 120w nhà cung cấp Hot - Dip Galvanized Engineering steel Street Light Poles 12M 30w 120w nhà cung cấp

Hình ảnh lớn :  Hot - Dip Galvanized Engineering steel Street Light Poles 12M 30w 120w

Thông tin chi tiết sản phẩm:

Place of Origin: Yixing,Jiangsu,China
Hàng hiệu: Milky Way
Chứng nhận: ISO9001
Model Number: Street Light Poles

Thanh toán:

Minimum Order Quantity: 1 Poles
Giá bán: Negotation
Packaging Details: Naked Package or customerized
Delivery Time: 10-30 working days after received your payment
Payment Terms: L/C, T/T
Supply Ability: 30,000 Tons per month
Contact Now
Chi tiết sản phẩm
Code: Street Light Poles Thickness: 2.5mm to 20mm
Light Wattage: 30w to 120w Arm Type: single arm or twin arms
Surface Treatment: galvanization and powder coating Pole Shape: Round,octagonal
Average gavanzation thickness: according to the pole thickness

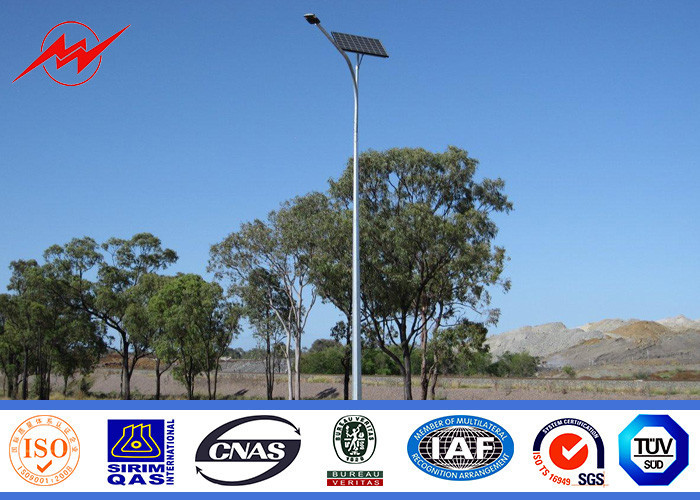

7m height solar street light poles galvanized for street highway lighting



Quick Details for Street Lighting Pole



Item No

7M solar street light poles

Height

7m

Thickness

2.5mm to 30mm

Shape

Conical,round,octagonal,dodecagon

Material

Q345B/A572,minimum yield strength>=345n/mm2

Q235B/A36,minimum yield strength>=235n/mm2

Q460, minimum yield strength>=460n/mm2

Wind Design

32 m/s

Suit for

street way,Airport,seaport,plaza,stadium,square,highway





Quick Information



Material: Steel, Q235,

Hot-Dip Galvanized. Plastic Coated, Rust Proof,

With Arm , Bracket, Flange, Fittings, Cable, Etc

Resistant to Wind: ≥150KM/H

Lifespane: 20-25years



MATERIAL



Material used to fabricate the pole components will be in accordance of international standards and as per the project specifications.

Main Material is Q235,Q345,Gr65 or as specified in the customer specification.

Hot - Dip Galvanized Engineering steel Street Light Poles 12M 30w 120w

FINISHING



Shaft, Base plate, Arm Bracket and other accessories are hot dip galvanized according to BS EN 1461 and its recent revisions, the minimum average coating thickness is according to BS EN 1461, or as per the customer requirements, but not more than 70 microns average.



No welding, cutting or drilling is done after galvanizing.



The anchor bolts including nuts and washers are rough black or hot dip galvanised according to ASTM A 123 as per customized requirement.





SHAPE



1.Height:The street lighting Poles of heights from 4m up to 20m covering almost all of the outdoor street lighting requirements, are usually made out of tapered steel shafts with octagonal or conical shape, with dimensions complying with the design structural analysis, international standards requirements, and as per customer requirements.



2.Pole Sections: Only poles with heights up to 12 meters are made from one shaft segment. Poles up to 20m in height are made from two segments with minimum overlap length of 1.5 times the diameter of bottom of the upper segment.



3.Shafts: Shafts are made from steel sheet folded to the required shape and welded longitudinally by automatic arc welding machine.

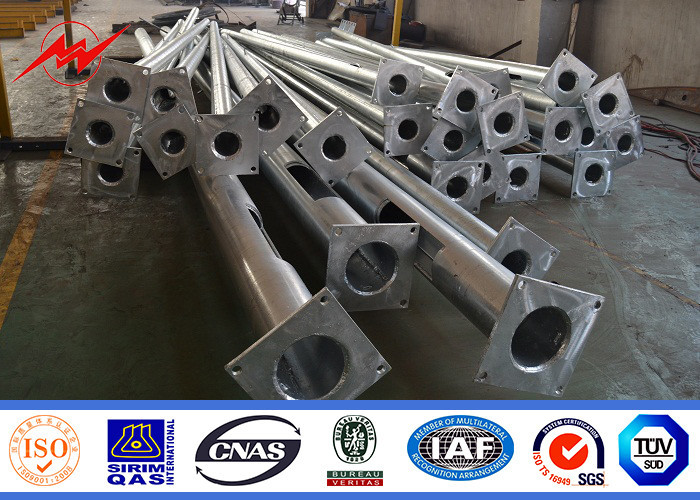

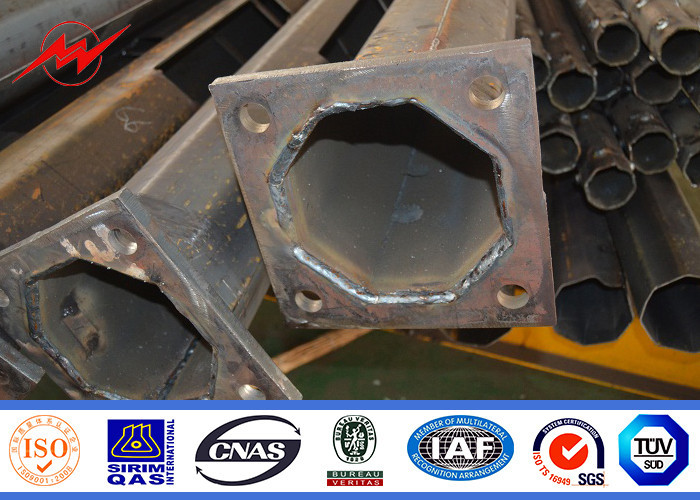

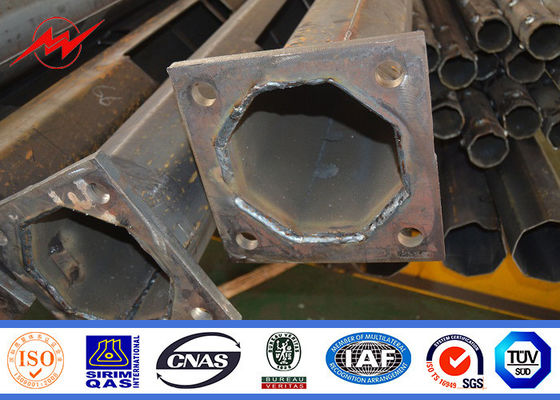

4.Base Plate: Base plate is square in shape with slotted holes suitable for anchor bolts. Base plate is welded to the bottom of the shaft by double fillet weld, according to International standards.



5.Brackets: The brackets to carry the light fittings are in shape and dimensions complying with the customer requirements and the specifications of the light fittings. Shaft top is equipped with nuts welded to the shaft  as shown on our drawings.



6.Anchor Bolt: Anchor bolts to fix the base plate to the concrete foundation are supplied with the required nuts and washers as per the structural analysis.



7:Service Door: Door opening size and location is as per the customer requirements and its complying with the dimensions of the cut-out. Door opening is reinforced to maintain shaft strength.



8.Lamp:LED light is available or specified in the customer requirement.

Hot - Dip Galvanized Engineering steel Street Light Poles 12M 30w 120w



Company:



Jiangsu Milky Way specialize in offering a wide range of Octagonal Poles that is used in street light poles. These poles are fabricated using high grade raw material like steel Q235 and latest technology as per the international quality standards. Moreover, these are available in customized options to suit the varied requirements of the clients.

Hot - Dip Galvanized Engineering steel Street Light Poles 12M 30w 120w
