3 Sections 30m 6mm Electricity Pole Telepower Pole ISO Certificate

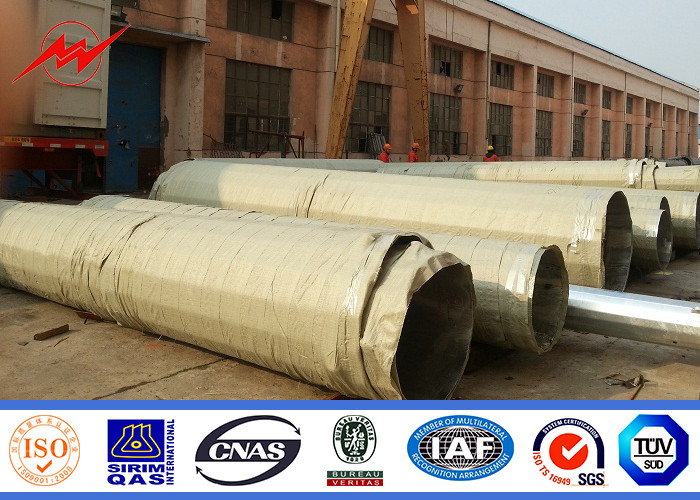

Hình ảnh lớn : 3 Sections 30m 6mm Electricity Pole Telepower Pole ISO Certificate

Thông tin chi tiết sản phẩm:

Place of Origin:	China
Hàng hiệu:	MilkyWay
Chứng nhận:	ISO9001/BV/
Model Number:	Steel Electric Power Poles

Thanh toán:

Minimum Order Quantity:	1 pcs
Giá bán:	Negotiation
Packaging Details:	As customer request
Delivery Time:	20 working days after received your payment
Payment Terms:	T/T, L/C at sight
Supply Ability:	300pcs per day

Tiếp xúc

Chi tiết sản phẩm

Product Name:	Steel Electric Power Poles	Application:	Power Distribution
Surface treatment:	HDG Powder coating	Certificate:	ISO
Thickness:	6mm	Dimenstion torlance:	+- 2%
Điểm nổi bật:	electric utility poles , steel utility poles

3 Sections 30m 6mm Steel Electric Power Poles with Cross Arm

Specification:

Height	From 9 meter to 100 meter
Suit for	Electric Power Transmission and Distribution
Shape	Polygonal or Conical
Material	Normally Q345B/A572, Minimum Yield Strength ≥ 345 N/mm² Q235B/A36, Minimum Yield Strength ≥ 235 N/mm² As well as Hot rolled coil from ASTM A572 GR65, GR50, SS400
Power Capacity	10kV to 220kV
Tolerance of the dimension	According to client’s requirement.
Surface treatment	Hot dip galvanized Following ASTM A 123, or any other standard by client required.
Joint of Poles	Slip joint, flanged connected
Standard	ISO 9001:2008
Length of per section	Within 14 meter once forming
Welding Standard	AWS (American Welding Society ) D 1.1
Thickness	1 mm to 36mm
Production Process	Raw material test → Cutting →bending →Welding (longitudinal ) →Dimension verify →Flange welding →Hole drilling →sample assemble → surface clean→ Galvanization or powder coating ,painting → Recalibration →Packages
Packages	Packing with plastic paper or according to client’s request.

Production Flow:
The production process:Row material test → Cutting →Molding or bending →Welding (longitudinal )→Dimension verify →Flange welding→Hole drilling →Calibration → Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Packages

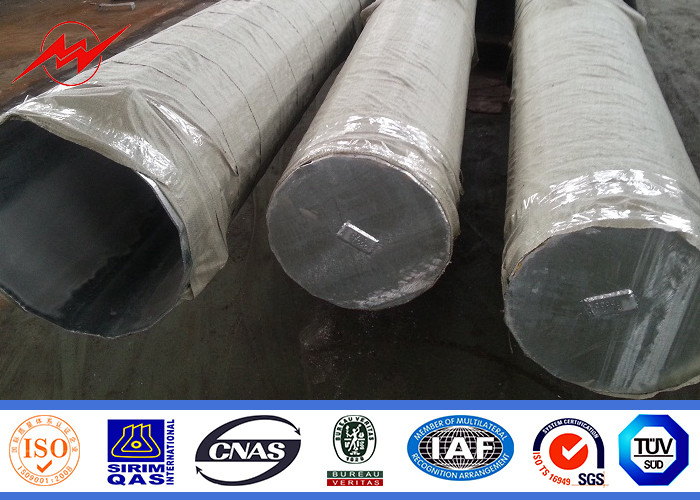

3 Sections 30m 6mm Electricity Pole Telepower Pole ISO Certificate 0

Galvanization
Standard:NFA91121
Average thickness of the galvanization:Not less than 86μm.

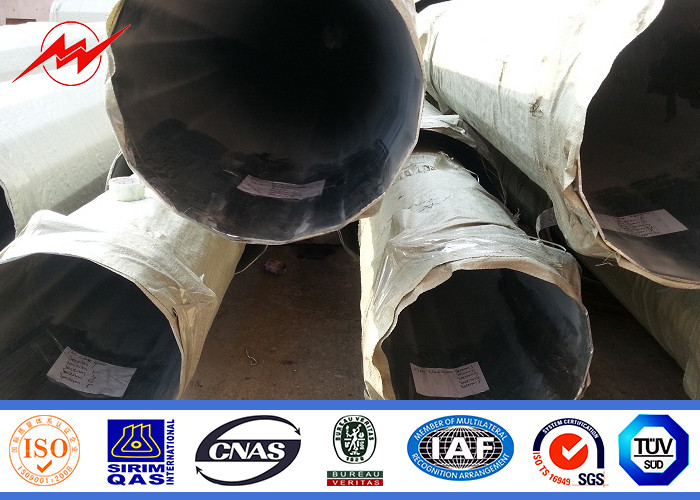

3 Sections 30m 6mm Electricity Pole Telepower Pole ISO Certificate 1

Manufacture Tolerance
-Component Length:-25mm to 75mm
-Straightness:2mm/m
-Twisting degree:1°per 3 meters length
-Ovalisation:Maximum is 3%
-The average diameter:+/-0.5%
-Slip length:+/-150mm

Company Introduction:
Jiangsu Milky Way Steel Poles which established on 1991 is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .
Our Company has 24 years experience on producing the steel poles including the transmission power pole,street light pole,high mast pole and so on.
We exported to oversea countries since 1991 and our products have been delivered to more than 70 countries and areas ,including America,Australia ,Russia ,Germany ,Span,Philippines ,Malaysia,Africa and so on.
We are the supplier of many big project in many countries,like the street light pole of Dubai Tower.the high mast pole for Sochi Winter Olympic Game and so on.

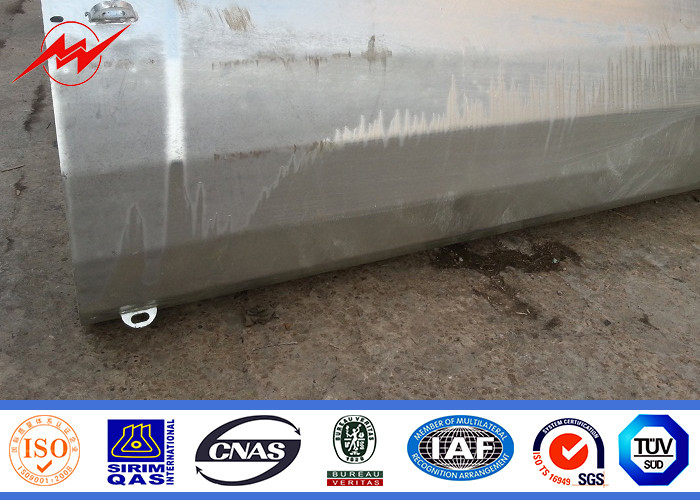

3 Sections 30m 6mm Electricity Pole Telepower Pole ISO Certificate 2
