20M Height HPS Plaza High Mast Tower , Commercial Outdoor Light Poles

Trung Quốc 20M Height HPS Plaza High Mast Tower , Commercial Outdoor Light Poles nhà cung cấp
20M Height HPS Plaza High Mast Tower , Commercial Outdoor Light Poles nhà cung cấp 20M Height HPS Plaza High Mast Tower , Commercial Outdoor Light Poles nhà cung cấp 20M Height HPS Plaza High Mast Tower , Commercial Outdoor Light Poles nhà cung cấp 20M Height HPS Plaza High Mast Tower , Commercial Outdoor Light Poles nhà cung cấp

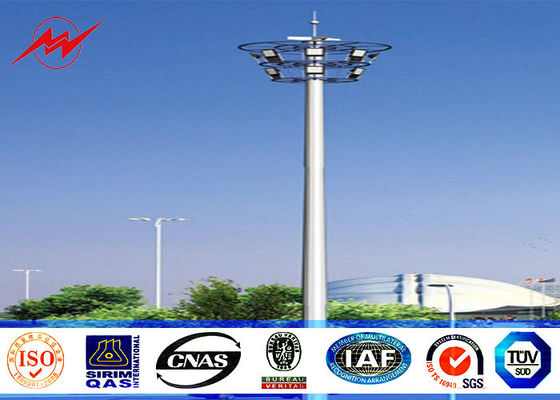

Hình ảnh lớn :  20M Height HPS Plaza High Mast Tower , Commercial Outdoor Light Poles

Thông tin chi tiết sản phẩm:

Place of Origin: Yixing,Jiangsu,China
Hàng hiệu: Milky Way
Chứng nhận: ISO9001
Model Number: High Mast Light

Thanh toán:

Minimum Order Quantity: 1 Poles
Giá bán: Negotation
Packaging Details: Naked Package or naked
Delivery Time: 10-30 working days after received your payment
Payment Terms: L/C, T/T
Supply Ability: 30,000 Tons per month
Contact Now
Chi tiết sản phẩm
Item Name: 20M Height HPS High Mast Light Pole Material: Steel,Q235,Q345,Gr65
Height: 20m to 50m Type: Ladder or Lifting system
Surface Finished: hot dip galvanized Application: Street way,highway,airport,Stadium

20M Height HPS High Mast Light Pole with lifting system for plaza lighting



Quick Information

High-mast lighting installations are often located where today’s most busy expressways merge or intersect. Milky Way's tapered steel high-mast poles also support other large-area lighting applications, such as those found at busy ports and in heavy-industry zones. In all these applications, safety is paramount and technical design expertise is essential.



Quick Product Description-High Mast Lighting Pole



Item 30 MTR 25 MTR
Material Construction Q345(Gr50) Q345(Gr50)
No. of Longitudinal Welds Single/Double Single/Double
Cross section of mast in polygon((No. of Sides) Octagonal,dodecagon,hexadecagon Octagonal,dodecagon,hexadecagon
Thickness 4mm,6mm,8mm,10mm or customized design 4mm,6mm,8mm,10mm or customized design
Individual Section’s Length 10500mm 8833mm
Base & Top dia (OAF) 520/200mm 485/200mm
Thickness of galvanization(Average) 86 Microns 86 Microns
Size of opening door at base 360 x 1400 mm 360 x 1400 mm
Size of base plate diameter 700 mm 685 mm
Size of base plate thickness 32 mm 32 mm
Number of foundation bolts 16 12
Bolt diameter 28 mm 28 mm




Details:

We offer a comprehensive range of High Mast Poles that is used in area lighting. High mast lighting is preferred over conventional lighting, because it can achieves very large space to height ratios. It can illuminate large areas without the need for numerous lighting columns.

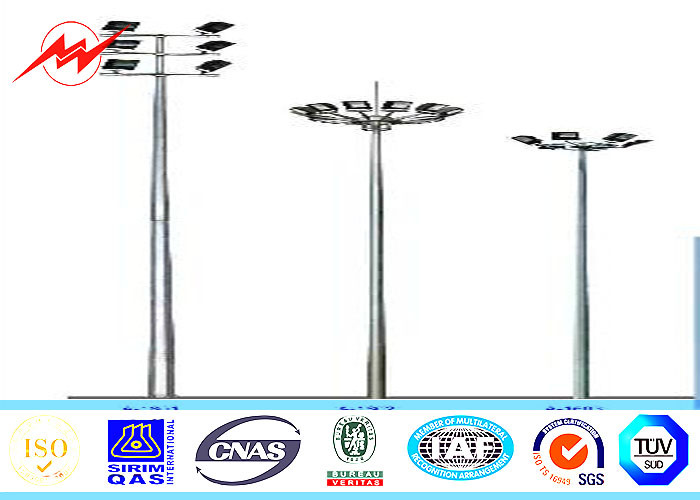

Light Type:



20M Height HPS Plaza High Mast Tower , Commercial Outdoor Light Poles



ACCESSORIES



Mast with continuous tapered polygonal cross section have high load bearing strength oscillation due to wind speed and related stress are fully taken care in the design.



IMPORTANT TECHNICAL FEATURES



FIXED TYPE HEAD FRAME :

Designed with larger Dia. Non corrosive aluminum pulley system for longer life and perfect balancing.



WINCHES :

Winch designed with gear ration 53:1 and without break of clutches. These are self lubricated for sustained trouble free life.



FINISH :

The complete mast with component is fully hot dip galvanized for longer life.



Workshop



20M Height HPS Plaza High Mast Tower , Commercial Outdoor Light Poles

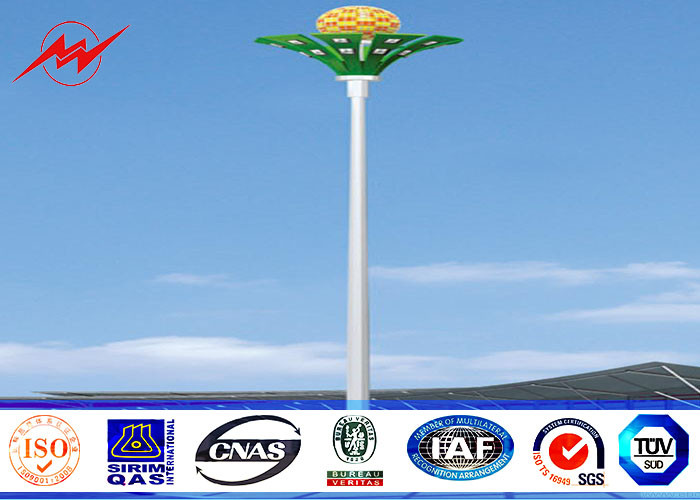

LANTERN CARRIAGE :

We specialize in custom built design, standard lighting design and various types and shapes. The lantern carriage is supported with three numbers flexible 6 sq. mm. S.S. wire ropes from the distributors that can be elevated/lowered electrically and mechanically.

20M Height HPS Plaza High Mast Tower , Commercial Outdoor Light Poles



OPTIONAL :

The most can be supplied with timer / photo sensor panel for auto control.



Options:

• The High Mast is available in various length, diameters and hole arrangements.

• Multisided or Tapered round variations.

• The High Mast is available in base plate mounted or direct bury installed.

• All High Masts are hot dip galvanized according to EN 1461, and can be powder coated or painted.

• Additional service doors.

• Pre-drilling for removable safety steps is available.





Company Introduction



Established in the year 1991, we “Jiangsu Milky Way” are based in Jiangsu, China.



We are the one of the leading manufacturers and suppliers of a wide range of electric equipments like:

lighting fixtures, poles, luminaries & other accessories that include: High Mast Poles, Octagonal Poles, Decorative Poles, Swaged Poles & Bracket Design, Commercial & Decorative Luminaries, CFL Luminaries, Industrial Highway Luminaries, Street Light Luminaries, Post Top Luminaries, Flood Light Luminaries, Bulkhead Luminaries, Plant Light Luminaries, Accessories.



The entire range of equipment is manufactured using superior quality raw material and ensures reliability.

These products are extensively used in Offices, Schools & Colleges, Residential Complexes, Resorts, Hotels, Industries, Highways, Petrol Pumps, Yard Lighting & Stadiums.
