13.8KV Philippines Electrical Power Steel Tubular Pole Galvanized 30FT Height

Trung Quốc 13.8KV Philippines Electrical Power Steel Tubular Pole Galvanized 30FT Height nhà cung cấp
13.8KV Philippines Electrical Power Steel Tubular Pole Galvanized 30FT Height nhà cung cấp 13.8KV Philippines Electrical Power Steel Tubular Pole Galvanized 30FT Height nhà cung cấp

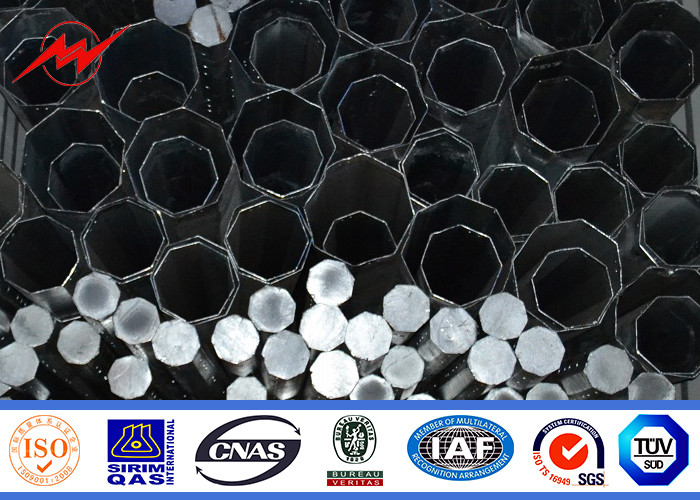

Hình ảnh lớn :  13.8KV Philippines Electrical Power Steel Tubular Pole Galvanized 30FT Height

Thông tin chi tiết sản phẩm:

Place of Origin: Yixing,Jiangsu,China
Hàng hiệu: Milky Way
Chứng nhận: ISO,BV
Model Number: Steel Tubular Pole

Thanh toán:

Minimum Order Quantity: 1 Poles
Giá bán: Negotation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: L/C, T/T
Supply Ability: 300pcs per day
Tiếp xúc
Chi tiết sản phẩm
Product Name: 13.8KV Philippines Galvanized Electrical Power Steel Tubular Pole Design: Customer Design
Height: 30FT Voltage: 13.8KV
Treatment: Galvanization Appearance: Tubular,triangular,angular,lattice
Welding standard: AWS D 1.1 Galvanization standard: ASTM A 123
Điểm nổi bật:

floodlight pole

,

commercial light poles

13.8KV Philippines Galvanized Electrical Power Steel Tubular Pole



Milky Way fabricates a variety of poles for the utility industry. These steel poles are designed and tested to ensure bend resistance, load capacity, and height all meet the requirements for the application of the tower. Anchored and/or direct embed styles available.





General Notes:



Manufacturer drawings available for all poles

Poles can be modified to any configuration

Transmission and distribution arms available for any requirements

Additional surplus poles are in the process of being catalogued and added to this list

Call us to sell your surplus steel poles.

Additional 30 eliptical poles with thick shaft plate available for tight areas, especially behind sidewalks.



Technical Data Sheet(F=5KN)



Dimension 10m 11m 11.8m 13m 14m 16m 18m
DI(mm) 180 180 180 180 180 180 180
D2(mm) 360 380 400 400 410 445 475
T(mm) 3 3 3 3 3.5 3.75 3.75
h(m) 1.6 1.8 1.9 2.1 2.3 2.6 3









Standard Accessory



-Top plate

-Base plate

-Bottom strip

-Standard hole

-Climbing rung

-Anchor bolt

-Bitumen protection

-Painted marking

-Removable ladder



Available Foundation Types



Direct Embedment

Anchor Bolt/Base Plate

Vibratory Steel Caisson



Available Finishes



Galvanized per ASTM A123

Paint over galvanized,paint over black steel

Powder Coating



Standard Features of in-ground and base plate mounted



In-Ground Mounted:



12-sided pole shaft

Welded top cap

Mounting holes (to your specification if required)

Identification plate

M12 earth point 250mm above the nominal ground line

M24 nut 250mm above the nominal ground line (to assist lifting)

Additional in-ground corrosion protection 200mm above to 400mm below the nominal ground line

Anti-sink straps

Hot dip galvanised finish



Base Plate Mounted:



12-sided pole shaft (40kN to 80kN)

16-sided pole shaft (100kN & 120kN)

Welded top cap

Mounting holes (to your specification if required)

Identification plate

M12 earth point 250mm above the pole base

Two lifting gussets on the base plate

Anchor bolts, templates, nuts & washers

Hot dip galvanised finish



Product Gallery

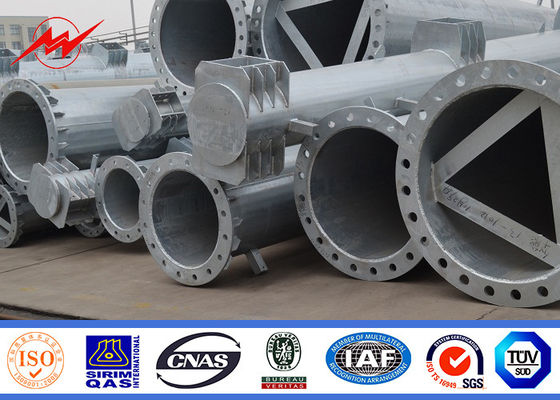

13.8KV Philippines Electrical Power Steel Tubular Pole Galvanized 30FT Height 0



The information to inquiry or purchase



-Steel pole height and force

-Cross arm type and length,the position to install in the steel pole

-The method to fix the cross arm(use bolt to connect or use one or two template to weld in the steel pole to install the cross arm)

-Safety factor of the steel pole

-Wind speed

-Type of climbing rung

-Destination port

-Other.











Company Introduction:



Jiangsu Milky Way Steel Poles which established on 1991 is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .

Our Company has 24 years experience on producing the steel poles including the transmission power pole,street light pole,high mast pole and so on.

We exported to oversea countries since 1991 and our products have been delivered to more than 70 countries and areas ,including America,Australia ,Russia ,Germany ,Span,Philippines ,Malaysia,Africa and so on.

We are the supplier of many big project in many countries,like the street light pole of Dubai Tower.the high mast pole for Sochi Winter Olympic Game and so on.
